The Spark Resistant Push Beam Trolley (2T) from OZ Lifting Products delivers exceptional safety and durability for hazardous environments. Certified under ATEX94/9/EC and Machinery Directive 2006/42/EC, it meets an explosion-proof rating of EX II2 GD c IIIC T135°C for reliable use in Zone 1 & 2 (gas) and Zone 21 & 22 (dust) classified areas. With a 2-ton capacity, this trolley provides smooth and secure material handling for explosive atmospheres, ensuring top performance and compliance with international safety standards.

Product Description

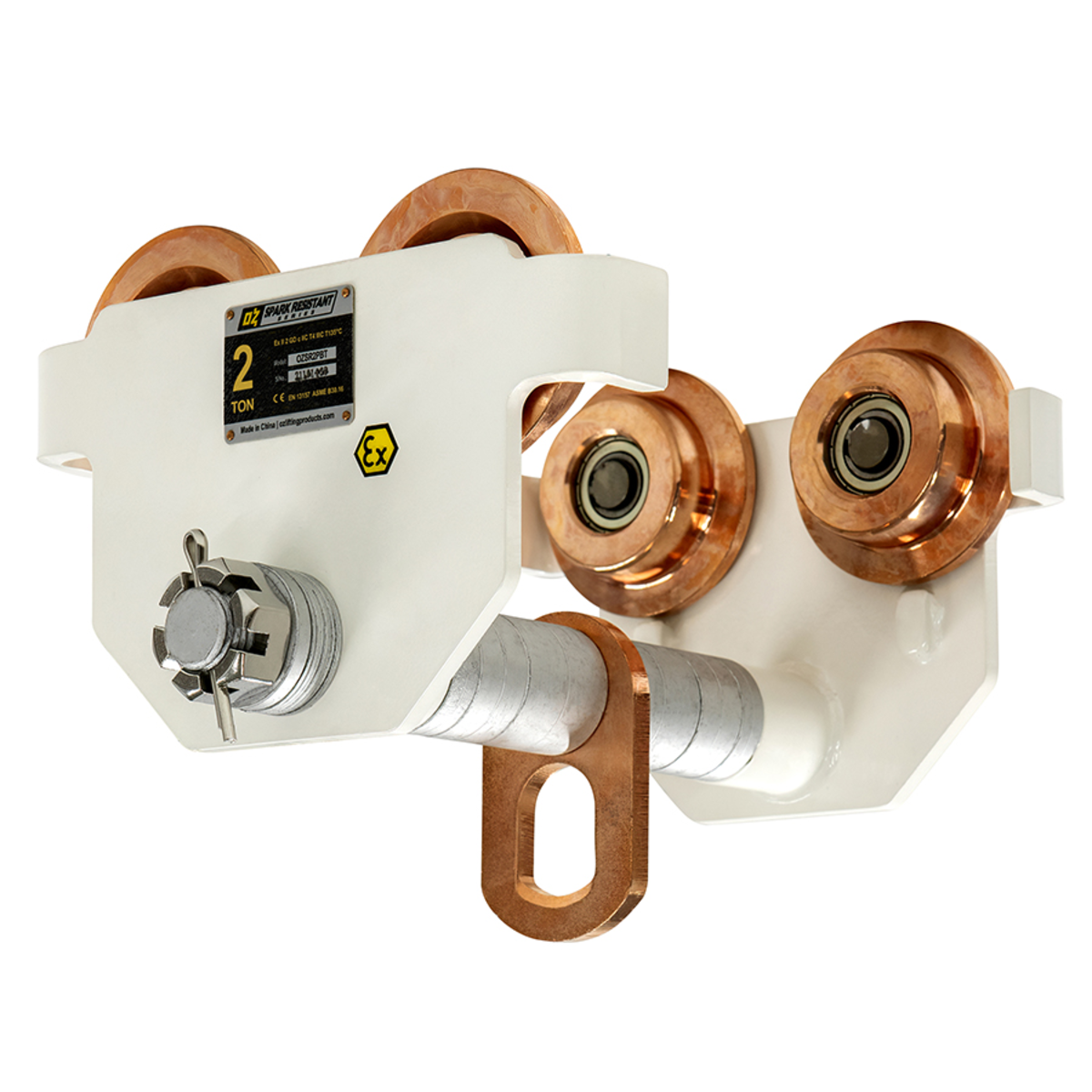

When safety is paramount in hazardous work environments, the OZSR2PBT Spark Resistant Push Beam Trolley (2 Ton) from OZ Lifting Products stands out as a trusted solution for secure, spark-free load handling. Designed for industries where explosive gases or dusts are present, this trolley ensures safe, compliant, and efficient lifting operations in accordance with ATEX94/9/EC and the Machinery Directive 2006/42/EC.

Engineered for explosion-proof protection rated EX II2 GD c IIIC T135°C, the OZSR2PBT is approved for Zone 1 & 2 (gas) and Zone 21 & 22 (dust) environments. These include chemical manufacturing, oil and gas refineries, grain processing plants, and pharmaceutical production facilities, where the presence of flammable materials demands the highest levels of safety and reliability.

Built with spark-resistant bronze and brass components, this push beam trolley eliminates the risk of sparks caused by metal-to-metal contact. Its corrosion-resistant stainless steel frame enhances durability and extends service life even in demanding industrial conditions. The manual push design allows operators to move heavy loads along beams safely and precisely, without requiring electrical power—an essential feature in explosion-risk zones.

With a 2-ton capacity, the OZSR2PBT handles medium to heavy loads effortlessly, offering smooth travel thanks to precision-machined bronze wheels and sealed bearings. The adjustable flange width makes it compatible with a wide range of I-, S-, and W-beams, providing flexibility for various installations. Additionally, anti-drop plates and side guards improve operator safety by preventing derailment during use.

Every detail of this trolley reflects OZ Lifting Products’ dedication to safety, innovation, and performance. It’s designed for reliability and low maintenance, reducing downtime while ensuring compliance with international explosion-proof standards. Whether in a refinery, paint booth, or dust-prone production area, the OZSR2PBT provides peace of mind and dependable operation under the most demanding conditions.

Specifications

• Model: OZSR2PBT

• Capacity: 2 Ton (4,400 lbs)

• Explosion-Proof Rating: EX II2 GD c IIIC T135°C

• Compliance: ATEX94/9/EC and Machinery Directive 2006/42/EC

• Zones of Use: Zone 1 & 2 (Gas) / Zone 21 & 22 (Dust)

• Construction: Spark-resistant bronze and brass components

• Frame Material: Stainless steel for corrosion resistance

• Operation Type: Manual push beam trolley

• Beam Compatibility: I-, S-, and W-beams

• Flange Width Adjustment: Tool-free adjustable design for quick installation

• Wheels: Bronze alloy for smooth, spark-free operation

• Bearings: Sealed precision bearings for long-lasting performance

• Safety Features: Anti-drop plates, spark-resistant design, explosion-proof compliance

• Corrosion Resistance: Excellent—ideal for humid, chemical, and clean environments

• Maintenance: Low-maintenance design with long service life

• Applications: Oil & gas, chemical plants, refineries, paint shops, grain handling, and pharmaceuticals

• Manufacturer: OZ Lifting Products

• Country of Origin: USA
