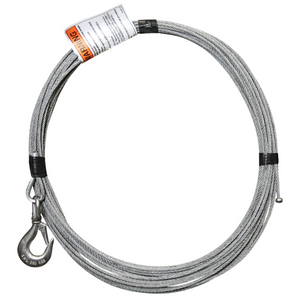

The OZGAL.19-80B – 3/16″ x 80 ft galvanized wire rope assembly with a ball end and swivel hook with latch. Designed for use with manual brake winches, this cable offers reliable installation, extended reach, and corrosion resistance in demanding environments.

Product Description

The OZGAL.19-80B from OZ Lifting Products is built for long-span lifting and pulling operations that demand strength, safety, and reliability. This 3/16″ x 80 ft galvanized wire rope assembly delivers outstanding performance in industrial, construction, and marine environments where corrosion resistance and long service life are essential.

Manufactured with high-quality galvanized steel, this cable provides superior resistance against rust, moisture, and abrasion. Its zinc coating forms a durable barrier, protecting the wire from environmental damage and extending its operational lifespan. This makes it ideal for outdoor and high-humidity conditions.

The ball end fitting ensures secure attachment to manual brake winches, allowing for quick setup and added safety during operation. On the opposite end, the swivel hook with safety latch provides a dependable connection point and rotates freely to reduce cable twisting and wear. This design enhances operational smoothness and ensures stable, consistent performance even under load.

With an 80-foot length, the OZGAL.19-80B is ideal for applications requiring extended reach — from lifting equipment across long distances to tensioning systems in larger setups. The flexible 7×19 wire rope construction combines durability with pliability, enabling smooth spooling and reduced fatigue over repeated use.

Engineered for reliability, the OZGAL.19-80B offers easy installation, secure load control, and long-lasting protection against corrosion. Whether you’re upgrading your winch cable or outfitting new lifting equipment, this galvanized wire rope assembly ensures dependable performance every time.

Specifications

• Model: OZGAL.19-80B

• Cable Diameter: 3/16″ (approximately 4.76 mm)

• Cable Length: 80 ft (approximately 24.4 m)

• Material: Galvanized steel wire rope

• Construction: 7×19 strand configuration for strength and flexibility

• Finish: Zinc-coated for corrosion protection

• Fittings:

  • Ball end for secure manual brake winch attachment

  • Swivel hook with safety latch for load connection

• Estimated Breaking Strength: ~4,200 lbs (typical for 3/16″ 7×19 cable)

• Working Load Limit (WLL): Determined by safety factor (typically 4:1 or 5:1)

• Temperature Range: –40°F to +300°F (–40°C to +149°C)

• Applications:
  • Manual brake winches
  • Industrial lifting and pulling
  • Construction, marine, and outdoor use
  • Equipment positioning and tensioning

• Key Features:
  • Long 80 ft reach for extended applications
  • Corrosion-resistant galvanized finish
  • Smooth and flexible 7×19 construction
  • Swivel hook minimizes twisting during use
  • Ball end fitting for quick, safe installation
