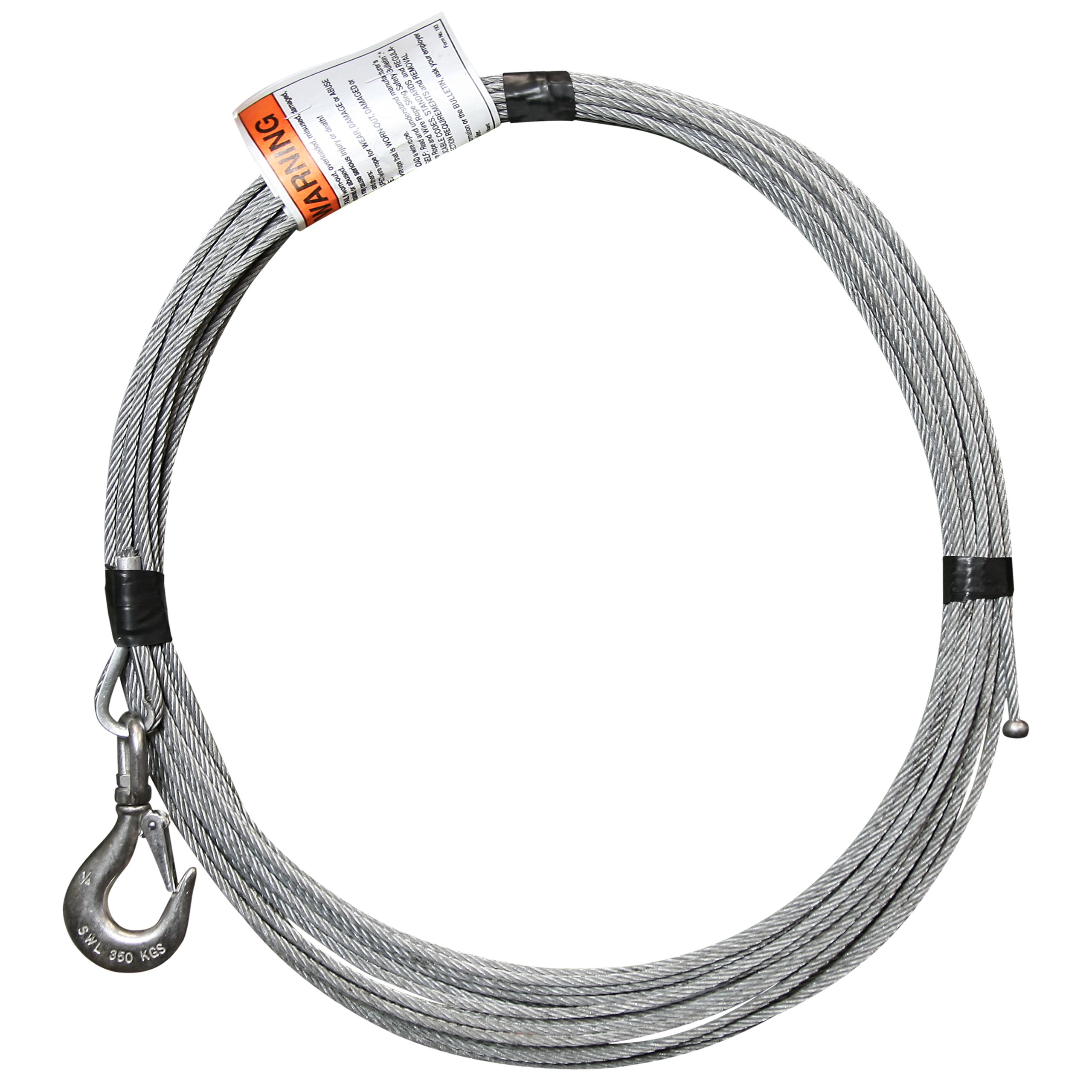

The OZGAL.19-50B is a 3/16″ × 50 ft galvanized wire rope assembly featuring a ball end fitting and a swivel hook with safety latch—designed for seamless integration with manual brake winches, ensuring safe, reliable installations and durability in challenging environments.

Product Description

When your project requires extended reach and dependable performance, the OZGAL.19-50B galvanized cable assembly delivers. This 50-foot, 3/16-inch diameter wire rope is built to perform across tough environments—whether indoor or out—with a galvanized finish to resist corrosion and preserve structural strength over time.

One end of the assembly features a ball end fitting, tailored for use with manual brake winches. This fitting allows for quick and secure mounting without the need for additional shackles or hardware, helping reduce installation time and potential failure points. On the other end, a swivel hook with safety latch ensures your load stays firmly attached—even under shifting or twisting conditions—and allows rotation to prevent tire-ing or kinking of the rope during use.

Galvanized wire rope, especially in 7×19 construction, provides a good combination of flexibility and strength. With galvanization, a protective zinc coating guards against rust and oxidative decay, making this assembly well suited for environments exposed to moisture, salt, or industrial contaminants.

The generous 50-foot length gives you extended reach for large lifting or pulling tasks, reducing the need for splicing or multiple shorter lengths. This makes the OZGAL.19-50B ideal for rigging, tensioning, hoisting, or anchoring across construction sites, marine settings, facilities maintenance, and outdoor applications.

Durability and safety are key to this design. The galvanized finish, robust fittings, and rugged rope construction all contribute to long service life and over-engineered reliability. When properly matched to your winch and load requirements, the OZGAL.19-50B offers a straightforward, high-performing cable solution.

Specifications

• Model: OZGAL.19-50B

• Cable Diameter: 3/16″ (≈ 4.76 mm)

• Length: 50 ft (≈ 15.24 m)

• Rope Construction: 7×19 galvanized wire rope (flexible construction)

• Finish: Zinc galvanization to resist corrosion

• Ball End Fitting: Designed for manual brake winch attachment

• Swivel Hook: With safety latch, allowing rotation and secure load grip

• Estimated Breaking Strength: Approx. 4,200 lbs (for typical 3/16" 7×19 wire rope)

• Working Load Limit (WLL): Dependent on safety factor—typically ~1/4 to 1/5 of breaking strength

• Operating Temperature: –40 °F to +300 °F (–40 °C to +149 °C)

• Applications:
   • Manual winching and hoisting
   • Rigging and tension lines
   • Industrial, marine, and outdoor use
   • Maintenance, repair, and equipment positioning
   • Long-span cable deployment

• Key Features:
   • Galvanized for long-term corrosion protection
   • Flexible 7×19 rope for smooth operation
   • Ball end simplifies winch connection
   • Swivel hook avoids rope twist and secures load
   • Extra length for extended reach applications
