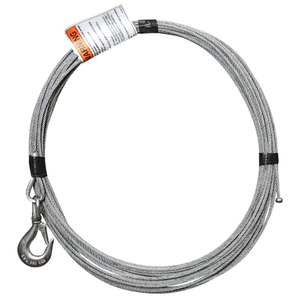

The OZGAL.19-20B is a 3/16" × 20 ft galvanized wire rope assembly featuring a ball end fitting and a swivel hook with safety latch. Specifically engineered for use with manual brake winches, it ensures quick installation, secure load handling, and reliable performance in demanding environments.

Product Description

When your application involves pulling, lifting, or anchoring loads in outdoor or industrial settings, you need a cable assembly that delivers both strength and corrosion resistance. The OZGAL.19-20B wire rope assembly is designed to meet those needs. Constructed from 3/16-inch galvanized cable, this 20-foot assembly is built to resist rust and withstand exposure to the elements, so it retains performance even under challenging conditions.

On one end, you have a ball end fitting—ideal for connection to manual brake winches. This configuration ensures secure engagement and makes installation faster and more straightforward. On the other end, a swivel hook with safety latch offers flexibility in load alignment and prevents accidental disconnection during operation. The swivel feature allows the hook to rotate 360°, accommodating twisting loads without twisting the cable.

Galvanized wire rope constructions like 7×19 offer both flexibility and fatigue resistance, making them suitable for repeated use where bending is involved. Some versions of 3/16" galvanized wire rope are rated for a breaking strength of ~4,200 lbs, with a recommended safe working load significantly lower depending on the factor of safety.

The OZGAL.19-20B is ideal for use in applications such as:

• Manual winch lift systems

• Anchor and tie-down lines

• Light-duty winching tasks

• Maintenance, repair, and rigging tasks

• Outdoor installation requiring corrosion protection

Because all components are galvanized or stainless in nature, the assembly resists rust, making it suitable for marine, coastal, or wash-down environments. The inclusion of the ball end fitting is especially useful where quick or modular reattachment to winches is required.

Specifications

• Model: OZGAL.19-20B

• Cable Diameter: 3/16 inch (≈ 4.76 mm)

• Length: 20 ft (≈ 6.10 m)

• Construction: Likely 7×19 strand galvanized wire rope (flexible and fatigue-resistant)

• Ball End Fitting: For connection to manual brake winches

• Hook: Swivel hook with safety latch

• Finish: Galvanized for corrosion resistance

• Approximate Breaking Strength: ~4,200 lbs (depending on rope grade)

• Recommended Working Load Limit: A portion of breaking strength (depends on safety factor typical in your industry)

• Operating Temperature Range: –40 °F to +300 °F (–40 °C to +149 °C) (typical range for galvanized steel ropes)

• Applications: Manual winch assemblies, light-duty lifts, rigging, anchor or tie-down lines, outdoor or corrosive environments

• Country / Origin: Manufactured to integrate with OZ Lifting Products systems

• Key Features:

  • Corrosion-resistant due to galvanized finish

  • Flexible design suited for frequent bending

  • Swivel hook for freedom of movement

  • Ball end for secure, quick mounting on winches
