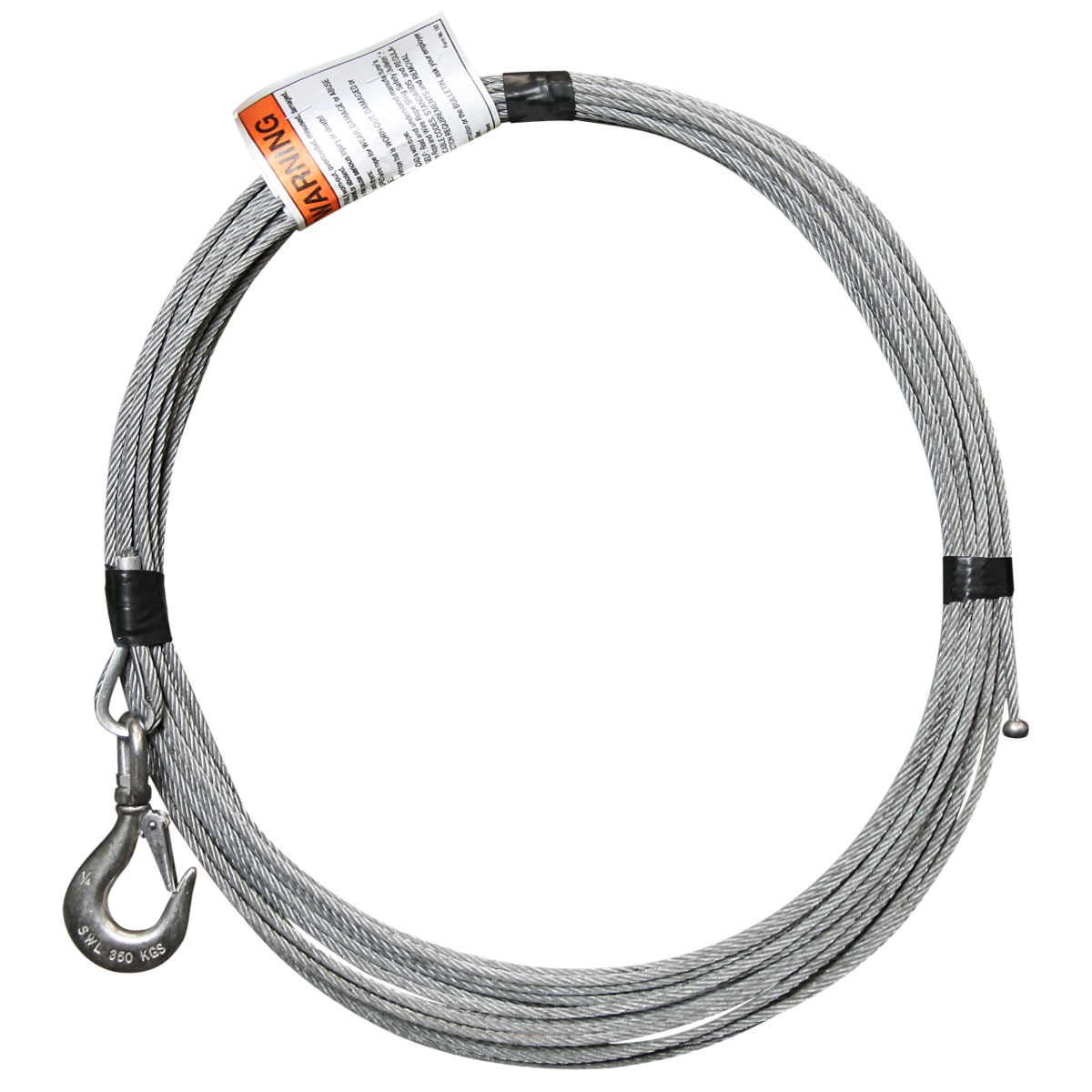

The OZGAL.19-40B is a 3/16″ × 40 ft galvanized wire rope assembly equipped with a ball end fitting and a swivel hook with safety latch. Designed for use with manual brake winches, it delivers secure installation, reliable performance, and excellent corrosion resistance.

Product Description

When your lifting or pulling application demands both strength and durability over a longer span, the OZGAL.19-40B is a dependable choice. This 40-foot galvanized wire rope assembly is engineered to provide consistent, corrosion-resistant performance in demanding environments—whether inside industrial plants or outdoors in varied weather.

Constructed of 3/16″ galvanized wire rope, this cable is protected against rust, oxidation, and the elements. Galvanization extends cable life by shielding the steel core, making it especially beneficial in humid, marine, or otherwise corrosive environments.

On one end, you get a ball end fitting—perfect for direct mounting in manual brake winches. No fussing with clamps or additional hardware; the ball end design allows a secure interface that resists slippage under load. On the other end, a swivel hook with safety latch ensures stable attachment to loads while allowing full 360° rotation to reduce rope twisting during lifting or pulling.

The greater 40-foot length of this assembly provides enhanced reach, whether you’re spanning long distances, rigging over obstacles, or configuring complex lifting layouts. That extended length increases the versatility of your setup without requiring frequent re-rigging or cable extensions.

This assembly is well-suited for rigging, tensioning lines, hoisting, equipment positioning, and general maintenance tasks. Because of its corrosion protection and rugged fittings, it’s particularly useful in outdoor, coastal, industrial, and workshop settings where exposure to moisture, salt, or chemical atmospheres is expected.

Specifications

• Model: OZGAL.19-40B

• Cable Diameter: 3/16″ (approx. 4.76 mm)

• Length: 40 ft (approx. 12.2 m)

• Construction: 7×19 galvanized wire rope (flexible, fatigue-resistant)

• Finish: Zinc galvanization for rust and corrosion resistance

• Ball End Fitting: For secure mounting in manual brake winches

• Hook Type: Swivel hook with safety latch

• Estimated Breaking Strength: ~4,200 lbs (for 3/16″ 7×19 galvanized rope)

• Working Load Limit (WLL): Typically a fraction of breaking strength depending on safety factor in your application

• Operating Temperature Range: –40 °F to +300 °F (–40 °C to +149 °C)

• Applications:
  • Manual brake winch systems
  • Hoisting, pulling, rigging and tension lines
  • Outdoor installations and industrial use
  • Marine, utility, and maintenance deployment

• Key Features:
  • Galvanized finish for corrosion protection
  • Long 40 ft reach for extensive coverage
  • Ball end fitting simplifies winch connection
  • Swivel hook reduces twist and enhances stability
  • Flexible 7×19 construction for smooth operation
