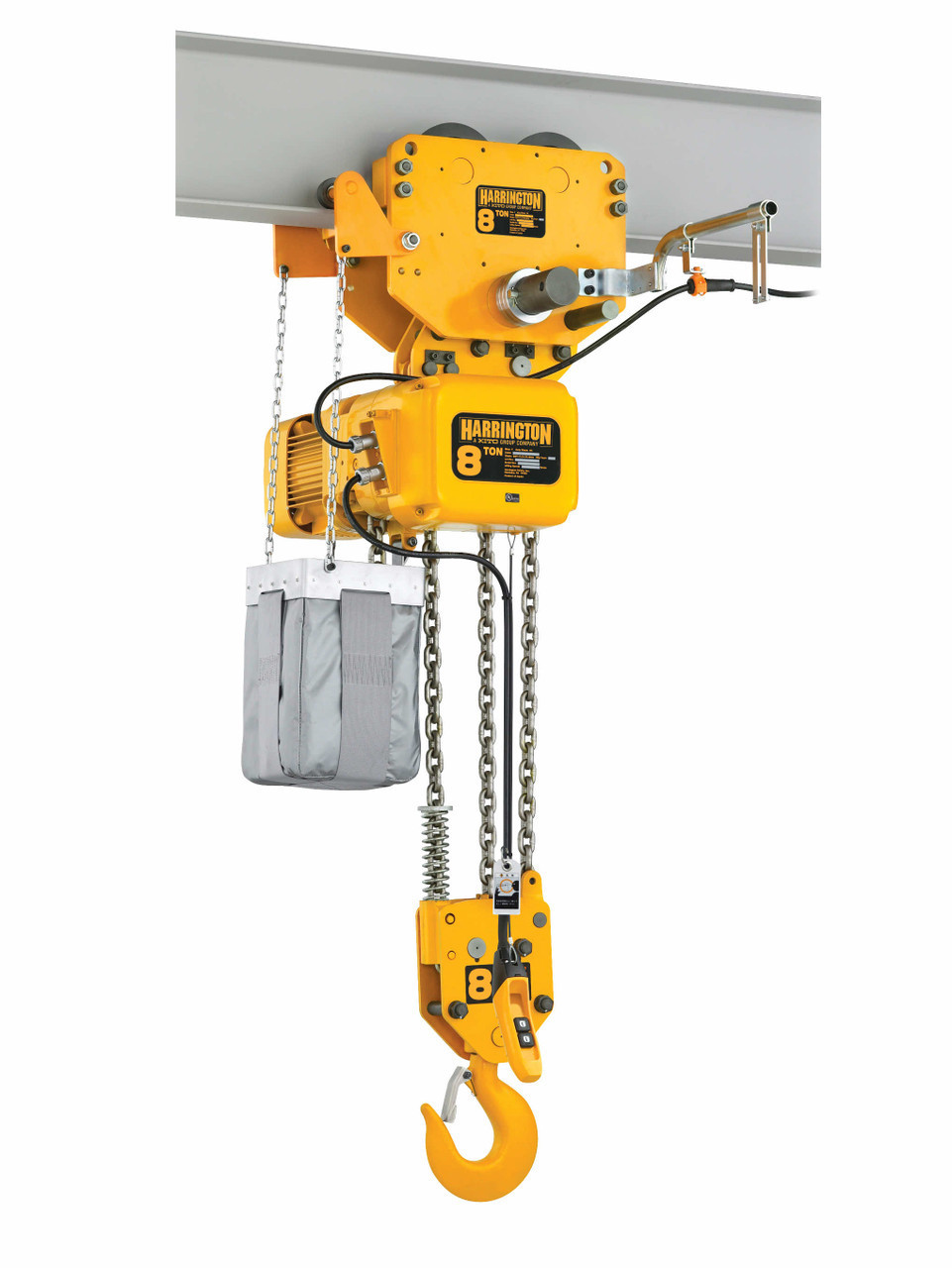

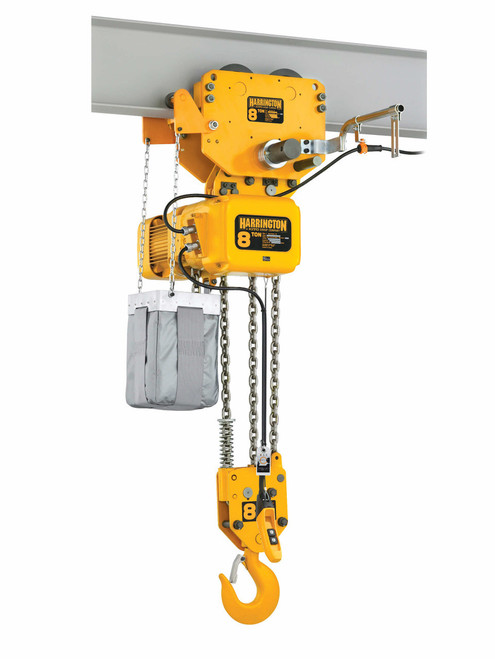

NERP Electric Chain Hoist with Push Trolley 10' Lift-Capacity 10 Tons NERP100S Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

The NERP100S-10 HARRINGTON NERP Electric Chain Hoist with Push Trolley represents an advanced solution for heavy load management, making it an indispensable asset for any workplace. Engineered for top-tier performance, this hoist effortlessly handles substantial weights, boasting an impressive lift capacity of up to 10 tons. Its 10-foot lift height further augments its usability, allowing for efficient transportation and placement of loads at varying elevations.

Versatility is at the core of this electric chain hoist, particularly highlighted by the integrated push trolley. Ideal for small workshops or sporadic lifting tasks, it ensures smooth maneuverability for heavy machinery and bulky items. Whether you are reorganizing your warehouse, conducting maintenance, or executing regular lifting tasks, the NERP100S-10 guarantees significant productivity boosts, transforming labor-intensive activities into simple tasks.

Crafted with precision, the NERP100S-10 is not only built for power but also durability. Constructed from high-grade materials, this hoist stands up to rigorous conditions, ensuring consistent and reliable performance over time. Its robust design supports a seamless operation that facilitates quicker workflows, thereby streamlining your processes and maximizing efficiency.

Investing in the NERP Electric Chain Hoist with Push Trolley translates to investing in enhanced operational capabilities. This innovative equipment simplifies heavy lifting, allowing your team to focus on other essential tasks while maintaining safety and effectiveness. With the NERP100S-10, manual labor is significantly reduced, enabling a more efficient work environment.

Take your productivity to the next level and experience the convenience that comes with this powerful hoist. The NERP100S-10 HARRINGTON Electric Chain Hoist with Push Trolley is your reliable partner for tackling demanding lifting challenges, making it a smart choice for any industrious facility.

Product Specifications

.

Part Number:

NERP100S-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 20,000 lb, 10 ft, Push Trolley=Hoist Mount=Push Trolley

Includes:

10 Year Brake Warranty, Chain Container, Push Trolley, Quick Disconnect Plugs On Pendant And Power Cords

Lift Speed:

11 fpm

Housing Width:

13 1/4 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

10 1/2 in

Housing Length:

28 7/8 in

For Minimum Beam Flange Width:

5 1/2 in

For Maximum Beam Flange Width:

8 21/32 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

13 1/4 in

Body Depth:

10 1/2 in

For Minimum Beam Height:

7 5/16 in

Body Length:

28 7/8 in

Minimum Radius Curve:

118 3/32 in

Maximum Lifting Length:

10 ft

Controller Cord Length:

6 ft

Trolley Wheel Diameter:

7 3/10 in

Lifting Hook Opening Width:

3 3/16 in

Minimum Retracted Length:

46 1/2 in

Load Capacity:

20,000 lb

Minimum Between Hooks:

46 1/2 in

Motor HP:

4.7 hp x2

Phase:

3

Standards:

ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340

Voltage:

208/230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

4

Thermal Protection:

Yes

Control Cord:

6 ft

Amps @ Low Volts:

16.4 x 2

Number of Speeds:

1

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

Count Hour Meter, Extreme Duty Motor, Push Trolley, Smart Brake Technology

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

11 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Push Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

4

Motor Horsepower:

4 3/4 hp

Headroom:

46 1/2 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

20,000 lb

Current at Minimum Voltage:

32.8 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

15.8 A

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
