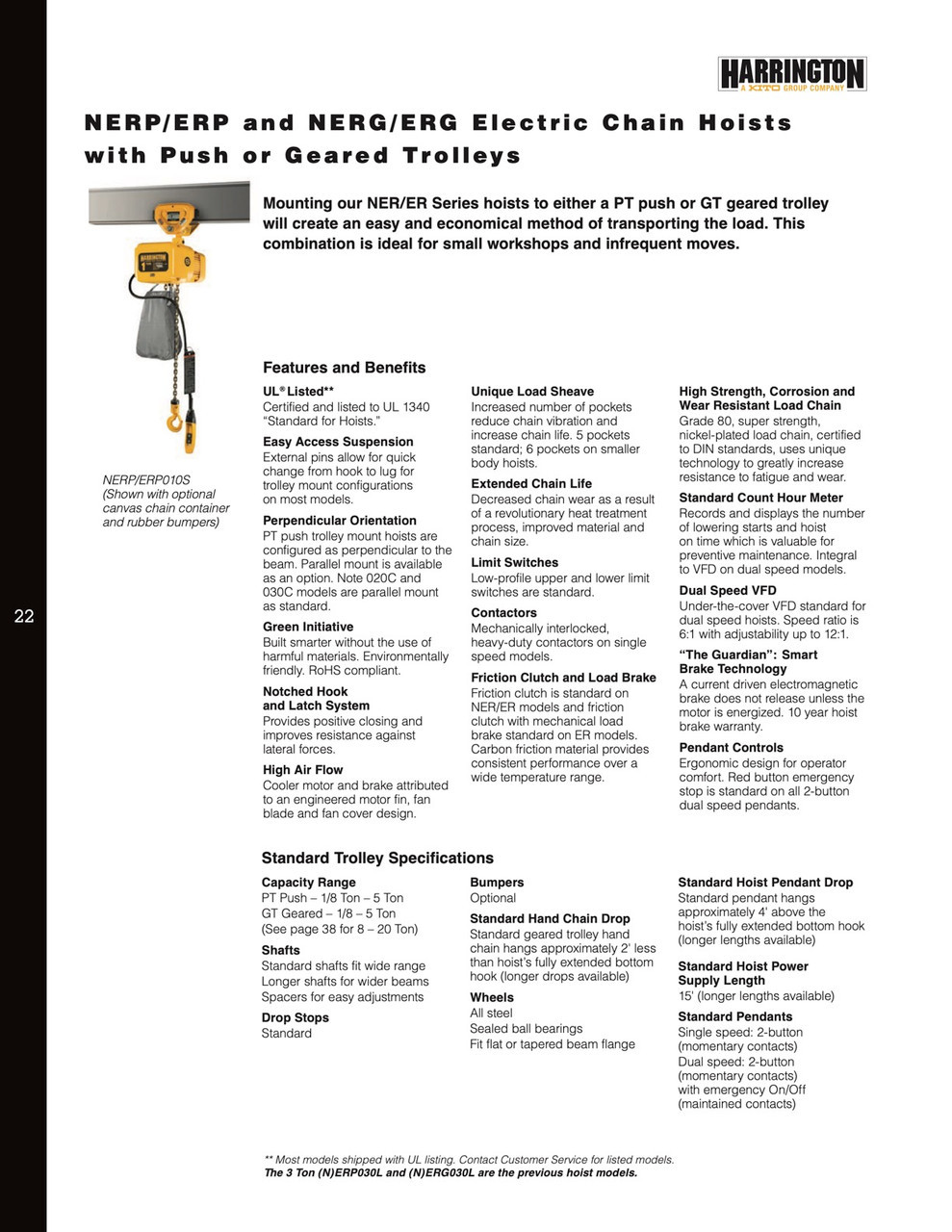

NERP Electric Chain Hoist with Push Trolley 10' Lift-Capacity 3 Tons, NERP030C Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

The NERP030C-10 HARRINGTON Electric Chain Hoist with Push Trolley is designed for those who require an effective solution for moving heavy loads effortlessly. With a robust lift capacity of 3 tons and a versatile 10-foot lift height, this hoist is ideal for workshops, warehouses, and industrial settings where efficiency and reliability are paramount.

Engineered for smooth operation, the NERP electric chain hoist is seamlessly integrated with the PT push trolley, ensuring that heavy lifting and transportation is a stress-free experience. Its strong, durable construction can handle the rigors of demanding tasks while offering exceptional longevity. This means you can rely on it for years of dependable performance without frequent replacements.

Safety and convenience are at the forefront of the NERP030C's design. It eliminates strenuous manual lifting, significantly reducing the risk of workplace injuries and enhancing productivity. This powerful hoist supports various applications, whether lifting machinery, large equipment, or construction materials, providing a versatile solution to your heavy load needs.

User-friendly and easy to set up, the NERP030C-10 HARRINGTON Electric Chain Hoist and Push Trolley combination is cost-effective, making it an excellent investment for any individual or business. Its exceptional performance does not require extensive training or significant time commitments; simply set it up and start lifting.

Elevate your lifting capabilities with the NERP030C-10 HARRINGTON Electric Chain Hoist with Push Trolley. Transform your workspace into a safe and efficient environment for heavy load transportation. With its leading-edge technology, superior durability, and ease of use, this electric chain hoist is the ultimate choice for those who value reliability and performance. Upgrade to the NERP030C-10 today and experience the difference.

Product Specifications

.

Part Number:

NERP030C-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 6,000 lb, 10 ft, Push Trolley=Hoist Mount=Push Trolley

Includes:

10 Year Brake Warranty, Chain Container, Push Trolley, Quick Disconnect Plugs On Pendant And Power Cords

Lift Speed:

17 fpm

Housing Width:

16 13/16 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

9 1/2 in

Housing Length:

27 5/8 in

For Minimum Beam Flange Width:

3 1/4 in

For Maximum Beam Flange Width:

6 1/32 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

16 13/16 in

Body Depth:

9 1/2 in

For Minimum Beam Height:

5 13/16 in

Body Length:

27 5/8 in

Minimum Radius Curve:

66 29/32 in

Maximum Lifting Length:

10 ft

Controller Cord Length:

6 ft

Trolley Wheel Diameter:

5 4/5 in

Lifting Hook Opening Width:

1 13/16 in

Minimum Retracted Length:

32 11/16 in

Load Capacity:

6,000 lb

Minimum Between Hooks:

32 11/16 in

Motor HP:

4.7 hp

Phase:

3

Standards:

ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340

Voltage:

208/230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Clutch:

Friction Clutch

Reeving:

2

Thermal Protection:

Yes

Control Cord:

6 ft

Amps @ Low Volts:

16.4 A

Number of Speeds:

1

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

Count Hour Meter, Extreme Duty Motor, Push Trolley, Smart Brake Technology

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

17 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Push Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

2

Motor Horsepower:

4 3/4 hp

Headroom:

32 19/32 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

6,000 lb

Current at Minimum Voltage:

16.4 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

7.9 A

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
