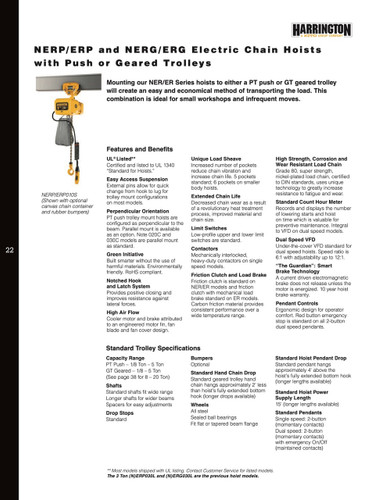

NERP Electric Chain Hoist with Push Trolley 10' Lift-Capacity 2 Tons, NERP020S Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

Enhancing your workshop's efficiency and lifting capabilities, the NERP020S-10 HARRINGTON Electric Chain Hoist with Push Trolley is engineered for performance and convenience. Designed to lift up to 2 tons, this electric chain hoist effortlessly handles heavy loads, making it an indispensable tool for small workshops and tasks requiring occasional heavy lifting.

With an impressive 10-foot lift height, this hoist accommodates a variety of applications, whether it‚ raising materials to a higher level or moving them horizontally across a workspace. Its robust construction ensures durability and reliability, providing steadfast performance without compromising on quality or functionality.

The integrated PT push trolley system enhances the hoist's versatility, allowing for seamless transportation of loads. This thoughtful combination of the hoist and trolley system permits easy maneuverability, making your lifting tasks much more manageable. The user-friendly design minimizes manual effort, allowing operators to focus on productivity rather than struggle with cumbersome lifting.

Ideal for workshop environments, the NERP020S balances exceptional performance with economic value, making it accessible for those who require reliable lifting capabilities without overspending on equipment. Its straightforward operation means you'll spend less time on setup and more time getting the job done efficiently.

Investing in the NERP020S-10 Electric Chain Hoist with Push Trolley not only transforms your lifting operations but also liberates you from the burdens of manual labor. Experience a new standard of convenience and reliability in your daily tasks, and watch as this powerful tool elevates the level of efficiency in your workshop. The NERP Electric Chain Hoist is designed to work as hard as you do, making heavy lifting a thing of the past.

Product Specifications

.

Part Number:

NERP020S-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 4,000 lb, 10 ft, Push Trolley=Hoist Mount=Push Trolley

Includes:

10 Year Brake Warranty, Chain Container, Push Trolley, Quick Disconnect Plugs On Pendant And Power Cords

Lift Speed:

28 fpm

Housing Width:

16 13/16 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

9 1/2 in

Housing Length:

27 5/8 in

For Minimum Beam Flange Width:

3 1/4 in

For Maximum Beam Flange Width:

6 1/32 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

16 13/16 in

Body Depth:

9 1/2 in

For Minimum Beam Height:

5 in

Body Length:

27 5/8 in

Minimum Radius Curve:

59 3/32 in

Maximum Lifting Length:

10 ft

Controller Cord Length:

6 ft

Trolley Wheel Diameter:

5 in

Lifting Hook Opening Width:

1 19/32 in

Minimum Retracted Length:

25 19/32 in

Load Capacity:

4,000 lb

Minimum Between Hooks:

25 5/8 in

Motor HP:

4.7 hp

Phase:

3

Standards:

ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340

Voltage:

208/230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

6 ft

Amps @ Low Volts:

16.4 A

Number of Speeds:

1

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

Count Hour Meter, Extreme Duty Motor, Push Trolley, Smart Brake Technology

Material:

Die Cast Aluminum

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

28 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Push Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

4 3/4 hp

Headroom:

25 19/32 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

4,000 lb

Current at Minimum Voltage:

16.4 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

7.9 A

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
