Product Overview

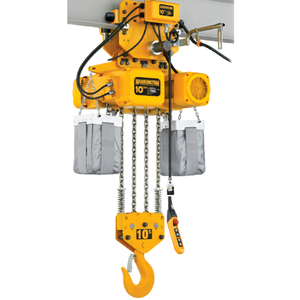

The NERM100S-L-10 HARRINGTON Electric Chain Hoist with Motorized Trolley is engineered for exceptional performance in heavy lifting scenarios. This advanced hoist system is perfect for industrial and commercial applications that demand both power and precision. With a remarkable lift capacity of 10 tons and a vertical reach of 10 feet, it effortlessly tackles heavy loads, making it an indispensable tool for any operation.Durability is at the heart of the NERM100S-L-10's design. It features a completely sealed and outdoor-rated construction, ensuring reliable operation in diverse environments, whether exposed to the elements or situated in a bustling warehouse. This robust build quality means it can handle dust, moisture, and extreme working conditions without compromising its performance.
One of the standout features of the NERM100S-L-10 is its motorized trolley, which allows for smooth and easy horizontal movement of loads. Gone are the days of labor-intensive manual pushing or pulling; the motorized trolley simplifies transportation, enhancing productivity while simultaneously reducing the risk of workplace injuries associated with heavy lifting.
Safety and reliability are paramount in any lifting operation. The NERM100S-L-10 provides peace of mind with its high-quality components, ensuring consistent performance and longevity. The advanced engineering and thoughtful design make this hoist not only powerful but also user-friendly, allowing operators of any skill level to work efficiently and safely.
Elevate your lifting capabilities effortlessly with the NERM100S-L-10 HARRINGTON Electric Chain Hoist. Experience unmatched power, durability, and ease of use that can transform your heavy lifting operations. Make a wise investment today and let the NERM100S-L-10 redefine your standards for lifting performance.
Product Specifications
.Product Videos
Videos Hide Videos Show Videos
Custom Field
Part Number NERM100S-L-10
Color Yellow
Hoist Lift 10 ft
Product Electric Chain Hoist, 20,000 lb, 10 ft, Motorized Trolley=Hoist Mount=Motorized Trolley
Includes Chain Container, Guardian Smart Brake, Motorized Trolley
Lift Speed 11 fpm
Housing Width 13 1/4 in
Manufacturers Warranty Length 10 yr Brake Warranty, 3 yr
Housing Depth 10 1/2 in
Housing Length 28 7/8 in
For Minimum Beam Flange Width 5 1/2 in
For Maximum Beam Flange Width 8 21/32 in
For Maximum Beam Height Not Applicable
MFR Warranty Length 1 yr
Body Width 13 1/4 in
Body Depth 10 1/2 in
For Minimum Beam Height 6 29/32 in
Body Length 28 7/8 in
Minimum Radius Curve 98 13/32 in
Maximum Lifting Length 10 ft
Controller Cord Length 6 ft
Trolley Wheel Diameter 6 9/10 in
Lifting Hook Opening Width 3 3/16 in
Minimum Retracted Length 46 1/2 in
Load Capacity 20,000 lb
Minimum Between Hooks 46 1/2 in
Motor HP 4.7 hp x2
Phase 3
Standards ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340
Voltage 208/230/460
Lubrication Oil Bath
Reeving 4
Thermal Protection Yes
Control Cord 6 ft
Amps @ Low Volts 16.4 x 2
Number of Speeds 1
Trolley Configuration Motorized Trolley
Trolley Speed 40 fpm
Features Dual Speed Trolley VFD, Rubber Bumpers, Side Guide Rollers
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Included
Overload Protection Included Yes
Brake Type DC Current
Chain Grade Grade 80
Maximum Lift Speed Not Applicable
Included Components Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Rubber Bumpers, Safety Latch Hook
Fixed Lift Speed 11 fpm
Clutch Type Friction Clutch
Minimum Lift Speed Not Applicable
Pendant IP Rating IP65
Chain Finish Nickel Plated
Controls Programmable by Internal Controls=Mount Type=Motorized Trolley
Starts and Stops per Hour 120, 240
Duty Classification H4
Maximum Pulling Capacity Not Applicable
Number of Reeves 4
Motor Horsepower 4 3/4 hp
Headroom 46 1/2 in
Includes Brake Brake Included
For Outdoor Use Yes
Hoist IP Rating IP55
Lifting Hook Type Swivel Hook with Safety Latch
Maximum Lifting Capacity 20,000 lb
Current at Minimum Voltage 5.1 A
Trolley Wheel Material Steel
Current at Maximum Voltage 1.7 A
Body Finish Enamel
Number of Load Chains 1
Body Material Aluminum
Trolley IP Rating IP55
Programmable Non-Programmable
