SKU:
LB030-10-10
Condition:
New
Availability:
In stock
Weight:
43.00 LBS
Shipping:
Free Shipping
Part Number:
LB030-10
Color:
Yellow
Hoist Lift:
10 ft
Product:

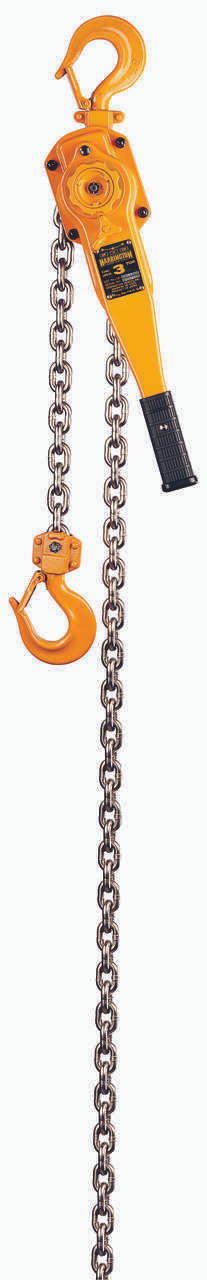

Lever Chain Hoist, 6,000 lb Load Capacity, 10 ft Hoist Lift, 1 1/2 in Hook Opening=Hoist Mount=Hook Mounted-No Trolley
Includes:
Safety Latch Hooks
Manufacturers Warranty Length:
1 yr
For Minimum Beam Flange Width:
Not Applicable
For Minimum Beam Flange Height:
Not Applicable
For Maximum Beam Flange Width:
Not Applicable
For Maximum Beam Flange Height:
Not Applicable
Body Width:
6 5/16 in
Body Depth:
7 1/2 in
Maximum Lifting Length:
10 ft
Lifting Hook Opening Width:
1 1/2 in
Minimum Retracted Length:
15 19/32 in
Load Capacity:
6,000 lb
Minimum Between Hooks:
15 39/64 in
Standards:
ANSI/ASME B30.21, ANSI/ASME HST-3M
Item:
Lever Chain Hoist
Reeving:
1
Brake:
Weston Style
Finish:
Electrostatic Enamel
Trolley Configuration:
Hook Mounted-No Trolley
Features:
Patented Hardening Process, Safety Tip Hook and Latch, State-Of-The-Art Chain Technology, Structural Steel Side Plates
Lifting Hook Material:
Chromium-Molybdenum Alloy Steel
Includes Clutch:
Clutch Not Included
Overload Protection Included:
No
Chain Grade:
Grade 100
Included Components:
Safety Latch Hooks
Chain Finish:
Nickel Plated
Controls:
=Mount Type=Hook Mounted-No Trolley
Maximum Pulling Capacity:
6,000 lb
Number of Reeves:
1
Headroom:
15 19/32 in
Includes Brake:
Brake Included
Lifting Hook Type:
Hook with Safety Latch
Maximum Lifting Capacity:
6,000 lb
Body Finish:
Powder Coated
Number of Load Chains:
1
Body Material:
Steel
