Product Overview

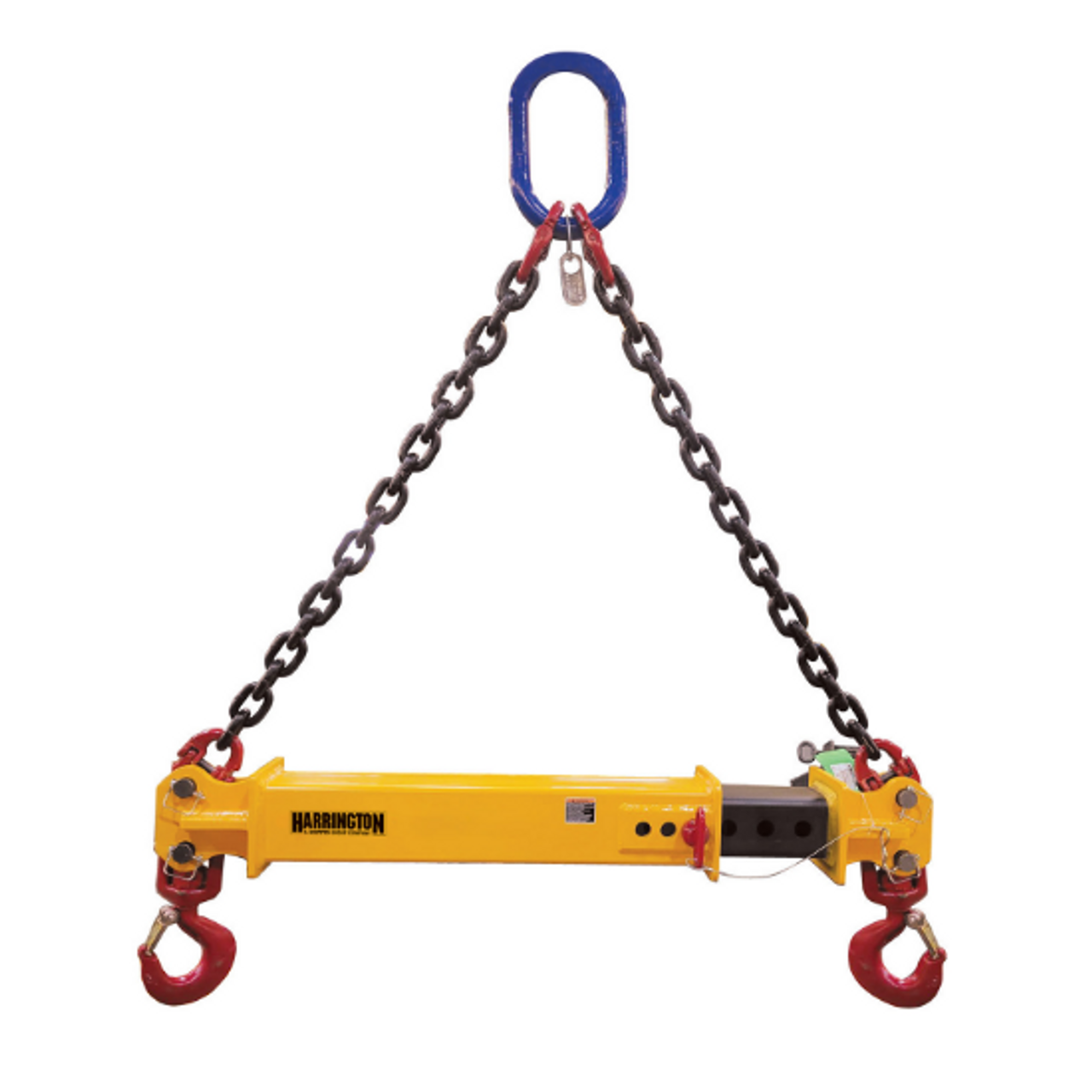

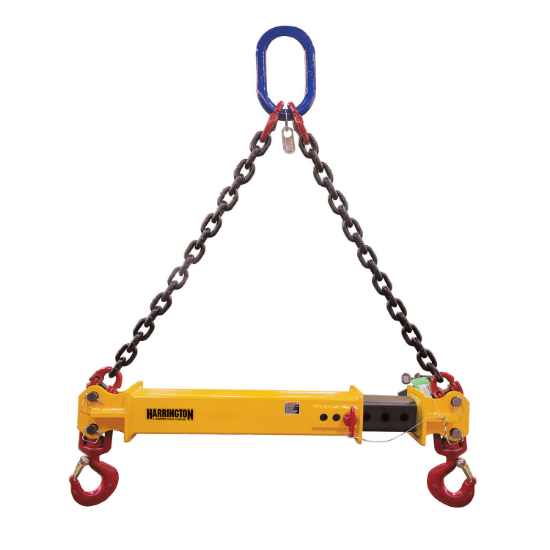

Professional Description of HATSBC-15-4/6 Below-The-Hook Lifting Device
The Harrington HATSBC-15-4/6 is a meticulously engineered below-the-hook lifting device designed to excel in industrial lifting applications where precision, safety, and efficiency are paramount. This device combines robust construction with advanced features to ensure reliable performance in diverse lifting scenarios.
Delivery: 4 Weeks
Includes: two swivel hooks with pins & chain top rigging

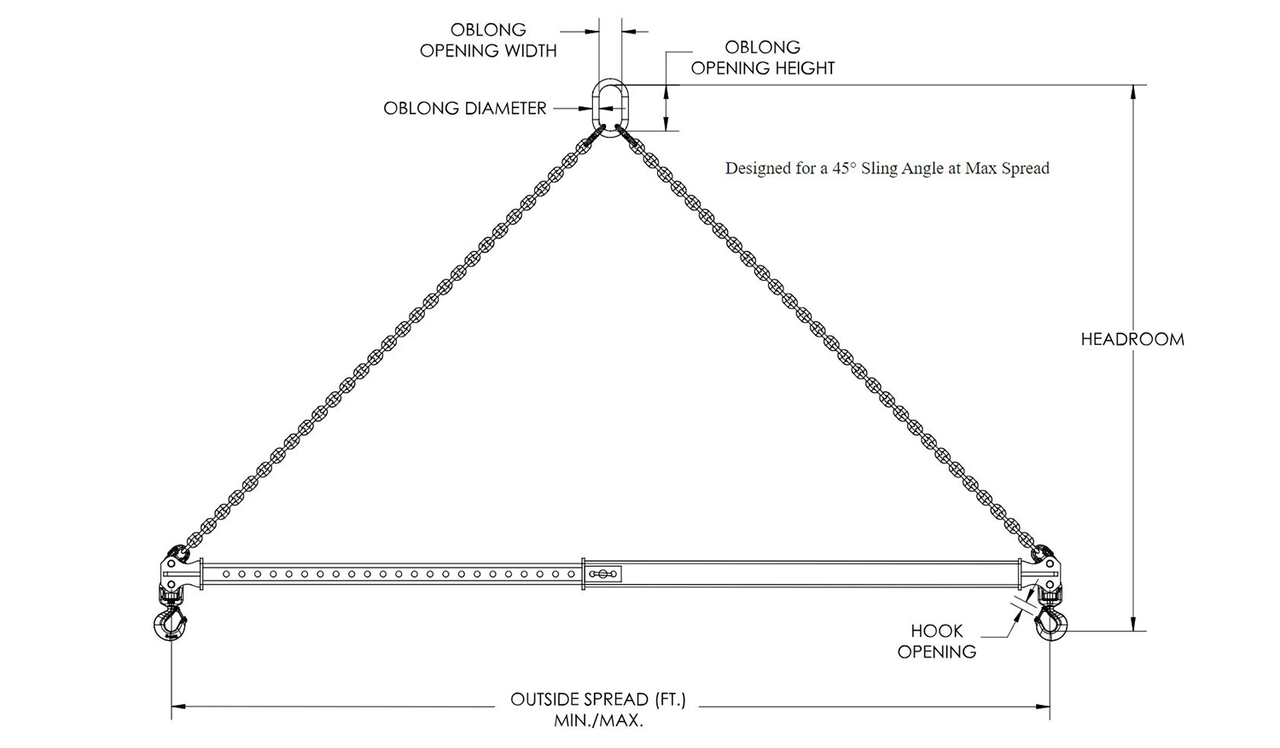

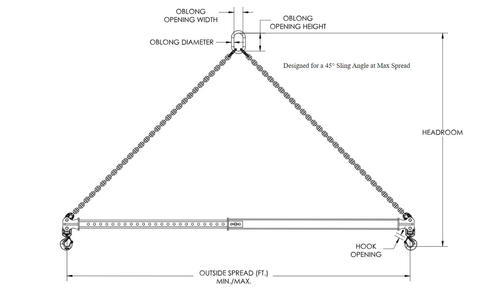

Capacity 15
Outside Spread Min/Max 4/6
Headroom Min/Max (Max at 45*) 67/76
Oblong ML Diameter 1.50
Oblong ML Opening Width 5.25
Oblong Opening Height 10.50
Hook Opening 2.08
Beam & Hook Weight 165
Chain Rigging Weight 75
Capacity and Dimensions: The HATSBC-15-4/6 boasts a maximum lifting capacity of 15 tons, making it suitable for heavy-duty lifting tasks. Its adjustable outside spread ranges from 4 feet to 6 feet, providing versatility to accommodate various load sizes and configurations. The device offers a minimum headroom clearance of 67 inches and a maximum of 76 inches (up to 45 degrees), optimizing vertical space utilization in tight operational environments.
Design and Construction: Crafted from high-strength materials, the HATSBC-15-4/6 is engineered to withstand rigorous industrial use while maintaining a lightweight profile. The oblong master link features a diameter of 1.50 inches, complemented by an opening width of 5.25 inches and a height of 10.50 inches, ensuring secure attachment and stability during lifting operations. The hook opening of 2.08 inches accommodates various rigging configurations with ease.
Performance and Safety Features: This lifting device prioritizes safety with integrated features such as load-limiting mechanisms and robust locking systems to prevent accidental disengagement. Each component undergoes stringent quality control measures to ensure compliance with industry standards and operational safety protocols. The design includes ergonomic considerations to facilitate ease of use and maintenance, enhancing operational efficiency and minimizing downtime.
Versatility and Applications: Ideal for diverse industrial applications, the HATSBC-15-4/6 excels in lifting heavy machinery, structural components, and oversized loads with precision and stability. Its adjustable spread and generous headroom clearance make it suitable for both indoor and outdoor environments, adapting seamlessly to varying workplace conditions and load requirements.
Accessories and Optional Configurations: The device is compatible with chain rigging systems, offering a chain rigging weight of 75 pounds to complement its 165-pound beam and hook assembly. Optional accessories include protective covers, remote control systems, and custom rigging attachments tailored to specific operational needs, enhancing versatility and functionality across different lifting tasks.
The HATSBC-15-4/6 sets a benchmark in below-the-hook lifting technology, combining robust construction, advanced safety features, and versatile design elements to deliver unparalleled performance in industrial lifting operations. Engineered for reliability and efficiency, this device ensures optimal productivity while prioritizing operator safety, making it an indispensable asset in demanding industrial environments.
This comprehensive description highlights the HATSBC-15-4/6 as a premier choice for professionals seeking a reliable and efficient solution for heavy-duty lifting applications.
