SKU:
LB020-15
Condition:
New
Availability:
In stock
Weight:
37.00 LBS
Width:
6.00
(in)
Height:
7.00
(in)
Depth:
14.00
(in)
Shipping:
Free Shipping
product:

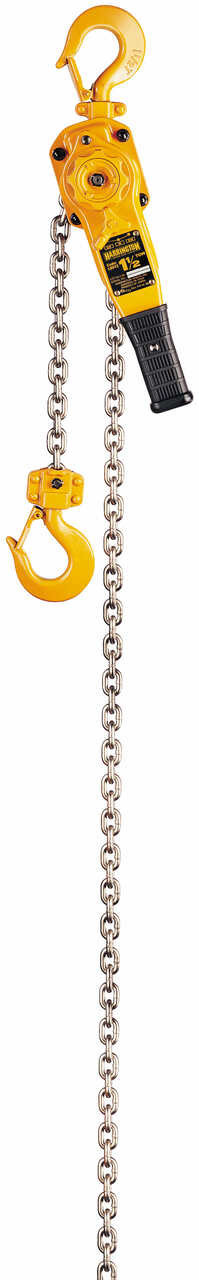

Lever Chain Hoist, 4,000 lb Load Capacity, 15 ft Hoist Lift, 1 7/16 in Hook Opening
Load Capacity:
4,000 lb
Chain Length:
16 ft
Hook Opening:
1 7/16 in
Lever Length:
10 13/32 in
Manufacturers Warranty Length:
1 yr
Body Depth:
6 13/16 in
Body Width:
5 29/32 in
Minimum Retracted Length:
14 13/16 in
For Min Beam Flange Width:
Not Applicable
For Min Beam Flange Height:
Not Applicable
For Max Beam Flange Width:
Not Applicable
For Max Beam Flange Height:
Not Applicable
Maximum Lifting Length:
15 ft
Lifting Hook Opening Width:
1 13/32 in
Item:
Lever Chain Hoist
Hoist Lift:
15 ft
includes:
Safety Latch Hooks
Chain:
Nickel Plated
Standards:
ANSI/ASME B30.21, ANSI/ASME HST-3M
Hoist Mount:
Hook Mounted - No Trolley
Pull to Lift Rated Load:
59 lb
Min Between Hooks:
14 13/16 in
Brake:
Weston Style Load Brake
Hoist Overload Protection:
No
Finish:
Powder Coated
Reeving:
1
Trolley Configuration:
Hook Mounted - No Trolley
Color:
Yellow
Features:
Patented Hardening Process, Safety Tip Hook and Latch, State-Of-The-Art Chain Technology, Structural Steel Side Plates
Chain Material:
Nickel Plated
Body Finish:
Powder Coated
Maximum Pulling Capacity:
4,000 lb
Overload Protection Included:
No
Includes Clutch:
Clutch Not Included
Power Source:
Lever
Lifting Hook Type:
Hook with Safety Latch
Includes Brake:
Brake Included
Number of Reeves:
1
Maximum Lifting Capacity:
4,000 lb
Lifting Hook Material:
Chromium-Molybdenum Alloy Steel
Number of Load Chains:
1
Body Material:
Steel
Operating Position:
Horizontal, Vertical
Resistance Properties:
Corrosion Resistant, Wear Resistant
Mount Type:
Hook Mounted - No Trolley
Chain Grade:
Grade 100
Brake Type:
Weston Style
Chain Finish:
Nickel Plated
Headroom:
14 13/16 in
