Product Overview

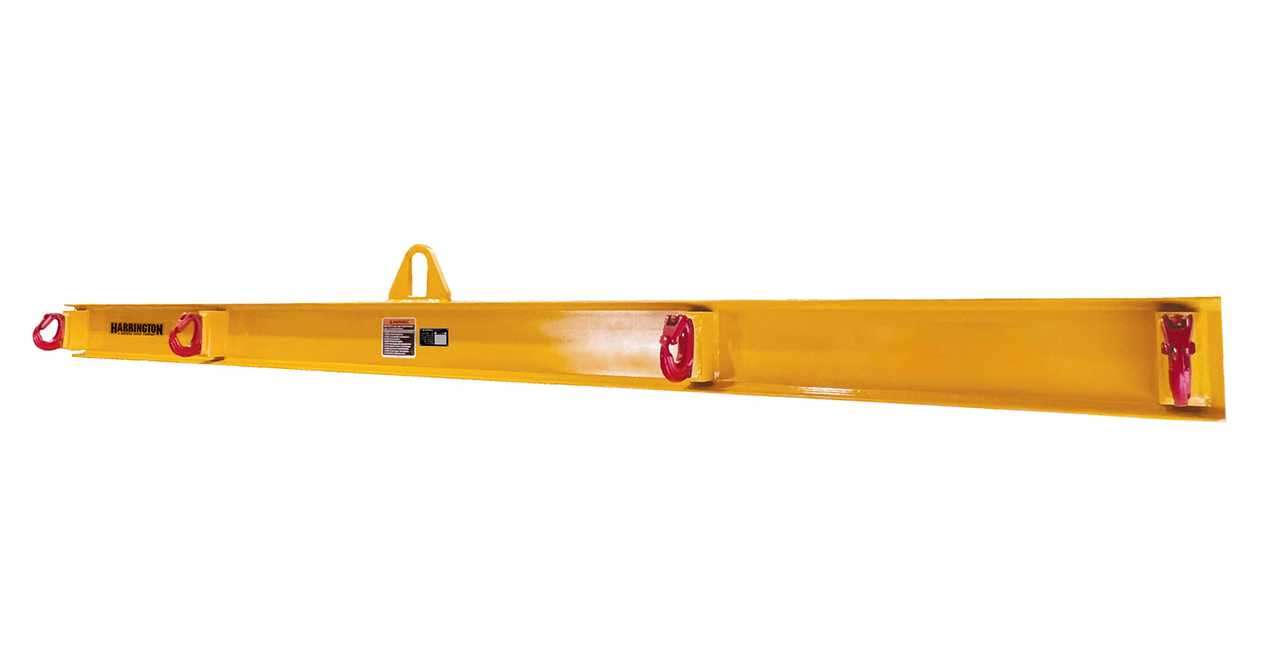

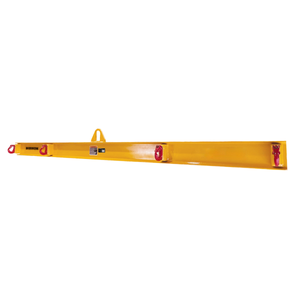

Informative Overview of the HBSLB-5-12 Below-The-Hook Lifting Device
The Harrington HBSLB-5-12 Below-The-Hook Lifting Device is engineered to provide robust lifting capabilities for heavy industrial applications, ensuring precision, reliability, and safety. This informative overview explores its key specifications and features, highlighting its design elements that facilitate efficient material handling operations.
Delivery: 4 weeks
Includes: TWO SETS OF FIXED HOOKS INNER SET OF HOOKS IS AT 1/2 THE OVERALL SPREAD

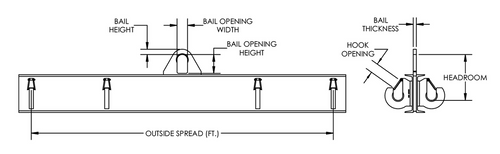

Key Specifications and Features
1. Capacity: 5 Tons
The HBSLB-5-12 is designed to lift loads to 5 tons, making it well-suited for handling substantial industrial materials with ease and precision.
2. Outside Spread: 12 ft.
With a 12-foot outside spread, this lifting device offers exceptional stability and balance when maneuvering loads over a significant distance. The wider spread enhances load control and ensures safe handling during lifting operations.
3. Headroom: 17"
Featuring a headroom clearance of 17 inches, the HBSLB-5-12 provides ample space above the load for securely attaching lifting hooks, slings, or chains. This generous clearance accommodates various rigging configurations and facilitates smooth lifting operations without obstruction.
4. Bail Height: 2"
The 2-inch bail height enables easy attachment to lifting hardware such as hooks or shackles. This height ensures compatibility with standard lifting attachments, allowing quick and secure engagement with the load.
5. Bail Opening Width: 4"
With a bail opening width of 4 inches, the HBSLB-5-12 allows for straightforward insertion and removal of lifting attachments. This feature enhances flexibility in handling different load shapes and sizes, simplifying the rigging process for operators.
6. Bail Opening Height: 7"
The 7-inch bail opening height accommodates various lifting attachments and load configurations, ensuring versatility in material handling operations. This capability allows the device to handle diverse loads effectively, enhancing its utility in different industrial applications.
7. Bail Thickness: 1"
A bail thickness of 1 inch provides robust strength and durability for lifting loads to 5 tons. This ensures reliable performance during lifting operations, maintaining safety and operational efficiency.
8. Hook Opening: 1.13"
The 1.13-inch hook opening accommodates standard lifting hooks, ensuring secure attachment and dependable load support. This feature promotes stability and proper positioning of the load during lifting, enhancing safety and operational efficiency.
9. Weight: 525 lbs.
Weighing 525 pounds, the HBSLB-5-12 offers a balance between strength and maneuverability. This weight facilitates ease of transportation and installation while ensuring stability and durability during lifting operations.
The HBSLB-5-12 Below-The-Hook Lifting Device is a robust solution for industries requiring efficient and reliable handling of loads up to 5 tons. With its sturdy construction, thoughtful design features, and manageable weight, this device ensures superior performance and operational safety in heavy industrial settings. Whether used in manufacturing, construction, or maintenance operations, the HBSLB-5-12 enhances productivity and facilitates seamless material handling processes. For industries seeking dependable and versatile lifting solutions, the HBSLB-5-12 stands out as a valuable asset, delivering exceptional reliability and performance in industrial lifting equipment.
