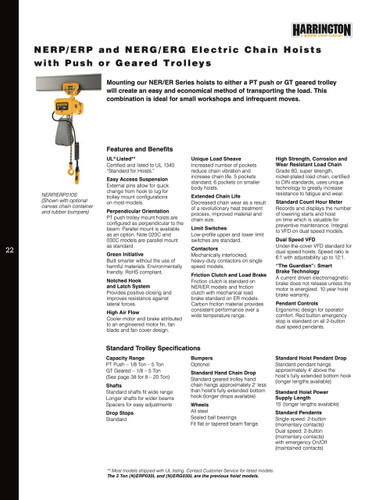

ERP Electric Chain Hoist with Push Trolley 10' Lift-Capacity 1/4 Tons ERP003H Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

The ERP003H-10 HARRINGTON ERP Electric Chain Hoist with Push Trolley is a top-of-the-line equipment designed to revolutionize the efficiency and productivity of your workshop. Boasting a hefty 10' lift capacity and a wide range of load Capacity, ranging from 1/4 Tons, this electric chain hoist is capable of effortlessly handling loads of various sizes. Whether you have small or heavy loads to move, this hoist is your ultimate solution.Equipped with a PT push trolley, this hoist offers an easy and cost-effective means of transporting your loads. The trolley ensures seamless and effortless moves, enabling you to transport your loads with minimal strain and maximum efficiency. By using this hoist, you not only save considerable time and effort, but you also reduce the risk of accidents or injuries.The ERP003H-10 HARRINGTON ERP Electric Chain Hoist with Push Trolley is engineered to deliver unmatched performance and reliability. Crafted from top-notch materials, this hoist guarantees exceptional durability and longevity. You can count on this hoist to withstand the demands of your workshop for many years to come.Versatility is a key feature of this hoist. It is suitable for a wide range of applications, making it an invaluable addition to any workshop. Whether you need to lift and transport materials in a manufacturing facility, construction site, or any other industrial setting, this hoist rises to the occasion effortlessly.Safety is paramount with this hoist, as it is equipped with various safety features to safeguard both the operator and the load. An overload protection system prevents the hoist from exceeding its rated capacity, ensuring your safety. Additionally, a reliable brake system guarantees secure load holding and stops the hoist in the event of power failure.Maximize the efficiency of your workshop today with the ERP003H-10 HARRINGTON ERP Electric Chain Hoist with Push Trolley. Its exceptional performance, durability, and versatility make it a worthy investment that will optimize your workflow and deliver improved results. Don't miss out on the opportunity to enhance the efficiency of your workshop. Obtain the ERP003H-10 HARRINGTON ERP Electric Chain Hoist with Push Trolley now and experience the transformative difference it can make.

Product Specifications

.

Part Number:

NERP003H-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 500 lb, 10 ft, Push Trolley=Hoist Mount=Push Trolley

Includes:

10 Year Brake Warranty, Chain Container, Push Trolley, Quick Disconnect Plugs On Pendant And Power Cords

Lift Speed:

53 fpm

Housing Width:

13 11/16 in

Manufacturers Warranty Length:

10 yr Brake Warranty, 3 yr

Housing Depth:

7 1/2 in

Housing Length:

20 in

For Minimum Beam Flange Width:

2 1/4 in

For Maximum Beam Flange Width:

4 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

13 11/16 in

Body Depth:

7 1/2 in

For Minimum Beam Height:

3 in

Body Length:

20 in

Minimum Radius Curve:

43 5/16 in

Maximum Lifting Length:

10 ft

Controller Cord Length:

11 ft

Trolley Wheel Diameter:

3 1/5 in

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

16 5/16 in

Load Capacity:

500 lb

Minimum Between Hooks:

16 5/16 in

Motor HP:

1.2 hp

Phase:

3

Standards:

ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340

Voltage:

208/230/460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

11 ft

Amps @ Low Volts:

4.8 A

Number of Speeds:

1

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

Count Hour Meter, Extreme Duty Motor, Push Trolley, Smart Brake Technology

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

DC Current

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

53 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Push Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1 1/4 hp

Headroom:

16 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

500 lb

Current at Minimum Voltage:

4.8 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

2.5 A

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
