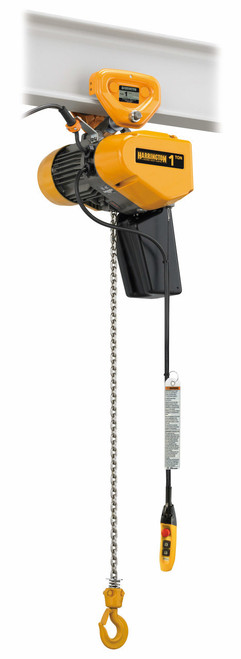

EQP Electric Chain Hoist with Push Trolley 20' Lift-Capacity 1 Ton EQP010SD Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

The EQP010SD-20 HARRINGTON EQP Electric Chain Hoist with Push Trolley is engineered for excellence, offering unparalleled lifting capabilities with precision and ease. This premier electric chain hoist combines advanced technology with robust construction, making it an essential tool for industries that demand heavy lifting solutions.

Designed for versatility and efficiency, the EQP010SD-20 features a powerful dual-speed functionality equipped with VFD Control. This allows for seamless operation, enabling operators to select the optimal speed for any lifting task. Whether you are dealing with heavy machinery, construction materials, or equipment, this hoist provides the reliability you need to move loads safely and efficiently. Its PT push trolley system enhances maneuverability, making it easy to transport loads across various environments.

• Lift Capacity: 1 ton for handling a wide range of loads.
• Dual speed operation with VFD Control for precise lifting control.
• Integrated push trolley system for improved mobility.
• Durable and rugged construction to withstand tough working conditions.
• Ideal for applications in construction, manufacturing, warehousing, and more.
• Easy to operate, ensuring efficient performance with minimal training.
• Long-lasting durability, providing a cost-effective lifting solution.

Choosing the EQP010SD-20 HARRINGTON EQP Electric Chain Hoist with Push Trolley means investing in a high-performance lifting solution that prioritizes safety, efficiency, and functionality. Built to perform in demanding environments, this electric chain hoist is a testament to quality engineering and design. Experience the difference with the EQP010SD-20 — the ultimate choice for all your lifting needs.

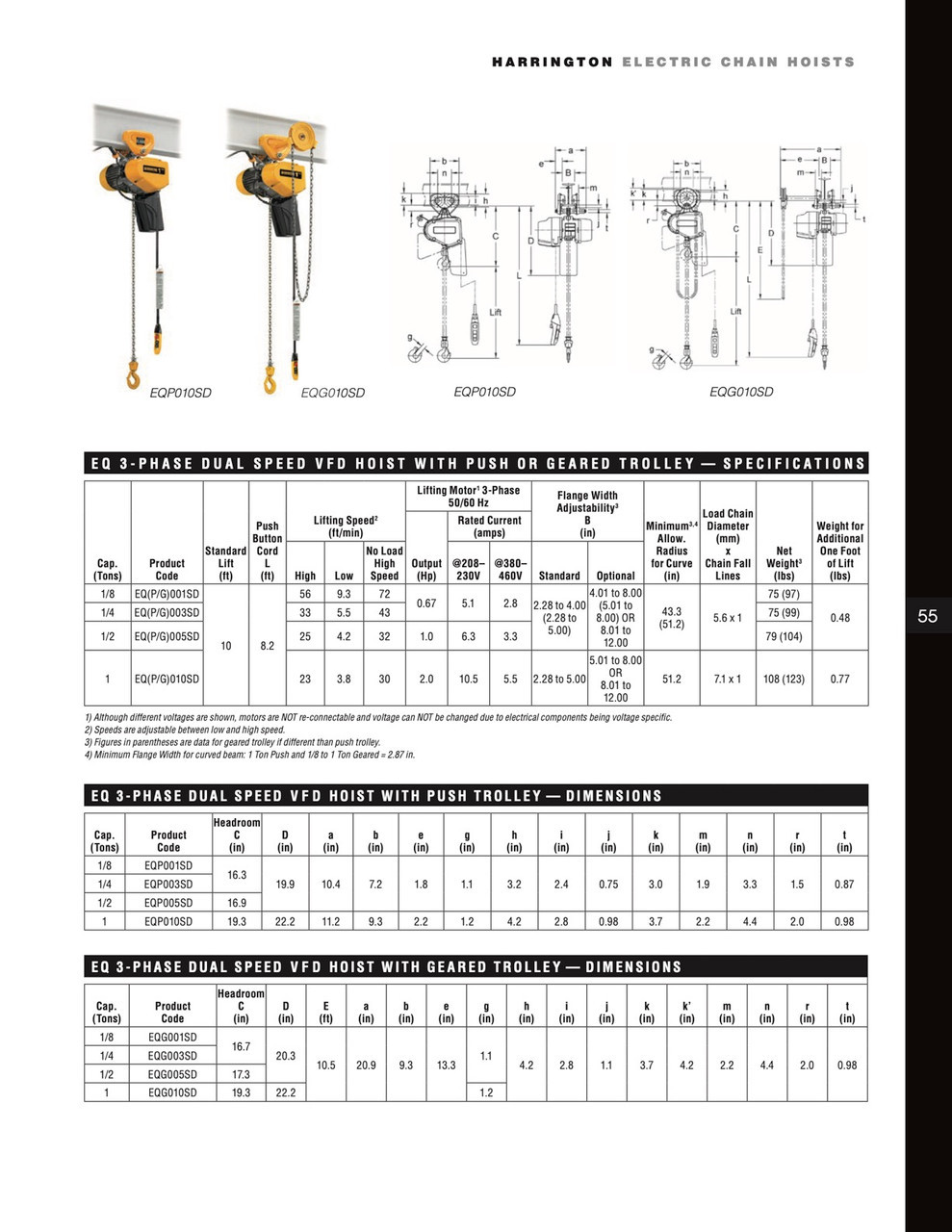

Product Specifications

.

Part Number:

EQP010SD-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 2,000 lb, 20 ft, Push Trolley, Yellow=Hoist Mount=Push Trolley

Includes:

Chain Container

Lift Speed:

23/3.8 fpm

Housing Width:

15 29/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 39/64 in

Housing Length:

16 19/64 in

For Minimum Beam Flange Width:

2 1/4 in

For Maximum Beam Flange Width:

5 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

15 29/32 in

Body Depth:

9 5/8 in

For Minimum Beam Height:

3 9/16 in

Body Length:

16 5/16 in

Minimum Radius Curve:

51 1/4 in

Maximum Lifting Length:

20 ft

Controller Cord Length:

16 ft

Trolley Wheel Diameter:

4 1/4 in

Lifting Hook Opening Width:

1 3/16 in

Minimum Retracted Length:

19 5/16 in

Load Capacity:

2,000 lb

Minimum Between Hooks:

19 5/16 in

Motor HP:

2 hp

Phase:

3

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

460V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

16 ft

Amps @ Low Volts:

5.5 A

Number of Speeds:

2

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Stamped Steel Side Plates, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

23 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

3.8 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Pendant=Mount Type=Push Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

2 hp

Headroom:

19 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

2,000 lb

Current at Minimum Voltage:

10.5 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

5.5 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
