Zallys M20
Write a Review
ZALLYS
Zallys M20
Zallys M20

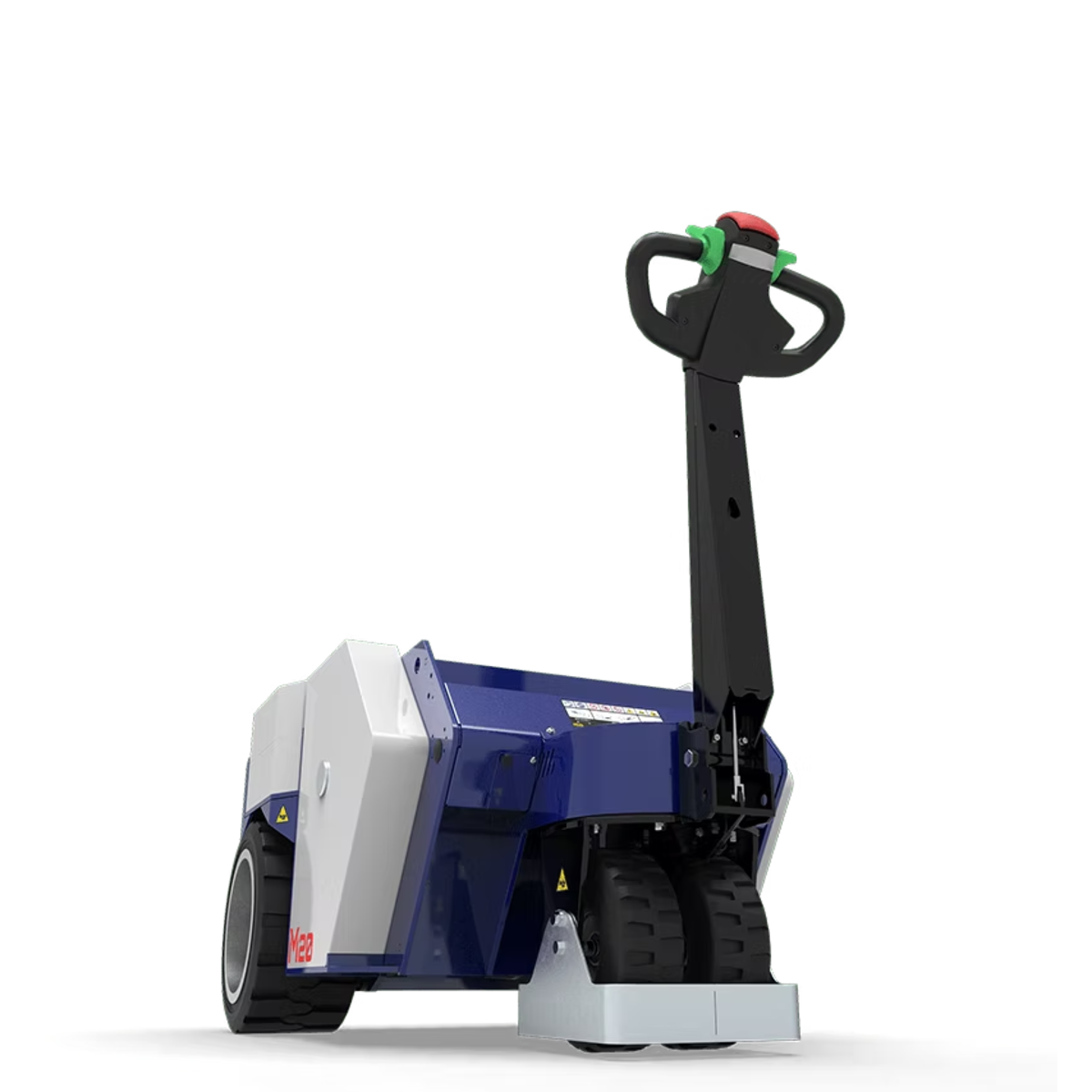

Zallys M20 Ultra Heavy-Duty Electric Tow Tug ” 66,139 lb. Capacity | The Most Powerful Pedestrian Tug in the Zallys Range Where Conventional Tugs Reach Their Limit, the M20 Takes Over. Some loads are simply beyond the reach of standard industrial tugs. The Zallys M20 Ultra Heavy-Duty Electric Tow Tug was engineered specifically for those extreme challenges ” delivering a staggering towing capacity of up to 30,000 kg (66,139 lb.) on flat ground, all controlled by a single walk-behind operator with precision, safety, and zero physical strain. Built using the most advanced technologies and highest-performing components currently available, the M20 is the flagship of the Zallys tug lineup ” the ultimate solution for industries where scale, power, and control all matter in equal measure.
Slewing Ring Steering for Effortless Precision at Any Load
At the core of the M20's maneuverability is its tiller steering system equipped with a precision slewing ring bearing. This engineering choice dramatically reduces the steering effort required, allowing the operator to direct and position loads of extraordinary size and mass ” large metal fabrications, special production trolleys, heavy industrial equipment, and more ” with the same ease and accuracy as much lighter loads. Whether navigating a tight production corridor or executing precise positioning at a workstation, the M20 responds with confidence.
Standard Solid Ballast System for Maximum Traction
The M20 comes standard with a solid ballast system that guarantees maximum traction capacity on any type of flooring ” concrete, asphalt, smooth tiles, or uneven industrial surfaces ” while maintaining perfect machine balance at all times. This ensures consistent, reliable performance regardless of load weight or floor conditions, shift after shift.
Always-Active Electromagnetic Brake for Total Safety
When power is off, the M20's electromagnetic brake engages automatically and stays locked ” preventing any unintended movement of the machine or its load. This critical safety feature means the M20 holds its position securely on flat ground and inclines whenever the operator is not actively driving, eliminating risk during coupling, positioning, or breaks.
Full-Shift Battery Endurance with PFC Smart Charging
The M20 is equipped as standard with four 450Ah AGM sealed maintenance-free batteries, delivering a full 8 hours of continuous operation on a single charge. Recharging is managed by a Zallys PFC (Power Factor Correction) smart charger ” a multi-voltage unit (110V/220V) that prevents harmful current peaks, extends battery life, and includes buffer technology to maintain battery performance during long periods of non-use.
Interchangeable Hooks for Versatile Applications
A wide range of interchangeable towing hooks and hitches ” including an optional hydraulic lifting arm for two-wheeled trailer applications ” allows the M20 to be configured for virtually any extreme-load towing task across industries including metallurgy, automotive, railway, paper converting, carpentry, and heavy manufacturing.
CE Certified. Made in Italy.
Every Zallys M20 is designed and manufactured in Italy to the most demanding quality and durability standards, CE certified in compliance with current European safety regulations, and supported by a worldwide dealer network, 24/7 online technical assistance, and readily available spare parts.
Specifications
- Model: Zallys M20
- Max. Towing Capacity (Flat): 66,139 lb. (30,000 kg)
- Drive Type: Pedestrian Walk-Behind (Heavy-Duty Electric Tow Tug)
- Steering System: Swivel
- Tiller: with Slewing Ring Bearing
- Speed Control: 5-Speed Flex-to-Go System (20% increments)
- Safety Sensor: Deadman Presence Sensor (Standard)
- Brake System: Electromagnetic (Always Active Without Voltage)
- Ballast System: Solid Ballast (Standard)
- Battery Type: AGM Sealed, Maintenance-Free
- Battery Configuration: 4 × 450Ah (Standard)
- Battery Autonomy: Up to 8 continuous hours
- Smart Charger: PFC Multi-Voltage (110V/220V) with Buffer Technology
- Optional Lifting System: Hydraulic Arm (for 2-Wheel Trailers)
- Operator License Required: No
- Emissions: Zero (100% Electric)
- Certifications: CE Certified
- Origin: Made in Italy
Zallys srl warrants its products to be free from defects in materials and workmanship for a period of 12 months from the date of delivery, as validated by a fiscal document (invoice or delivery note). This warranty is valid worldwide and applies to the original purchaser of the product.
What Is Covered
During the warranty period, Zallys srl will repair or replace, at its sole discretion, any part found to be defective in materials or workmanship under normal use and service conditions, at no charge to the original purchaser.
What Is Not Covered
- Components subject to wear and tear (e.g. batteries, tyres, brushes, brake pads, and similar consumable parts) are excluded from warranty coverage.
- Damage resulting from misuse, negligence, unauthorized modification, or repair by anyone other than Zallys-authorized service personnel.
- Damage caused by accidents, improper storage, or use outside the conditions specified in the product manual.
- Products with removed or altered serial number plates.
Obtaining Warranty Service
To request warranty service, contact Zallys srl directly through the service portal at dealer.zallys.com or by emailing sales@zallys.com. You will be required to provide the machine serial number, proof of purchase, and a description of the defect or failure. Zallys srl will respond with the best solution in the shortest time possible.
Spare Parts & Support
Spare parts are always available and can be ordered online through the Zallys dealer platform. Zallys also provides hundreds of video tutorials accessible by serial number to assist with maintenance and servicing. All products are CE certified and Made in Italy in accordance with current European safety regulations.
Your Legal Rights
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY BY COUNTRY OR STATE. In no event shall Zallys srl be liable for any incidental, consequential, or indirect damages arising from the use of its products.
