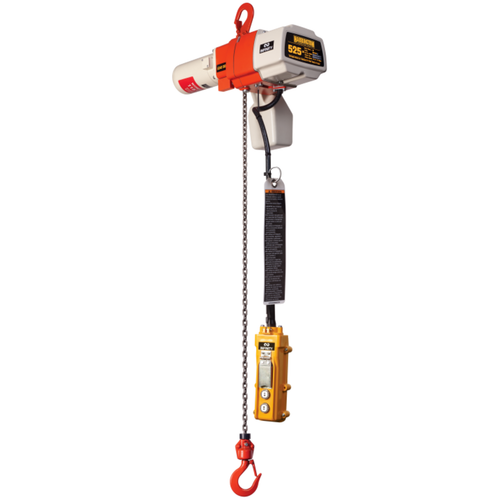

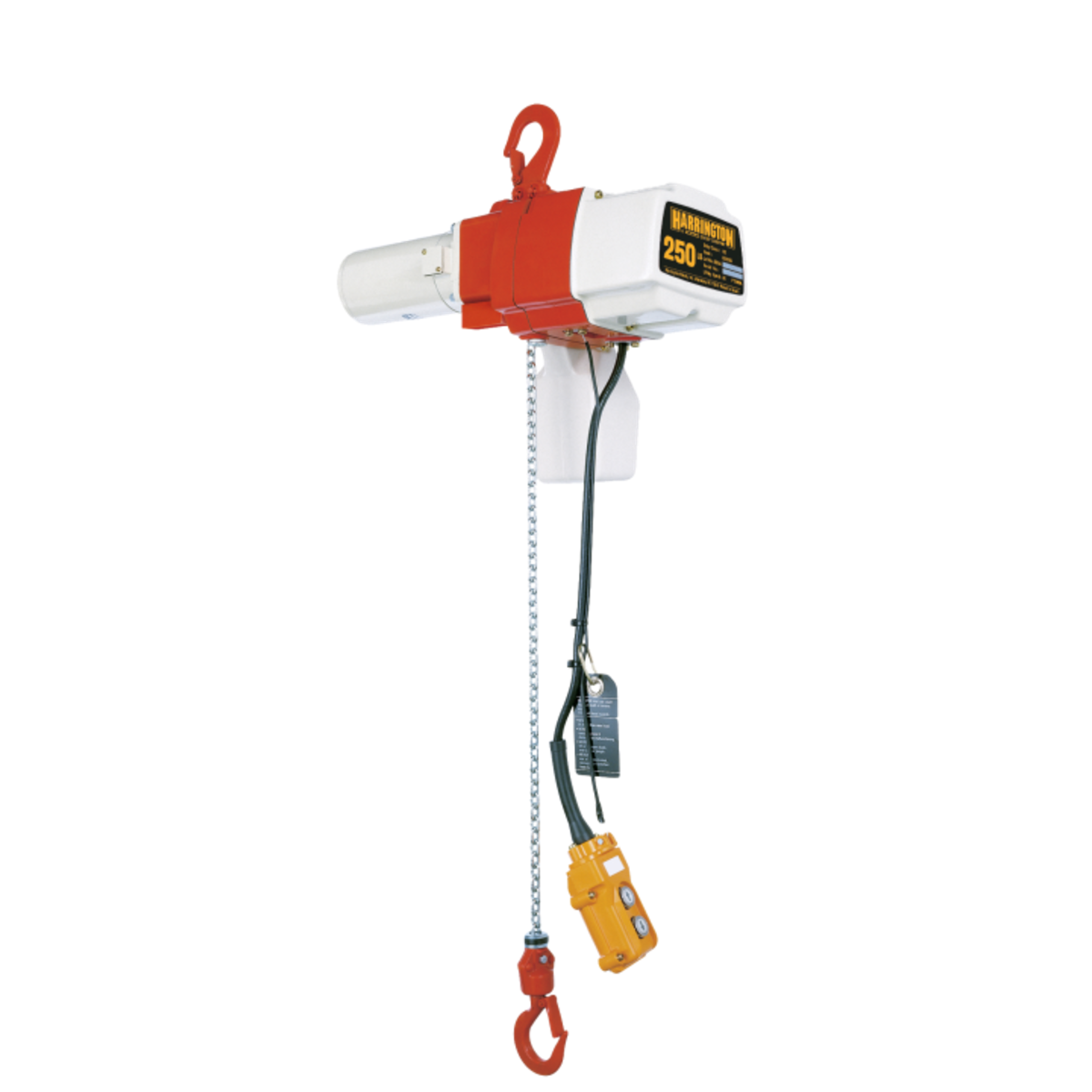

ED-DS Dual Speed Electric Chain Hoist 10' Lift-Capacity 250 lb.ED250DS Electric Chain Hoist HARRINGTON

Product Overview

The ED250DS-10 HARRINGTON ED-DS Dual Speed Electric Chain Hoist is the ultimate solution for all your heavy lifting requirements. Engineered for performance, this electric chain hoist is designed to manage loads up to 250 pounds with unmatched efficiency and ease. Say goodbye to strenuous manual labor and embrace an era of powerful, hands-free lifting.

Durability lies at the core of the ED250DS-10's design. Constructed with robust materials, this hoist is resilient enough to endure harsh industrial conditions, providing reliability you can count on. Whether your operations are in construction, manufacturing, or logistics, this hoist delivers exceptional performance, ensuring that even the most demanding tasks are completed without hassle.

• Dual-speed functionality for precise control of lifting speeds.
• 10-foot lift capacity allows for versatile applications in varied environments.
• Robust construction for maximum durability in challenging conditions.
• Designed for efficiency to significantly reduce manual labor and increase productivity.
• Safety features integrated to ensure secure lifting operations.
• Easy-to-use interface for quick setup and operation.

Experience the power and precision of the ED250DS-10 HARRINGTON ED-DS Dual Speed Electric Chain Hoist. This advanced hoist not only enhances lifting capabilities but also maximizes safety for operators. Its cutting-edge technology translates to optimal performance every time, making it an essential addition to any workspace. No job is too big or too small for this versatile piece of equipment.

Don’t compromise on your lifting equipment. By investing in the ED250DS-10 HARRINGTON ED-DS Dual Speed Electric Chain Hoist, you'll experience a remarkable difference in operational efficiency. Let this powerful hoist take your productivity to new heights and transform your lifting operations into a seamless and safe experience. Choose the best, because performance matters.

Product Specifications

.

Part Number:

ED250DS-10

Color:

Red

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 250 lb, 10 ft, Hook Mounted-No Trolley, Red=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container

Lift Speed:

26/10 fpm

Housing Width:

6 1/2 in

Manufacturers Warranty Length:

1 yr

Housing Depth:

5 in

Housing Length:

14 19/32 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

6 1/2 in

Body Depth:

5 in

For Minimum Beam Height:

Not Applicable

Body Length:

14 19/32 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

10 ft

Controller Cord Length:

6 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 in

Minimum Retracted Length:

12 13/32 in

Load Capacity:

250 lb

Minimum Between Hooks:

12 7/16 in

Motor HP:

0.4 hp

Phase:

1

Standards:

ASME B30.16, ASME HST-1, NFPA 70

Voltage:

120v

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Item:

Electric Chain Hoist

Reeving:

1

Thermal Protection:

No

Control:

110V Push Button Control Pendant

Control Cord:

6 ft

Number of Speeds:

2

Trolley Configuration:

Hook Mounted-No Trolley

Trolley Speed:

Not Applicable

Features:

Heat-Treated Gearing, High Speed Motor, Integrated Friction Clutch, Standard Double-Braking System

Material:

Die Cast Aluminum

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

No

Brake Type:

Weston Style Load Brake

Maximum Lift Speed:

26 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction Clutch

Minimum Lift Speed:

10 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

120

Duty Classification:

H2

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

3/8 hp

Headroom:

12 13/32 in

Includes Brake:

Brake Included

Hoist IP Rating:

IP54

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

250 lb

Current at Minimum Voltage:

0.208333333333333

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

0.208333333333333

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
