Product Overview

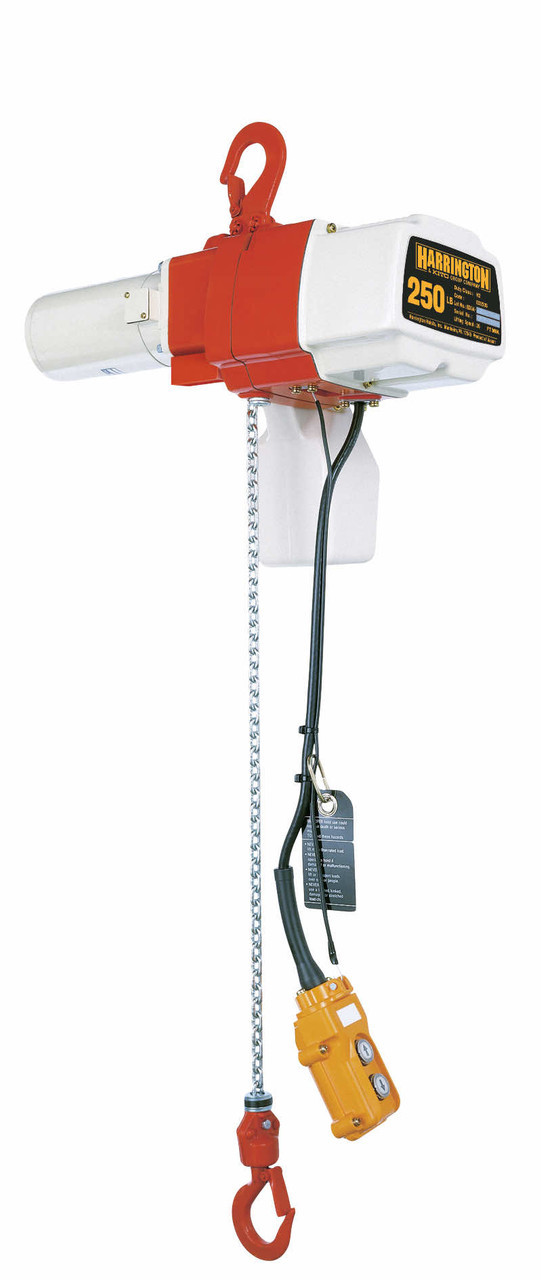

The ED220DS-10 HARRINGTON ED-DS Dual Speed Electric Chain Hoist brings a new level of efficiency and convenience to your material handling operations. With its 10' lift and Capacity ranging from 220 lb., this hoist is versatile enough to handle a wide range of tasks.One of the standout features of this hoist is its dual speed functionality. This allows for precise and controlled movement, giving you the ability to handle heavy objects or delicate materials with ease. With the ED220DS-10 HARRINGTON ED-DS, you can ensure that your products are handled safely and efficiently.Durability is a key factor in any industrial setting, and this hoist is built to withstand heavy use. Crafted with high-quality materials, it is designed to provide reliable performance for years to come. Say goodbye to frequent breakdowns and hello to a hoist that you can count on.The ergonomic design of the ED220DS-10 HARRINGTON ED-DS makes it easy and comfortable to operate. With user-friendly controls and intuitive features, you can handle your products quickly and efficiently. This hoist is designed to minimize operator fatigue and maximize productivity.Whether you work in construction, manufacturing, or any industry that requires efficient material handling, the ED220DS-10 HARRINGTON ED-DS Dual Speed Electric Chain Hoist is a must-have tool. Investing in this hoist will significantly boost your overall productivity and efficiency.Don't settle for hoists that slow down your operations and compromise safety. Upgrade to the ED220DS-10 HARRINGTON ED-DS Dual Speed Electric Chain Hoist and experience the difference it can make in your workflow. Invest in quality, durability, and efficiency with the ED220DS-10 HARRINGTON ED-DS.Product Specifications
.Product Videos
Videos Hide Videos Show Videos
Custom Field
Part Number ED220DS-10
Color White and Orange
Hoist Lift 10 ft
Product Electric Chain Hoist, 220 lb, 10 ft, Hook Mounted-No Trolley, White and Orange=Hoist Mount=Hook Mounted-No Trolley
Includes Safety Latch, Safety Standards
Lift Speed 43/10 fpm
Housing Width 6 13/64 in
Manufacturers Warranty Length 1 yr
Housing Depth 5 in
Housing Length 16 29/32 in
For Minimum Beam Flange Width Not Applicable
For Maximum Beam Flange Width Not Applicable
For Maximum Beam Height Not Applicable
MFR Warranty Length 1 yr
Body Width 6 7/32 in
Body Depth 5 in
For Minimum Beam Height Not Applicable
Body Length 16 29/32 in
Minimum Radius Curve Not Applicable
Maximum Lifting Length 10 ft
Controller Cord Length 7 ft
Trolley Wheel Diameter Not Applicable
Lifting Hook Opening Width 1 in
Minimum Retracted Length 12 13/32 in
Load Capacity 220 lb
Minimum Between Hooks 12 13/32 in
Motor HP 0.4 hp
Phase 1
Standards Safety Latch, Safety Standards
Voltage 120v
Fits Brand Harrington Hoists Inc
Lubrication Oil Bath
Clutch Friction
Reeving 1
Thermal Protection No
Control 7 ft
Control Cord 7 ft
Number of Speeds 2
Trolley Configuration Hook Mounted-No Trolley
Trolley Speed Not Applicable
Features Heat-Treated Gearing, High Speed Motor, Integrated Friction Clutch, Standard Double-Braking System
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Included
Overload Protection Included No
Brake Type Weston Style Load Brake
Maximum Lift Speed 43 fpm
Included Components Chain Container, Pendant, Safety Latch Hook
Fixed Lift Speed Not Applicable
Clutch Type Friction Clutch
Minimum Lift Speed 10 fpm
Pendant IP Rating IP65
Chain Finish Enamel
Controls Push Button Pendant=Mount Type=Hook Mounted-No Trolley
Starts and Stops per Hour 180
Duty Classification H2
Maximum Pulling Capacity Not Applicable
Number of Reeves 1
Motor Horsepower 3/8 hp
Headroom 12 13/32 in
Includes Brake Brake Included
Hoist IP Rating IP54
Lifting Hook Type Swivel Hook with Safety Latch
Maximum Lifting Capacity 220 lb
Current at Minimum Voltage 0.208333333333333
Trolley Wheel Material Not Applicable
Current at Maximum Voltage 0.208333333333333
Body Finish Enamel
Number of Load Chains 1
Body Material Aluminum
Trolley IP Rating Not Applicable
Programmable Programmable by Internal Controls
