Part Number
Part Number CX003-10
Color Silver
Hoist Lift 10 ft

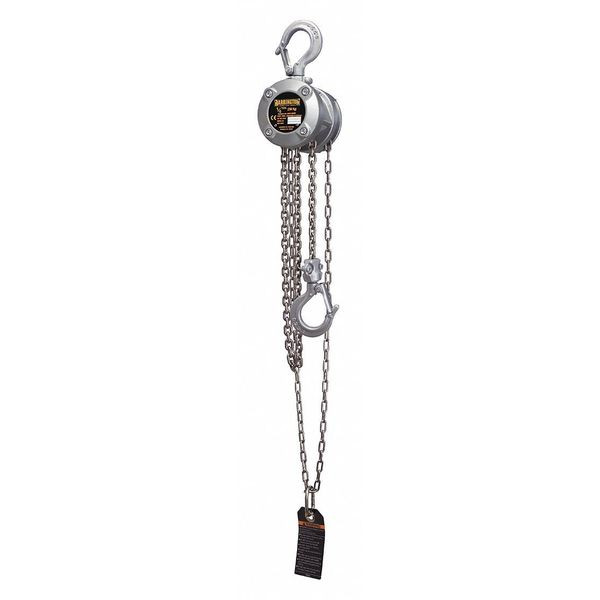

Product Mini Chain Hoist, 500 lb., Lift 10 ft.=Hoist Mount=Hook Mounted-No Trolley
Includes Over Load Limiter
Housing Width 3 1/4 in
Manufacturers Warranty Length 2 yr
Housing Depth 3 1/4 in
Housing Length 3 7/16 in
For Minimum Beam Flange Width Not Applicable
For Minimum Beam Flange Height Not Applicable
For Maximum Beam Flange Width Not Applicable
For Maximum Beam Flange Height Not Applicable
Body Width 3 5/16 in
Body Depth 3 1/2 in
Body Material Aluminum
Maximum Lifting Length 10 ft
Lifting Hook Opening Width 13/16 in
Minimum Retracted Length 8 1/2 in
Load Capacity 500 lb
Minimum Between Hooks 8 1/2 in
Standards ANSI/ASME B30.16, ANSI/ASME HST-2M
Item Manual Chain Hoist
Brake Weston Style
Trolley Configuration Hook Mounted-No Trolley
Features Advanced Design Overload Limiter, Completely Sealed Gears and Brake, Aluminum Housing, Wide Top and Bottom Hook Openings
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Included
Overload Protection Included Yes
Chain Grade Grade 100
Included Components Safety Latch Hooks
Chain Finish Nickel Plated
Controls =Mount Type=Hook Mounted-No Trolley
Maximum Pulling Capacity Not Applicable
Number of Reeves 1
Headroom 8 1/2 in
Includes Brake Brake Included
Lifting Hook Type Hook with Safety Latch
Maximum Lifting Capacity 500 lb
Number of Load Chains 1
