Harrington CF Series Hand Chain Hoist - 5 Ton - 10 ft Lift

Write a Review
$1,584.35 - $2,174.53
SKU: CF050-10
Condition: New
Availability: Subject to Availability
Weight: 82.00 LBS
Width: 9.00 (in)
Height: 8.00 (in)
Depth: 18.50 (in)
Shipping: Calculated at Checkout
Color: Yellow
Includes: Heat Treated Alloy Steel Hooks
Housing Width: 13 1/2 in
Manufacturers Warranty Length: 2 yr
Housing Depth: 6 in
Housing Length: 24 3/8 in
For Minimum Beam Flange Width: Not Applicable
For Minimum Beam Flange Height: Not Applicable
For Maximum Beam Flange Width: Not Applicable
For Maximum Beam Flange Height: Not Applicable
Body Width: 13 1/2 in
Body Depth: 6 in
Body Material: Die-Cast Aluminum
Maximum Lifting Length: 10 ft
Lifting Hook Opening Width: 1 13/16 in
Minimum Retracted Length: 24 13/32 in
Load Capacity: 10,000 - 19,999 lbs
Minimum Between Hooks: 24 1/2 in
Standards: ANSI/ASME B30.16, ANSI/ASME HST-2M
Item: Manual Chain Hoist
Brake: Weston Style
Trolley Configuration: Hook Mounted-No Trolley
Features: Heat-Treated Main Pinion Shaft, Lightweight Die-Cast Aluminum Housing, Reliable Weston-Style Load Brake, Smooth Running Pre-Lubricated Bearings
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Not Included
Overload Protection Included: No
Chain Grade: Grade 100
Included Components: Safety Latch Hooks
Chain Finish: Nickel Plated
Controls: Mount Type: Hook Mounted-No Trolley
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 3
Headroom: 24 13/32 in
Includes Brake: Brake Included
Lifting Hook Type: Hook with Safety Latch
Maximum Lifting Capacity: 10,000 lb
Number of Load Chains: 1
Capacity: 10,000 - 19,999 lbs
Lift: 10 ft
Adding to cart… The item has been added
Harrington CF Series Hand Chain Hoist - 5 Ton - 10 ft Lift

Harrington CF Series Hand Chain Hoist - 5 Ton - 10 ft Lift

$1,584.35 - $2,174.53

Harrington CF Series Hand Chain Hoist - 5 Ton - 10 ft Lift

$1,584.35 - $2,174.53

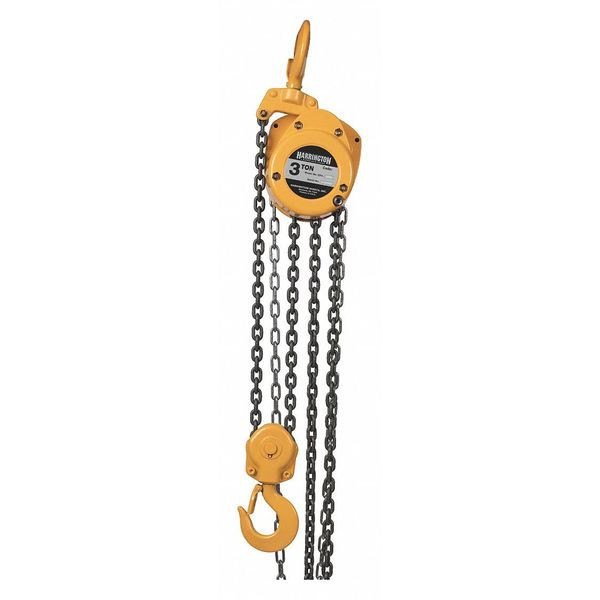

Enhance your lifting efficiency with the CF050 Hand Chain Hoist from Harrington. This high-performance hoist offers a simple yet durable design, ensuring outstanding strength and long-lasting service. Constructed with a die-cast aluminum body and heat-treated main pinion shaft, it is built to withstand even the toughest lifting tasks.The CF050 Hand Chain Hoist is packed with advanced features to deliver smooth and effortless lifting. Equipped with pre-lubricated ball bearings, precision machined gears, and a Weston-style load brake, it guarantees a seamless lifting experience. Say goodbye to straining yourself and worrying about maintenance with this reliable hoist.Versatility is another key feature of the CF050 Hand Chain Hoist. It is suitable for a variety of lifting applications, making it an ideal choice for all your lifting needs. Whether you have to lift half a ton or up to 5 Ton, this hoist comes in various Capacity to provide you with the power you require.When it comes to quality, Harrington is a trusted brand known for its reliable and durable products. The CF050 Hand Chain Hoist is no exception. With its exceptional performance and long-lasting service, this hoist guarantees the ability to withstand the demands of your lifting tasks.In summary, the CF050 Hand Chain Hoist by Harrington is a top-of-the-line lifting solution that combines simplicity, durability, and versatility. Its die-cast aluminum body, heat-treated main pinion shaft, and precision machined gears ensure longevity and strength. With pre-lubricated ball bearings and a Weston-style load brake, lifting becomes smooth and effortless. Available in various Capacity, it caters to a wide range of applications. Choose Harrington for reliable performance and exceptional quality. Upgrade your lifting equipment now with the CF050 Hand Chain Hoist and experience unmatched lifting efficiency.

All products sold by Harrington Hoists, Inc. (HHI) are warranted to be free from defects in material and workmanship from the date of shipment, with coverage periods varying by product type - 1 year for electric and air powered hoists (excluding (N)ER2 and EQ/SEQ hoists), powered trolleys, powered Tiger Track jibs and gantries, crane components, below-the-hook devices, and spare/replacement parts; 2 years for manual hoists and trolleys and beam clamps; 3 years for (N)ER2 hoists, EQ/SEQ hoists, (T)EM/(T)SEM hoists, and RY hoists; 5 years for manual Tiger Track jibs and gantries and hoist motor brakes for EQ/SEQ, (T)EM/(T)SEM, and RY; and 10 years for the (N)ER2 brake and TNER hoist motor brake - provided the buyer notifies HHI in writing within sixty (60) days of discovering any alleged defect and the product has been used according to manufacturer recommendations without abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. If HHI's inspection confirms a defect in material or workmanship within the applicable warranty period, HHI will, at its discretion, repair or replace the part or product free of charge (not including installation), with delivery made F.O.B. HHI's place of business for U.S. customers or FCA HHI's U.S. location for international customers under Incoterms 2010; no warranty claim will be honored without valid proof of purchase, the customer must obtain a Return Goods Authorization before shipping the product freight-prepaid along with an explanation of the complaint, repaired products remain covered for the rest of the original warranty period, replacement parts installed after the original warranty period carry only a one-year replacement warranty (not including installation) from installation, and if no defect is found or the defect falls outside the warranty's scope, the customer is responsible for return shipping costs. HHI disclaims all other express or implied warranties, including merchantability or fitness for a particular purpose, and will not be liable for death, personal injury, property damage, or incidental, contingent, special, or consequential damages, losses, or expenses arising from the use or misuse of its products, regardless of whether such damage results from any act or failure to act by HHI, whether negligent, willful, or otherwise.
