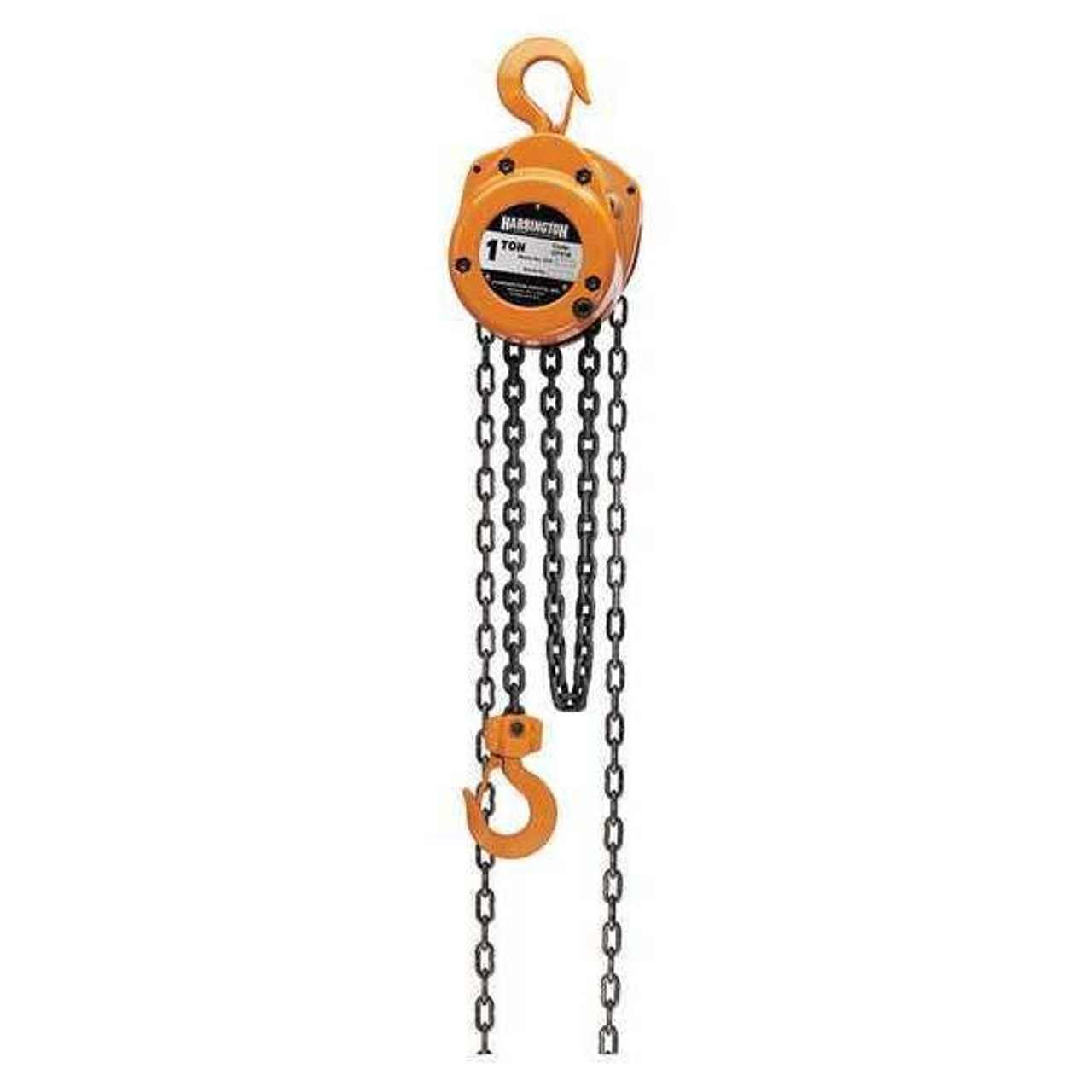

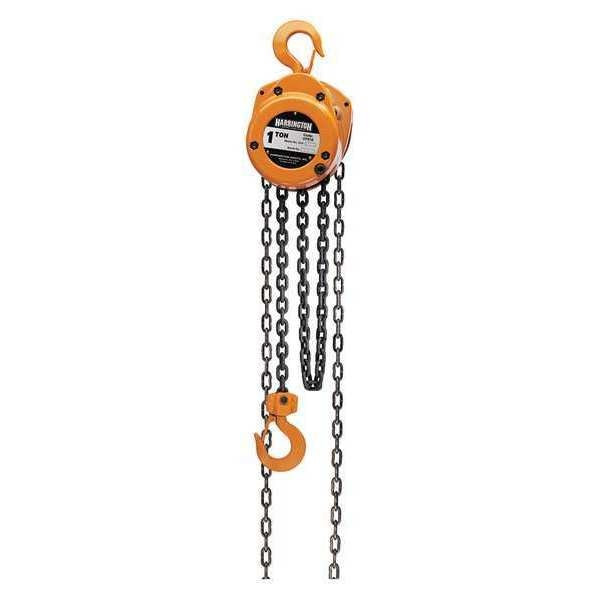

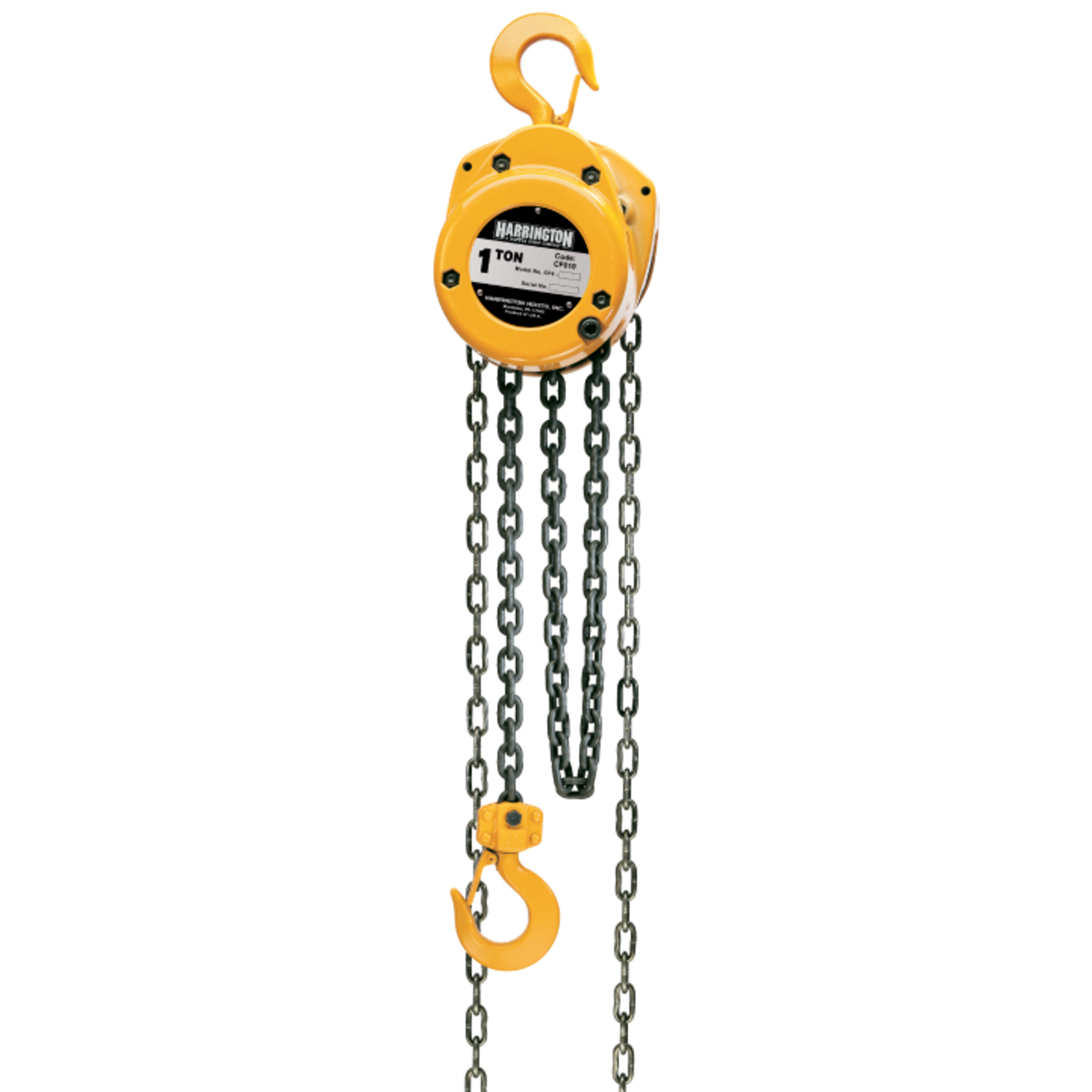

Harrington CF Series Hand Chain Hoist - 1 Ton - 10 ft Lift

Write a Review
$416.17 - $616.95
SKU: CF010-10
Condition: New
Availability: Subject to Availability
Weight: 32.00 LBS
Width: 7.00 (in)
Height: 6.25 (in)
Depth: 13.50 (in)
Shipping: Calculated at Checkout
Color: Yellow
Housing Width: 7 in
Manufacturers Warranty Length: 2 yr
Housing Depth: 5 3/4 in
Housing Length: 14 9/16 in
For Minimum Beam Flange Width: Not Applicable
For Minimum Beam Flange Height: Not Applicable
For Maximum Beam Flange Width: Not Applicable
For Maximum Beam Flange Height: Not Applicable
Body Width: 6 29/32 in
Body Depth: 5 13/16 in
Body Material: Die-Cast Aluminum
Maximum Lifting Length: 10 ft
Lifting Hook Opening Width: 1 3/32 in
Minimum Retracted Length: 14 19/32 in
Load Capacity: 1,000 - 2,499 lbs
Minimum Between Hooks: 14 3/4 in
Standards: ANSI/ASME B30.16, ANSI/ASME HST-2M
Item: Manual Chain Hoist
Brake: Weston Style
Trolley Configuration: Hook Mounted-No Trolley
Features: Heat-Treated Main Pinion Shaft, Lightweight Die-Cast Aluminum Housing, Reliable Weston-Style Load Brake, Smooth Running Pre-Lubricated Bearings
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Not Included
Overload Protection Included: No
Chain Grade: Grade 100
Included Components: Safety Latch Hooks
Chain Finish: Nickel Plated
Controls: Mount Type: Hook Mounted-No Trolley
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Headroom: 14 19/32 in
Includes Brake: Brake Included
Lifting Hook Type: Hook with Safety Latch
Maximum Lifting Capacity: 2,000 lb
Number of Load Chains: 1
Capacity: 1,000 - 2,499 lbs
Lift: 10 ft
Adding to cart… The item has been added
Harrington CF Series Hand Chain Hoist - 1 Ton - 10 ft Lift

Harrington CF Series Hand Chain Hoist - 1 Ton - 10 ft Lift

$416.17 - $616.95

Harrington CF Series Hand Chain Hoist - 1 Ton - 10 ft Lift

$416.17 - $616.95

Experience the unbeatable durability and exceptional performance of the CF010 HARRINGTON CF Hand Chain Hoist. This hoist is carefully crafted to combine simplicity with maximum functionality, providing you with a reliable and efficient lifting solution.Designed to withstand the test of time, the CF010 features a robust die-cast aluminum body, ensuring it can handle even the toughest lifting tasks. Its high-strength heat-treated main pinion shaft and load gear further enhance its durability, guaranteeing long-lasting service and dependable performance.Say goodbye to cumbersome maintenance routines with the CF010 pre-lubricated ball bearings and precision machined gears. These features enable smooth and easy lifting, reducing the need for frequent upkeep and allowing you to focus on the task at hand. Additionally, the Weston-style load brake adds an extra layer of safety, providing controlled and secure lifting every time.With Capacity ranging from 1 tons, the CF010 is capable of handling various loads with ease. Whether you're lifting heavy equipment, machinery, or other substantial objects, this hoist ensures both strength and convenience. Its user-friendly design allows for effortless operation, making it suitable for professionals and beginners alike.Elevate your lifting experience with the CF010 HARRINGTON CF Hand Chain Hoist. This reliable and versatile hoist is the perfect choice for any industrial or commercial setting. Whether you're working in a warehouse, construction site, or manufacturing facility, this hoist will exceed your expectations and provide exceptional performance every time. Trust Harrington's renowned quality and invest in the CF010 today!

All products sold by Harrington Hoists, Inc. (HHI) are warranted to be free from defects in material and workmanship from the date of shipment, with coverage periods varying by product type - 1 year for electric and air powered hoists (excluding (N)ER2 and EQ/SEQ hoists), powered trolleys, powered Tiger Track jibs and gantries, crane components, below-the-hook devices, and spare/replacement parts; 2 years for manual hoists and trolleys and beam clamps; 3 years for (N)ER2 hoists, EQ/SEQ hoists, (T)EM/(T)SEM hoists, and RY hoists; 5 years for manual Tiger Track jibs and gantries and hoist motor brakes for EQ/SEQ, (T)EM/(T)SEM, and RY; and 10 years for the (N)ER2 brake and TNER hoist motor brake - provided the buyer notifies HHI in writing within sixty (60) days of discovering any alleged defect and the product has been used according to manufacturer recommendations without abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. If HHI's inspection confirms a defect in material or workmanship within the applicable warranty period, HHI will, at its discretion, repair or replace the part or product free of charge (not including installation), with delivery made F.O.B. HHI's place of business for U.S. customers or FCA HHI's U.S. location for international customers under Incoterms 2010; no warranty claim will be honored without valid proof of purchase, the customer must obtain a Return Goods Authorization before shipping the product freight-prepaid along with an explanation of the complaint, repaired products remain covered for the rest of the original warranty period, replacement parts installed after the original warranty period carry only a one-year replacement warranty (not including installation) from installation, and if no defect is found or the defect falls outside the warranty's scope, the customer is responsible for return shipping costs. HHI disclaims all other express or implied warranties, including merchantability or fitness for a particular purpose, and will not be liable for death, personal injury, property damage, or incidental, contingent, special, or consequential damages, losses, or expenses arising from the use or misuse of its products, regardless of whether such damage results from any act or failure to act by HHI, whether negligent, willful, or otherwise.
