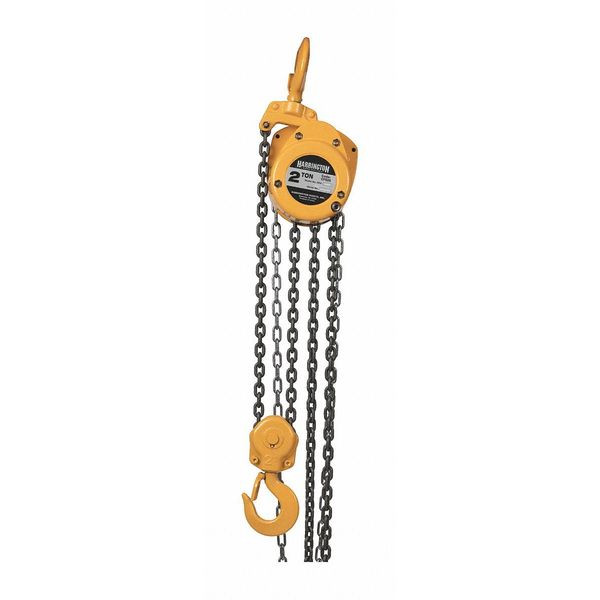

HARRINGTON CF Hand Chain Hoist 10' Lift-Capacity 2 Tons CF020 Hand Chain Hoist

Product Overview

The CF020-10 HARRINGTON CF Hand Chain Hoist is a reliable and robust tool that is designed to handle even the toughest lifting tasks. With its die-cast aluminum body, this hoist is lightweight yet incredibly strong, allowing it to withstand heavy loads without compromising on performance.One of the standout features of the CF020-10 HARRINGTON CF Hand Chain Hoist is its smooth and easy lifting capabilities. Equipped with pre-lubricated ball bearings and precision machined gears, this hoist ensures effortless lifting with minimal friction and resistance. The Weston-style load brake adds an extra layer of safety, providing reliable and controlled braking power.Simplicity is key with the CF020-10 HARRINGTON CF Hand Chain Hoist. It boasts a straightforward design that is easy to use without sacrificing quality and performance. Whether you are a professional in the industrial sector or a DIY enthusiast, this hoist guarantees efficient and effective lifting every time.Choose from a range of Capacity, from 2 Tons, to suit your specific needs. The 10' lift height provides ample space for lifting tasks in various settings. With its long service life and low maintenance requirements, this hoist is a cost-effective investment for any workplace.Upgrade your lifting capabilities with the CF020-10 HARRINGTON CF Hand Chain Hoist and experience its superior performance and durability. Whether you are lifting heavy machinery, equipment, or materials, this hoist is designed to deliver exceptional results every time. Don't settle for anything less than the best-choose the CF020-10 HARRINGTON CF Hand Chain Hoist for all your lifting needs.

Product Specifications

.

Part Number:

CF020-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Manual Chain Hoist, 4000 lb., Lift 10 ft.=Hoist Mount=Hook Mounted-No Trolley

Housing Width:

8 in

Manufacturers Warranty Length:

2 yr

Housing Depth:

5 3/4 in

Housing Length:

20 in

For Minimum Beam Flange Width:

Not Applicable

For Minimum Beam Flange Height:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Height:

Not Applicable

Body Width:

8 in

Body Depth:

5 13/16 in

Body Material:

Die-Cast Aluminum

Maximum Lifting Length:

10 ft

Lifting Hook Opening Width:

1 13/32 in

Minimum Retracted Length:

20 3/32 in

Load Capacity:

4,000 lb

Minimum Between Hooks:

20 in

Standards:

ANSI/ASME B30.16, ANSI/ASME HST-2M

Item:

Manual Chain Hoist

Brake:

Weston Style

Trolley Configuration:

Hook Mounted-No Trolley

Features:

Heat-Treated Main Pinion Shaft, Lightweight Die-Cast Aluminum Housing, Reliable Weston-Style Load Brake, Smooth Running Pre-Lubricated Bearings

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Not Included

Overload Protection Included:

No

Chain Grade:

Grade 100

Included Components:

Safety Latch Hooks

Chain Finish:

Nickel Plated

Controls:

=Mount Type=Hook Mounted-No Trolley

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

2

Headroom:

20 3/32 in

Includes Brake:

Brake Included

Lifting Hook Type:

Hook with Safety Latch

Maximum Lifting Capacity:

4,000 lb

Number of Load Chains:

1
