Product Overview

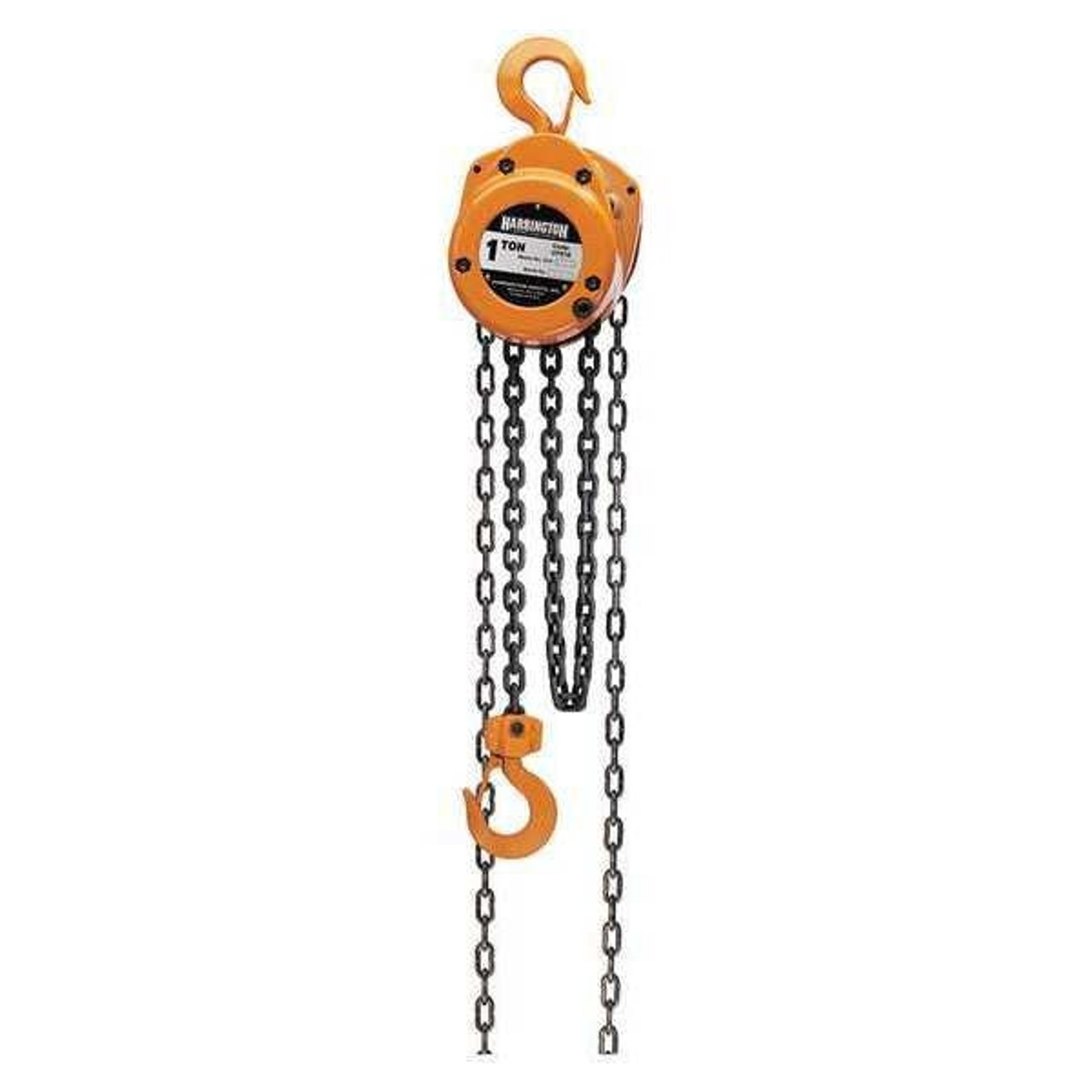

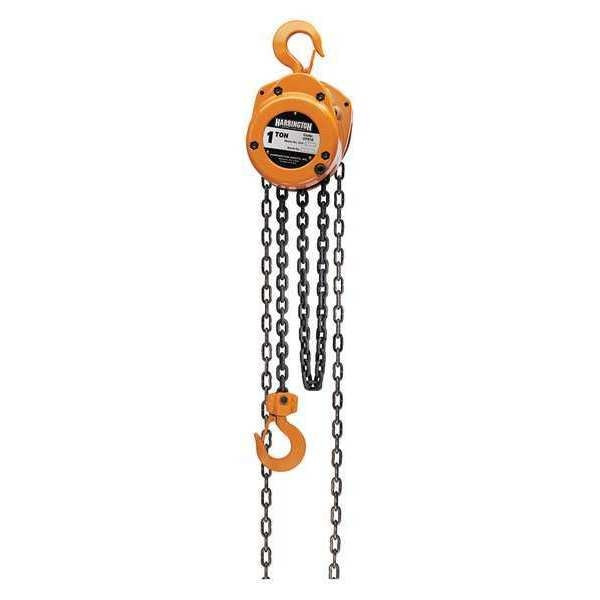

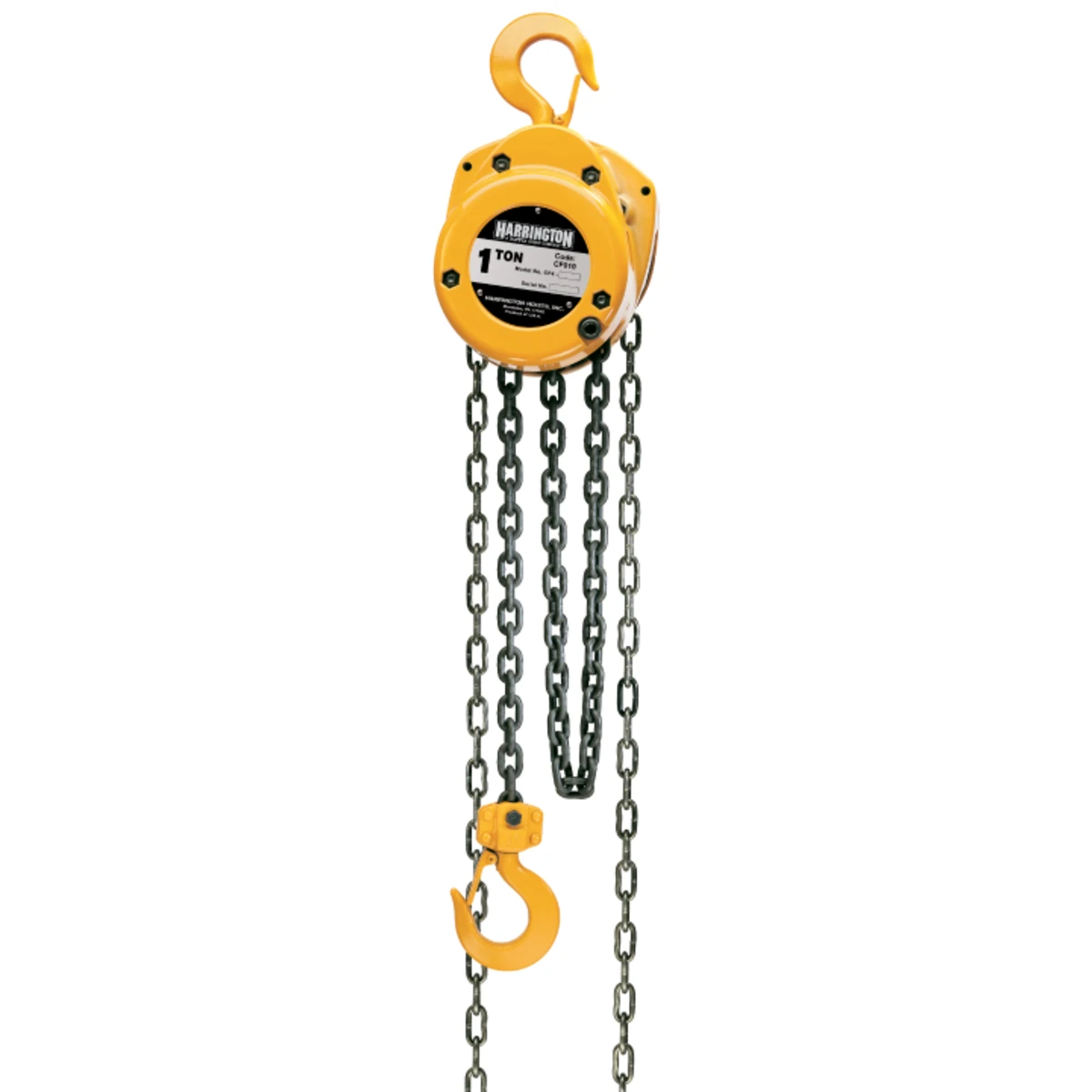

The CF015-10 HARRINGTON CF Hand Chain Hoist is a high-quality and durable lifting tool designed for simplicity and performance. With its die-cast aluminum body, heat-treated main pinion shaft, and load gear, this hoist is built to withstand even the toughest jobs. It is the go-to choice for professionals and DIY enthusiasts alike.One of the standout features of this hoist is its pre-lubricated ball bearings and precision machined gears. This ensures smooth and easy lifting, reducing operator fatigue. The Weston-style load brake provides precise load control, guaranteeing a safe and secure lifting experience every time.With a lift capacity of 10', the CF015-10 is suitable for a wide range of applications. Whether you need to lift heavy machinery, furniture, or other equipment, this hoist will get the job done efficiently and effectively. Its compact design allows for easy maneuverability in tight spaces, making it an essential tool for any workspace.Not only does the CF015-10 deliver exceptional performance, but it also requires minimal maintenance. This means you can focus on your work without the hassle of constant upkeep. Its durable construction ensures a long service life, providing you with reliable lifting power for years to come.When it comes to lifting, the CF015-10 HARRINGTON CF Hand Chain Hoist is the top choice. Its simplicity, performance, and durability make it an essential tool for any professional or DIY enthusiast. Trust in the CF015-10 to handle your lifting needs, and experience the difference it can make in your projects.Product Specifications
.Product Videos
Videos Hide Videos Show Videos
Custom Field
Part Number CF015-10
Color Yellow
Hoist Lift 10 ft
Product Manual Chain Hoist, 3000 lb., Lift 10 ft.=Hoist Mount=Hook Mounted-No Trolley
Housing Width 8 in
Manufacturers Warranty Length 2 yr
Housing Depth 6 in
Housing Length 17 5/16 in
For Minimum Beam Flange Width Not Applicable
For Minimum Beam Flange Height Not Applicable
For Maximum Beam Flange Width Not Applicable
For Maximum Beam Flange Height Not Applicable
Body Width 8 in
Body Depth 6 in
Body Material Die-Cast Aluminum
Maximum Lifting Length 10 ft
Lifting Hook Opening Width 1 5/16 in
Minimum Retracted Length 17 5/16 in
Load Capacity 3,000 lb
Minimum Between Hooks 17 1/4 in
Standards ANSI/ASME B30.16, ANSI/ASME HST-2M
Item Manual Chain Hoist
Brake Weston Style
Trolley Configuration Hook Mounted-No Trolley
Features Heat-Treated Main Pinion Shaft, Lightweight Die-Cast Aluminum Housing, Reliable Weston-Style Load Brake, Smooth Running Pre-Lubricated Bearings
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Not Included
Overload Protection Included No
Chain Grade Grade 100
Included Components Safety Latch Hooks
Chain Finish Nickel Plated
Controls =Mount Type=Hook Mounted-No Trolley
Maximum Pulling Capacity Not Applicable
Number of Reeves 1
Headroom 17 5/16 in
Includes Brake Brake Included
Lifting Hook Type Hook with Safety Latch
Maximum Lifting Capacity 3,000 lb
Number of Load Chains 1
