Part Number
Part Number CF010-20
Color Yellow
Hoist Lift 20 ft

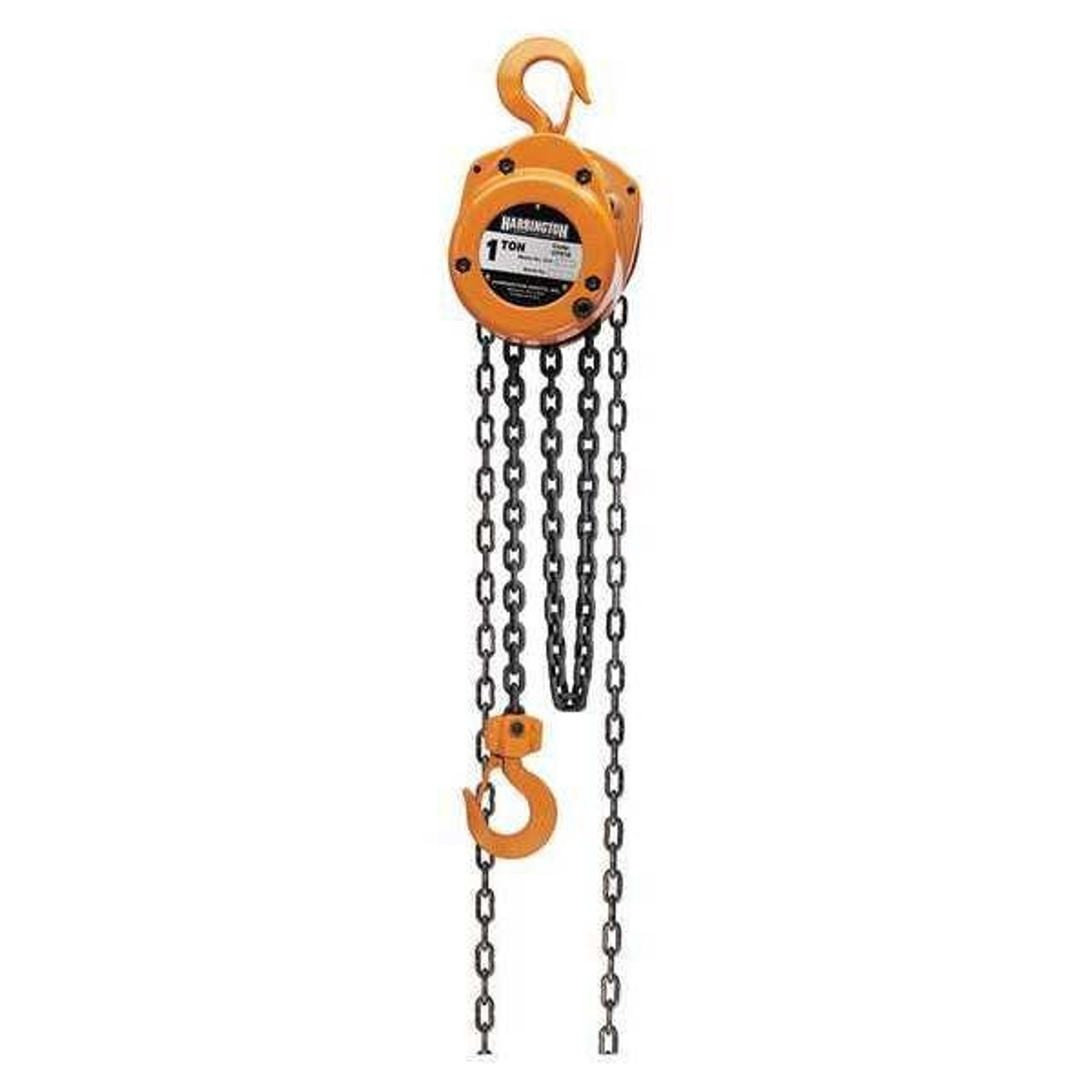

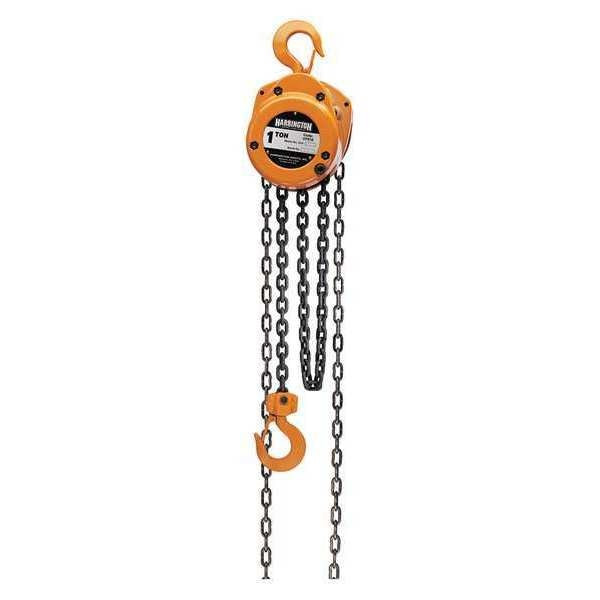

Product Manual Chain Hoist, 2000 lb., Lift 20 ft.=Hoist Mount=Hook Mounted-No Trolley
Housing Width 7 in
Manufacturers Warranty Length 2 yr
Housing Depth 5 3/4 in
Housing Length 14 9/16 in
For Minimum Beam Flange Width Not Applicable
For Minimum Beam Flange Height Not Applicable
For Maximum Beam Flange Width Not Applicable
For Maximum Beam Flange Height Not Applicable
Body Width 6 29/32 in
Body Depth 5 13/16 in
Body Material Die-Cast Aluminum
Maximum Lifting Length 20 ft
Lifting Hook Opening Width 1 3/32 in
Minimum Retracted Length 14 19/32 in
Load Capacity 2,000 lb
Minimum Between Hooks 14 3/4 in

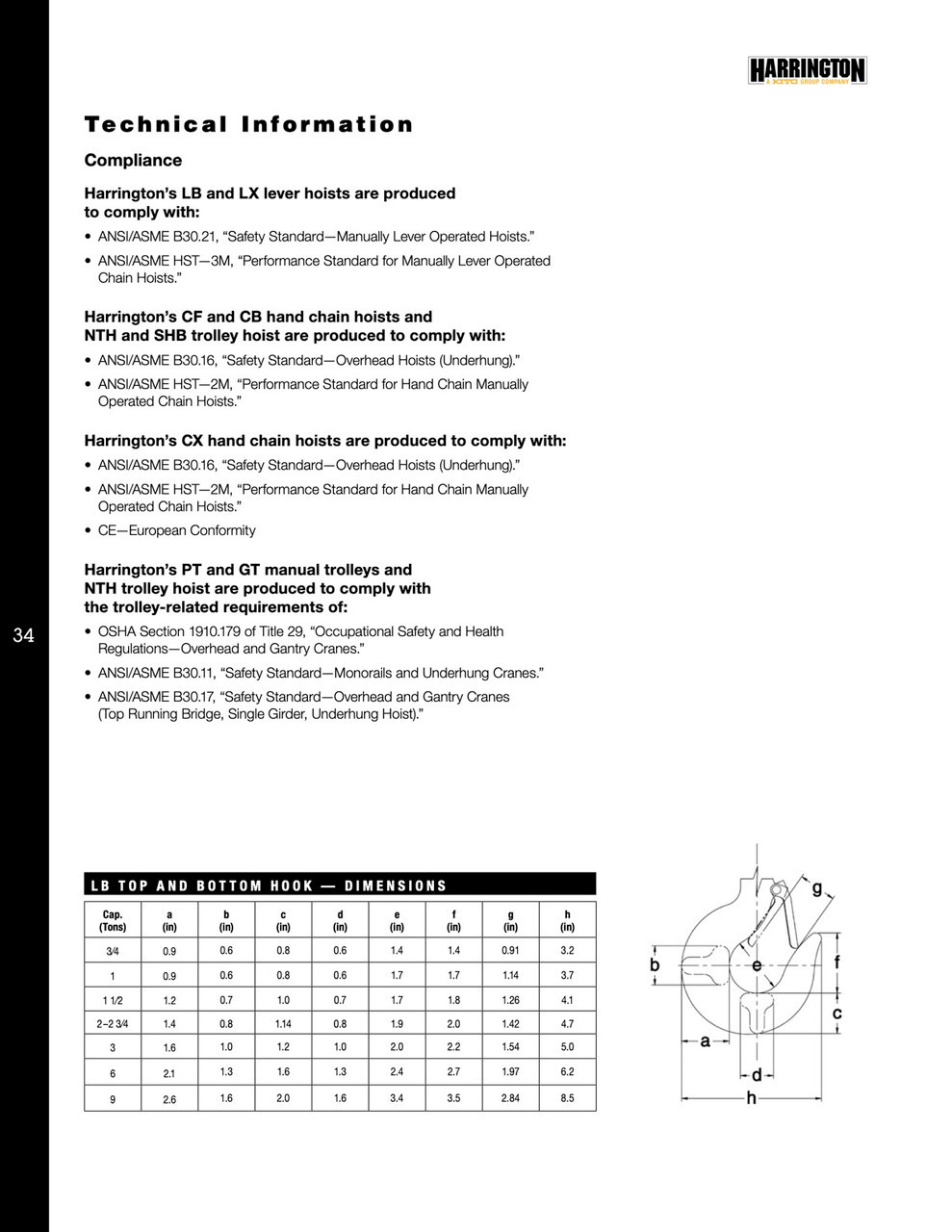

Standards ANSI/ASME B30.16, ANSI/ASME HST-2M
Item Manual Chain Hoist
Brake Weston Style
Trolley Configuration Hook Mounted-No Trolley
Features Heat-Treated Main Pinion Shaft, Lightweight Die-Cast Aluminum Housing, Reliable Weston-Style Load Brake, Smooth Running Pre-Lubricated Bearings
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Not Included
Overload Protection Included No
Chain Grade Grade 100
Included Components Safety Latch Hooks
Chain Finish Nickel Plated
Controls =Mount Type=Hook Mounted-No Trolley
Maximum Pulling Capacity Not Applicable
Number of Reeves 1
Headroom 14 19/32 in
Includes Brake Brake Included
Lifting Hook Type Hook with Safety Latch
Maximum Lifting Capacity 2,000 lb
Number of Load Chains 1
