SKU:
CB080-10-10
Condition:
New
Availability:
In stock
Weight:
124.00 LBS
Shipping:
Free Shipping
Product:

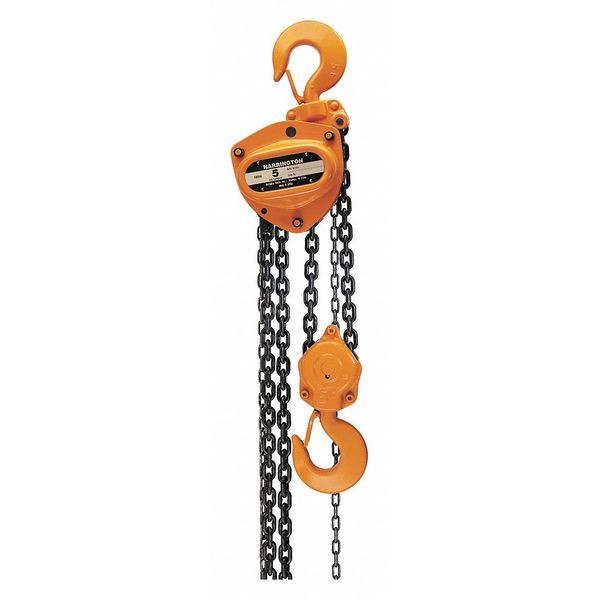

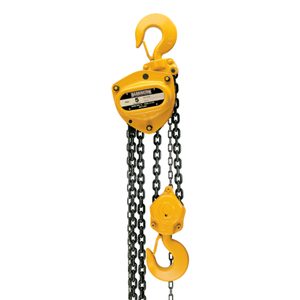

Manual Chain Hoist, 16000lb, 10ft Lift
sku:
CB080-10
Load Capacity:
16,000 lb
Hoist Mount:
Hook Mounted - No Trolley
Hoist Overload Protection:
Yes
Pull to Lift Rated Load:
75 lb
Min Between Hooks:
21 in
Manufacturers Warranty Length:
2 yr
For Min Beam Flange Height:
Not Applicable
Lifting Hook Opening Width:
2 29/22 in
Body Depth:
7 19/22 in
For Min Beam Flange Width:
Not Applicable
Mfr Warranty Length:
2 yr
For Max Beam Flange Height:
Not Applicable
Minimum Retracted Length:
20 5/16 in
Maximum Lifting Length:
10 ft
Body Width:
14 11/16 in
Chain Length:
11 ft
Lever Length:
Not Applicable
For Max Beam Flange Width:
Not Applicable
Hoist Lift:
10 ft
Trolley Configuration:
Hook Mounted - No Trolley
Includes:
Slip Clutch
Brake:
Weston Style Brake
Item:
Manual Chain Hoist

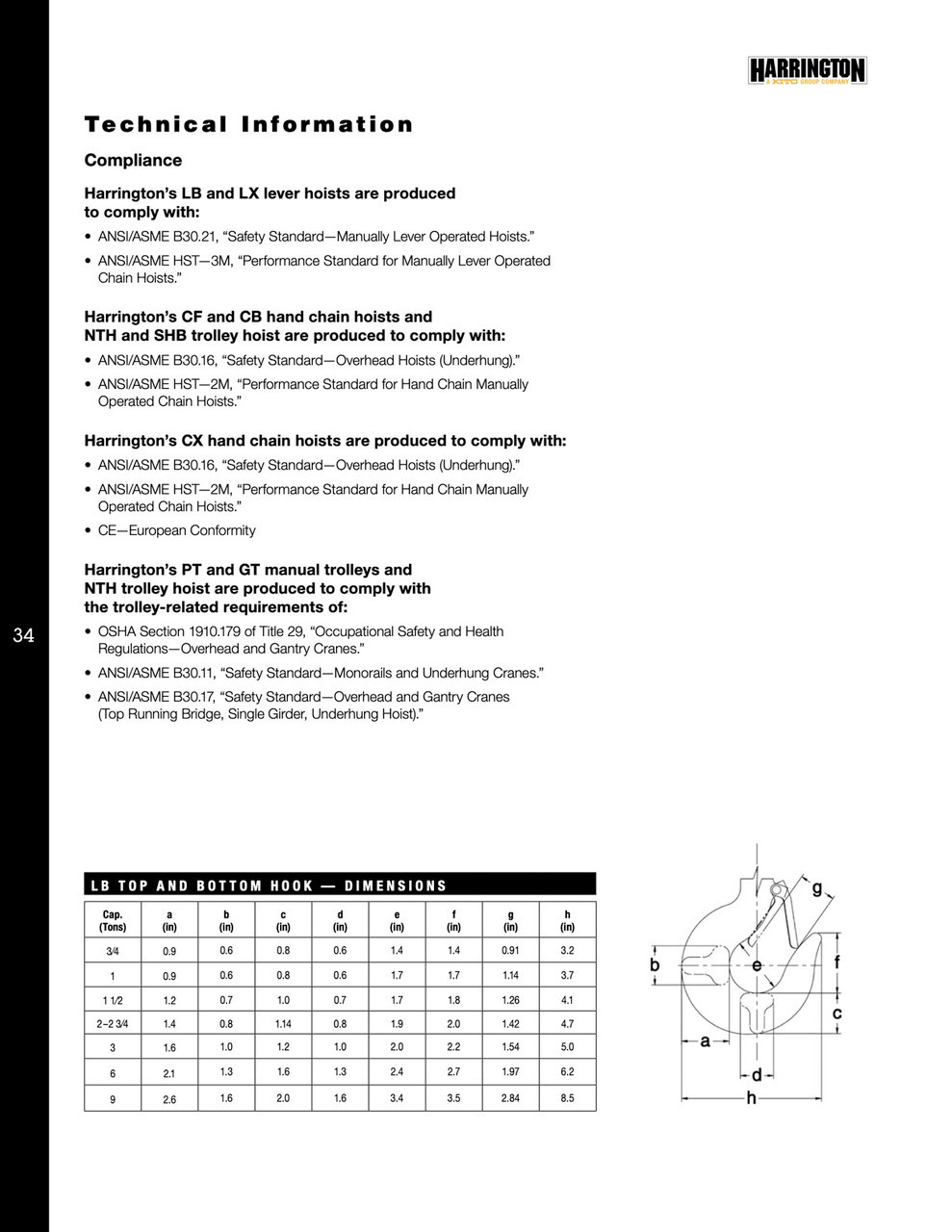

Standards:
ANSI/ASME B20.16, ANSI/ASME HST-2M
Color:
Yellow
Features:
Bearing-Supported High-Strength Pinion, Double Pawl Springs, High Impact Steel Housing, Maintenance-Free Slip Clutch
Maximum Pulling Capacity:
Not Applicable
Overload Protection Included:
Yes
Number of Load Chains:
1
Maximum Lifting Capacity:
16,000 lb
Resistance Properties:
Abrasion Resistant, Corrosion Resistant
Includes Brake:
Brake Included
Brake Type:
Weston Style
Operating Position:
Vertical
Mount Type:
Hook Mounted - No Trolley
Chain Grade:
Grade 100
Lifting Hook Type:
Hook with Safety Latch
Chain Material:
Manganese Alloy
Included Components:
Safety Latch Hooks
Number of Reeves:
2
Includes Clutch:
Clutch Included
Body Material:
Steel
Power Source:
Manual
Lifting Hook Material:
Carbon Steel
Headroom:
20 5/16 in
