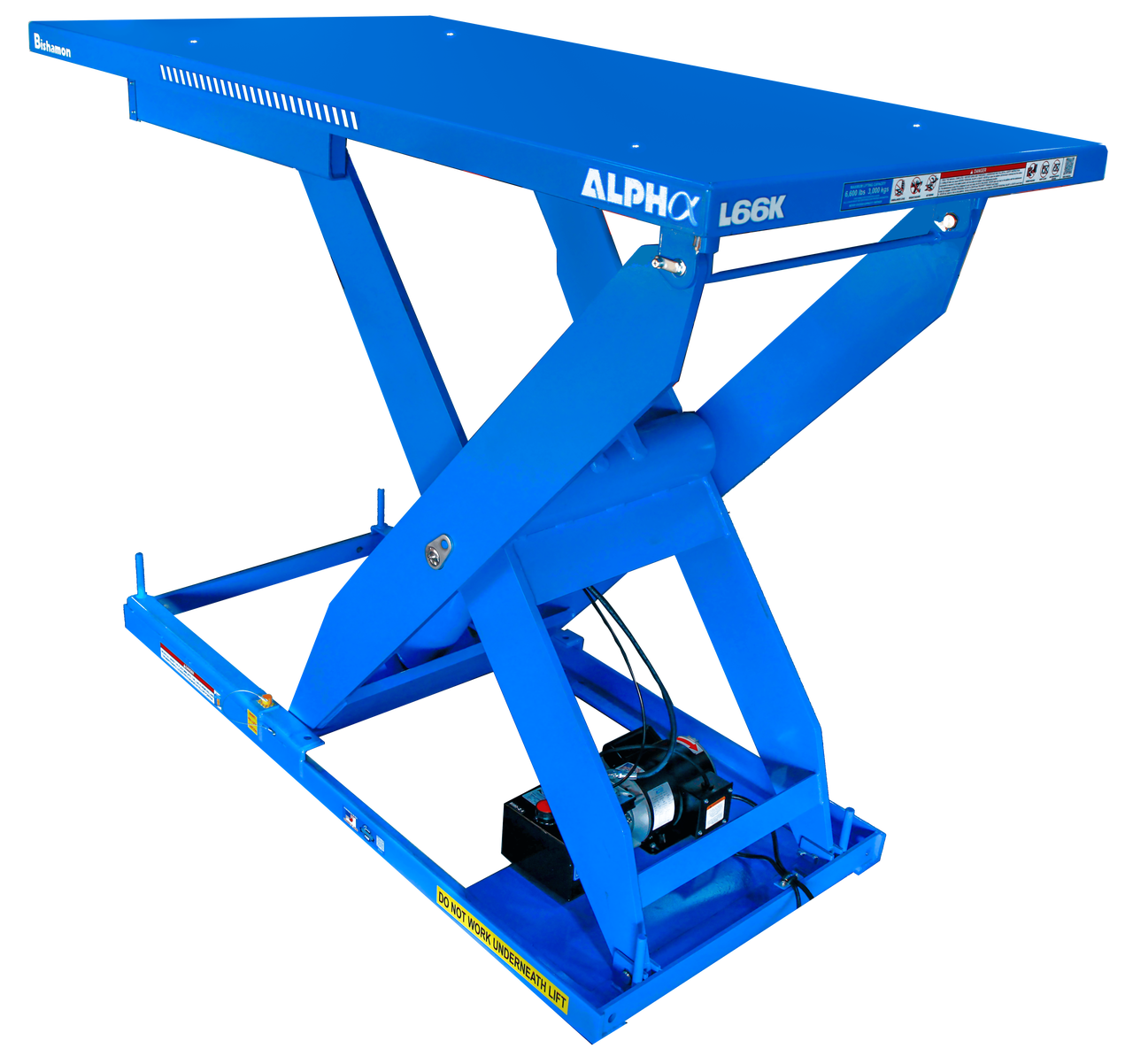

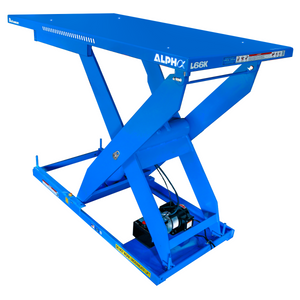

ALPHA Electric-Hydraulic Lift Tables - L66K-TT4848-230-1

The L66K-TT4848-230-1 Alpha Electric-Hydraulic Lift Table with Turntable is a high-capacity, ergonomically engineered solution designed to improve efficiency, enhance safety, and streamline heavy-duty material handling operations. As part of the advanced Alpha Series, this lift table combines a powerful 230V single-phase electric-hydraulic system with a large 48" x 48" rotating turntable platform, allowing operators to easily position, access, and handle loads with minimal physical strain.

With a robust 6,600 lb lifting capacity, this lift table is ideal for manufacturing facilities, warehouses, assembly lines, and distribution centers where heavy materials must be lifted and positioned repeatedly. The integrated turntable provides smooth 360-degree rotation, enabling full access to all sides of a load without the need for repositioning. This reduces manual handling, increases productivity, and helps prevent workplace injuries associated with repetitive lifting and awkward movements.

The electric-hydraulic scissor lift mechanism delivers smooth, controlled lifting and lowering for precise load positioning. A reinforced scissor structure ensures stable performance even under maximum capacity, while integrated flow-limiting valves provide controlled descent and prevent sudden drops —enhancing both operator safety and load protection.

Constructed with a heavy-duty steel frame and reinforced scissor arms, the L66K-TT4848-230-1 is built to withstand demanding industrial environments. Premium high-load ball bearings and continuous axle rollers ensure smooth operation and long-term reliability, supporting up to 35,000 cycles per year for high-volume applications.

The unit features a compact, integrated hydraulic power unit and reservoir, maximizing efficiency while minimizing space requirements. Its plug-and-play control system allows for quick installation and simple operation, helping reduce downtime and improve workflow integration.

Maintenance is minimal thanks to self-lubricating, maintenance-free bushings, eliminating the need for routine lubrication. A built-in maintenance safety pin ensures safe inspections and servicing. The lift table is compliant with ANSI MH29.1:2020 standards, and all electrical components are UL and CSA certified, ensuring top-tier safety and reliability.

Backed by an industry-leading 5-year parts and 2-year labor warranty (U.S. & Canada), the L66K-TT4848-230-1 Alpha Lift Table with Turntable is a dependable, long-term investment for industrial material handling.

Specifications

• Model / SKU: L66K-TT4848-230-1
• Series: Alpha Electric-Hydraulic Lift Tables
• Lifting Capacity: 6,600 lbs
• Power Supply: 230V, single-phase electric power
• Lift Mechanism: Electric-hydraulic scissor lift system
• Platform Size: 48" x 48" turntable platform
• Turntable Function: 360 ° rotation for full load accessibility
• Operation: Powered lifting with manual or assisted rotation
• Bearings: High-load ball bearings for smooth performance
• Rollers: Continuous axle rollers for durability and stability
• Safety Features: Flow-limiting valve; maintenance safety pin
• Power Unit: Compact, integrated hydraulic power unit and reservoir
• Controls: Plug-and-play, user-friendly interface
• Construction: Heavy-duty steel frame with reinforced scissor design
• Bushings: Self-lubricating, maintenance-free
• Cycle Rating: Up to 35,000 cycles per year
• Compliance: ANSI MH29.1:2020; UL/CSA certified electrical components
• Applications: Manufacturing, warehousing, assembly, packaging, and maintenance operations
• Warranty: 5-year parts / 2-year labor (U.S. & Canada)

The Alpha L66K-TT4848-230-1 Lift Table with Turntable delivers the perfect balance of power, precision, and ergonomic efficiency, making it an essential solution for high-demand industrial material handling tasks.
