Bishamon Lift Table, 2200 lb Capacity, 48 x 48 Turntable, 230V 1-Phase Hand Control
Bishamon Lift Table, 2200 lb Capacity, 48 x 48 Turntable, 230V 1-Phase Hand Control

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    FREE in house engineering and design assistance

  • Wordwide Delivery

    Free shipping on all Harrington orders over 500LBS

Bishamon Lift Table, 2200 lb Capacity, 48 x 48 Turntable, 230V 1-Phase Hand Control

Write a Review
$5,123.30 - $6,279.00
SKU: L22K-TT4848-230-1-H
Condition: New
Weight: 770.00 LBS
Width: 48.00 (in)
Height: 18.00 (in)
Depth: 60.00 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Bishamon Lift Table, 2200 lb Capacity, 48 x 48 Turntable, 230V 1-Phase Hand Control

Bishamon Lift Table, 2200 lb Capacity, 48 x 48 Turntable, 230V 1-Phase Hand Control

$5,123.30 - $6,279.00

Bishamon Lift Table, 2200 lb Capacity, 48 x 48 Turntable, 230V 1-Phase Hand Control

$5,123.30 - $6,279.00
Description

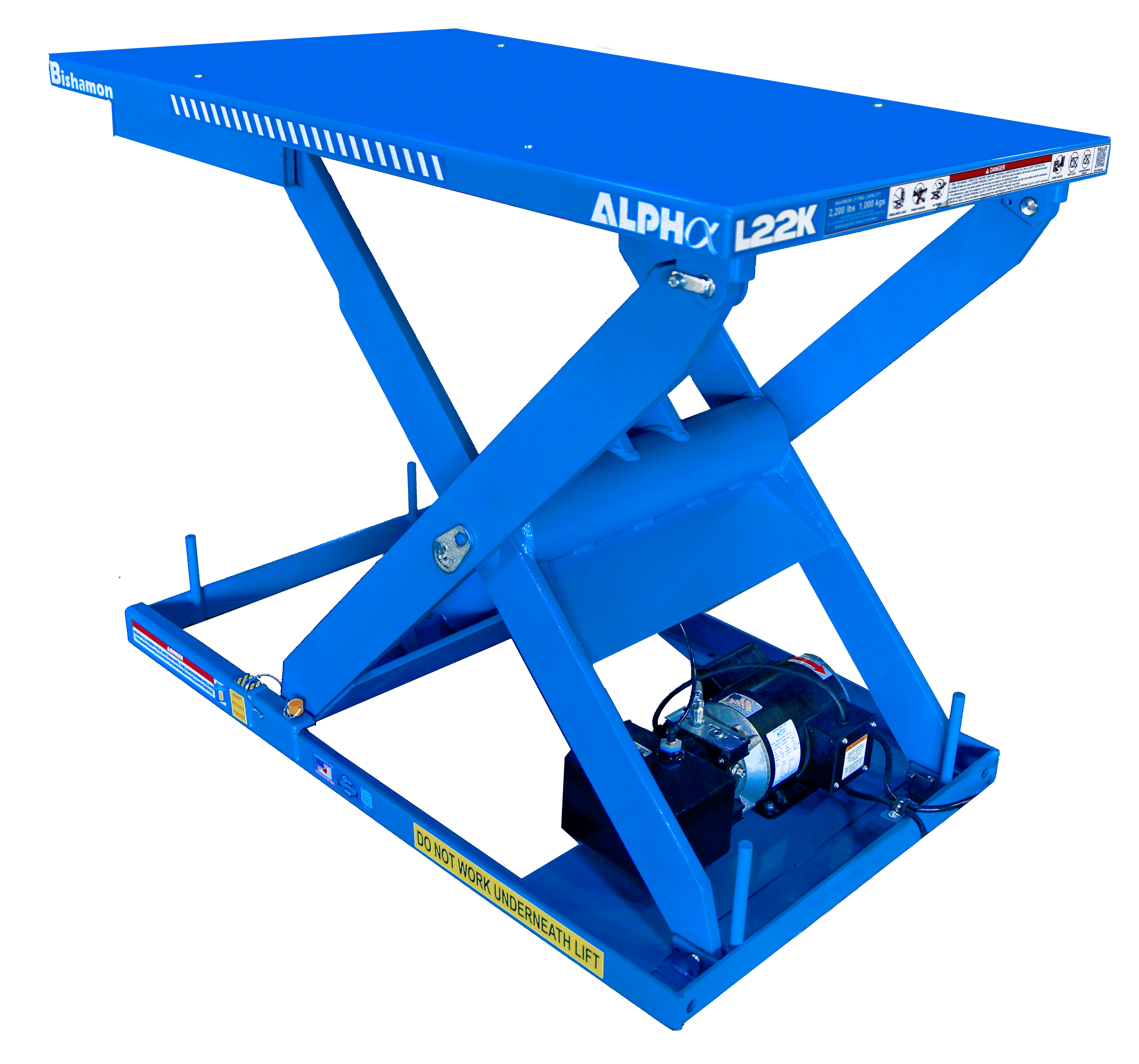

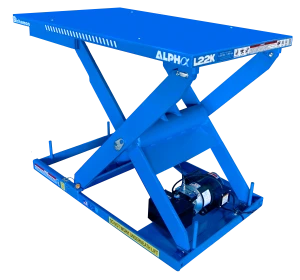

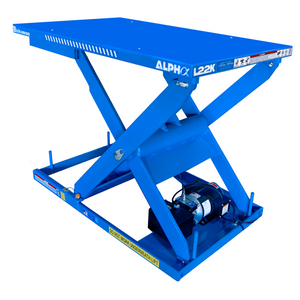

ALPHA Electric-Hydraulic Lift Tables - L22K-TT4848-230-1

The L22K-TT4848-230-1 Alpha Electric-Hydraulic Lift Table with Turntable is a premium ergonomic lifting solution designed to improve efficiency, safety, and productivity in demanding industrial environments. As part of the next-generation Alpha Series, this lift table combines precision electric-hydraulic lifting with an integrated rotating turntable, allowing operators to position and access loads effortlessly from all sides.

Ideal for warehouses, manufacturing facilities, assembly lines, and packaging stations, this lift table helps eliminate unnecessary lifting, bending, and twisting. With a 2,200 lb lifting capacity, it is perfectly suited for medium-duty applications that require both vertical lifting and rotational positioning. The built-in turntable provides smooth 360-degree rotation, enabling operators to work from a single position —reducing fatigue while increasing workflow efficiency.

Powered by a 230V electric-hydraulic system, the L22K-TT4848-230-1 delivers smooth, controlled lifting and lowering for precise load handling. The scissor lift mechanism ensures stable and balanced movement, minimizing load shift and enhancing operator safety. This makes it ideal for tasks such as assembly, inspection, product handling, and packaging processes.

Constructed with a heavy-duty steel frame and reinforced scissor arms, this lift table is engineered for long-term durability in high-demand industrial settings. The rotating platform performs reliably under load, while the overall design minimizes vibration and ensures consistent performance during continuous use.

Maintenance is simple and cost-effective with self-lubricating, maintenance-free bushings at all pivot points, reducing wear and eliminating routine lubrication. A built-in maintenance safety pin provides secure servicing, helping minimize downtime and extend the life of the equipment.

For operations that require both lifting strength and rotational flexibility, the L22K-TT4848-230-1 Alpha Lift Table delivers a dependable, ergonomic, and high-efficiency solution.

Specifications

  • Model / SKU: L22K-TT4848-230-1
  • Series: Alpha Electric-Hydraulic Lift Tables
  • Lifting Capacity: 2,200 lbs
  • Power Supply: 230V electric power
  • Lift Mechanism: Electric-hydraulic scissor lift system
  • Platform Type: Integrated rotating turntable platform
  • Turntable Function: Smooth 360 ° rotation for full load accessibility
  • Operation: Powered lifting with manual or assisted rotation
  • Construction: Heavy-duty steel frame with reinforced scissor structure
  • Bushings: Self-lubricating, maintenance-free pivot bushings
  • Safety Features: Integrated maintenance safety pin for secure servicing
  • Performance: Stable, low-vibration lifting with precise positioning
  • Applications: Warehousing, manufacturing, assembly lines, packaging and inspection stations
  • Ergonomic Benefits: Reduces operator fatigue and eliminates manual load repositioning
  • Maintenance: Low-maintenance design with accessible service components

The Alpha L22K-TT4848-230-1 Lift Table with Turntable is an excellent investment for businesses seeking enhanced productivity, improved ergonomics, and reliable material handling performance in demanding industrial applications.

Warranty Information
This Warranty Statement applies only to Bishamon Industries Corporation ("Bishamon") products purchased from Bishamon or an authorized dealer and used within the U.S.A. and Canada, and constitutes an agreement allocating the risk of product failure between Bishamon and the purchaser, as reflected in the product's price. Bishamon warrants its products to be free from defects in material and workmanship for one (1) year from the date of delivery, covering both parts and labor, applying only to the original, non-transferable purchaser and only to original Bishamon-manufactured equipment; this warranty excludes defects caused by unsuitable installation environments, use for purposes other than intended, disasters such as fire, flood, wind, or lightning, unauthorized attachments or modifications, shipment damage, or any other abuse, misuse, accident, alteration, or unauthorized repair. Bishamon must receive written notice of any defect within the one-year period, after which it will, at its election, replace or repair the product at its facilities or through an authorized repair representative (unauthorized repair work is not covered), with replacement parts covered for the balance of the original warranty period and replaced parts becoming Bishamon's property; if shipment is required for warranty service, Bishamon will arrange pick-up and shipping and provide packing instructions, though it is not responsible for negligent or inappropriate packing by the user. For custom-built products made to user specifications, Bishamon additionally warrants conformance to those specifications, provided any nonconformity claims are made in writing within ten (10) days of delivery. To the extent allowed by law, these remedies are the user's sole and exclusive remedies, with no other express or implied warranties - including merchantability or fitness for a particular purpose - applying, though the user may have other rights varying by state or country; Bishamon will not be liable for special, incidental, or consequential damages of any kind (including lost profits, lost savings, loss of use, cost of capital, substitute equipment or services, downtime, third-party claims, or property damage) under any legal theory, and makes no warranty regarding compliance with federal, state, or local safety or product standard codes, with any such noncompliance not considered a warranty defect. This Warranty Statement represents the complete and exclusive agreement between the parties, superseding all prior communications including statements by salespersons, may only be modified in writing signed by a Bishamon officer, and is governed by California law, with any disputes to be brought exclusively in courts in San Bernardino County, California; any action for breach of warranty must be commenced within fifteen (15) months of the product's delivery.
