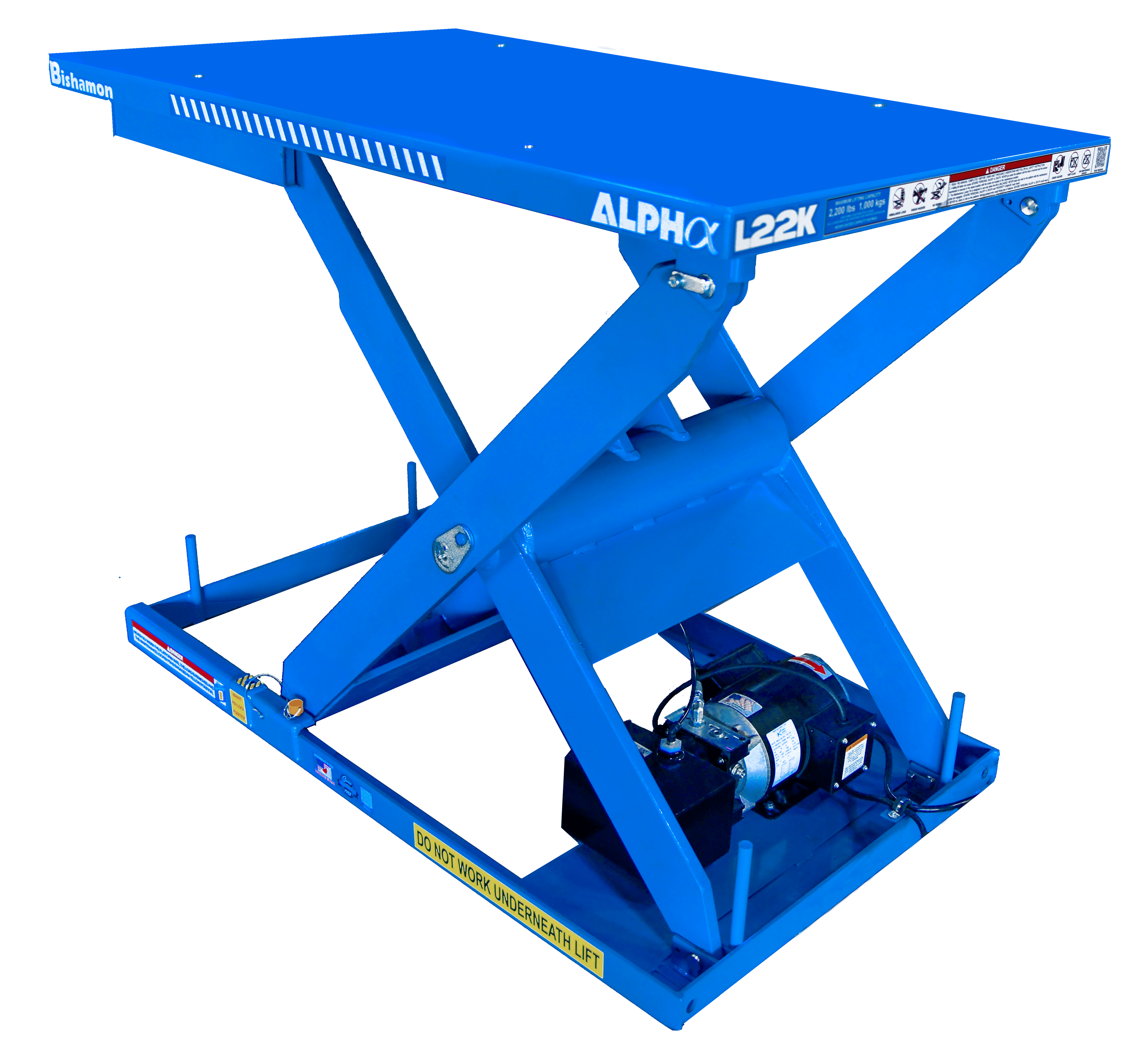

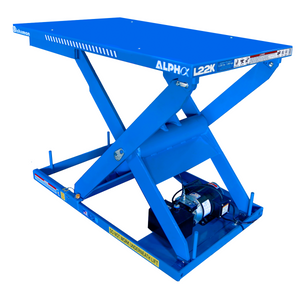

ALPHA Electric-Hydraulic Lift Tables - L22K-TT4448-230-1

The L22K-TT4448-230-1 Alpha Electric-Hydraulic Lift Table with Turntable is a high-efficiency ergonomic lifting solution designed to improve productivity, reduce operator strain, and enhance safety in industrial material handling environments. As part of the advanced Alpha Series, this lift table integrates smooth vertical lifting with a rotating turntable platform, allowing operators to easily position and access loads from any angle without unnecessary effort.

Ideal for warehouses, manufacturing facilities, assembly lines, and packaging operations, this lift table is engineered to eliminate repetitive lifting, bending, and twisting. With a 2,200 lb lifting capacity, it is perfectly suited for medium-duty applications where both lifting power and rotational flexibility are required. The integrated turntable allows for effortless load rotation, enabling operators to remain in one position while accessing all sides of a product —improving efficiency and reducing fatigue.

Powered by a 230V electric-hydraulic system, the L22K-TT4448-230-1 delivers smooth, controlled lifting and lowering for precise and safe load handling. The scissor lift mechanism ensures stable operation with minimal vibration, helping protect both the operator and the materials being handled. This makes it an excellent choice for tasks such as assembly, inspection, and packaging.

Constructed with a heavy-duty steel frame and reinforced scissor arms, this lift table is built to withstand continuous use in demanding industrial environments. The rotating platform maintains consistent performance under load, ensuring reliable operation over time.

Maintenance is simple and cost-effective thanks to self-lubricating, maintenance-free bushings at all pivot points, reducing wear and eliminating routine lubrication. A built-in maintenance safety pin allows for secure servicing, minimizing downtime and improving overall equipment longevity.

For operations that require both lifting precision and rotational efficiency, the L22K-TT4448-230-1 Alpha Lift Table delivers a durable, ergonomic, and reliable solution.

Specifications

• Model / SKU: L22K-TT4448-230-1
• Series: Alpha Electric-Hydraulic Lift Tables
• Lifting Capacity: 2,200 lbs
• Power Supply: 230V electric power
• Lift Mechanism: Electric-hydraulic scissor lift system
• Platform Type: Integrated rotating turntable platform
• Turntable Function: Smooth 360 ° rotation for full load accessibility
• Operation: Powered lifting with manual or assisted rotation
• Construction: Heavy-duty steel frame with reinforced scissor structure
• Bushings: Self-lubricating, maintenance-free pivot bushings
• Safety Features: Integrated maintenance safety pin for secure servicing
• Performance: Stable, low-vibration lifting with precise positioning
• Applications: Warehousing, manufacturing, assembly lines, packaging and inspection stations
• Ergonomic Benefits: Reduces operator fatigue and eliminates manual load repositioning
• Maintenance: Low-maintenance design with easy-access service components

The Alpha L22K-TT4448-230-1 Lift Table with Turntable is the ideal solution for businesses seeking enhanced efficiency, improved ergonomics, and dependable material handling performance in demanding industrial applications.
