Bishamon Lift Table, 6600 lb Capacity, 48 x 48 Turntable, 230V 3-Phase Hand Control

Write a Review
$5,242.51 - $9,009.00
SKU: L66K-TT4848-230-3-H
Condition: New
Weight: 1,270.00 LBS
Width: 48.00 (in)
Height: 20.00 (in)
Depth: 60.00 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Bishamon Lift Table, 6600 lb Capacity, 48 x 48 Turntable, 230V 3-Phase Hand Control

Bishamon Lift Table, 6600 lb Capacity, 48 x 48 Turntable, 230V 3-Phase Hand Control

$5,242.51 - $9,009.00

Bishamon Lift Table, 6600 lb Capacity, 48 x 48 Turntable, 230V 3-Phase Hand Control

$5,242.51 - $9,009.00
Description

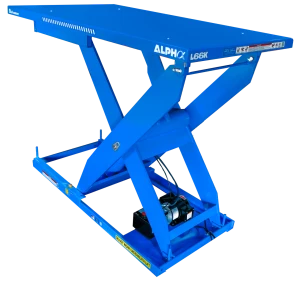

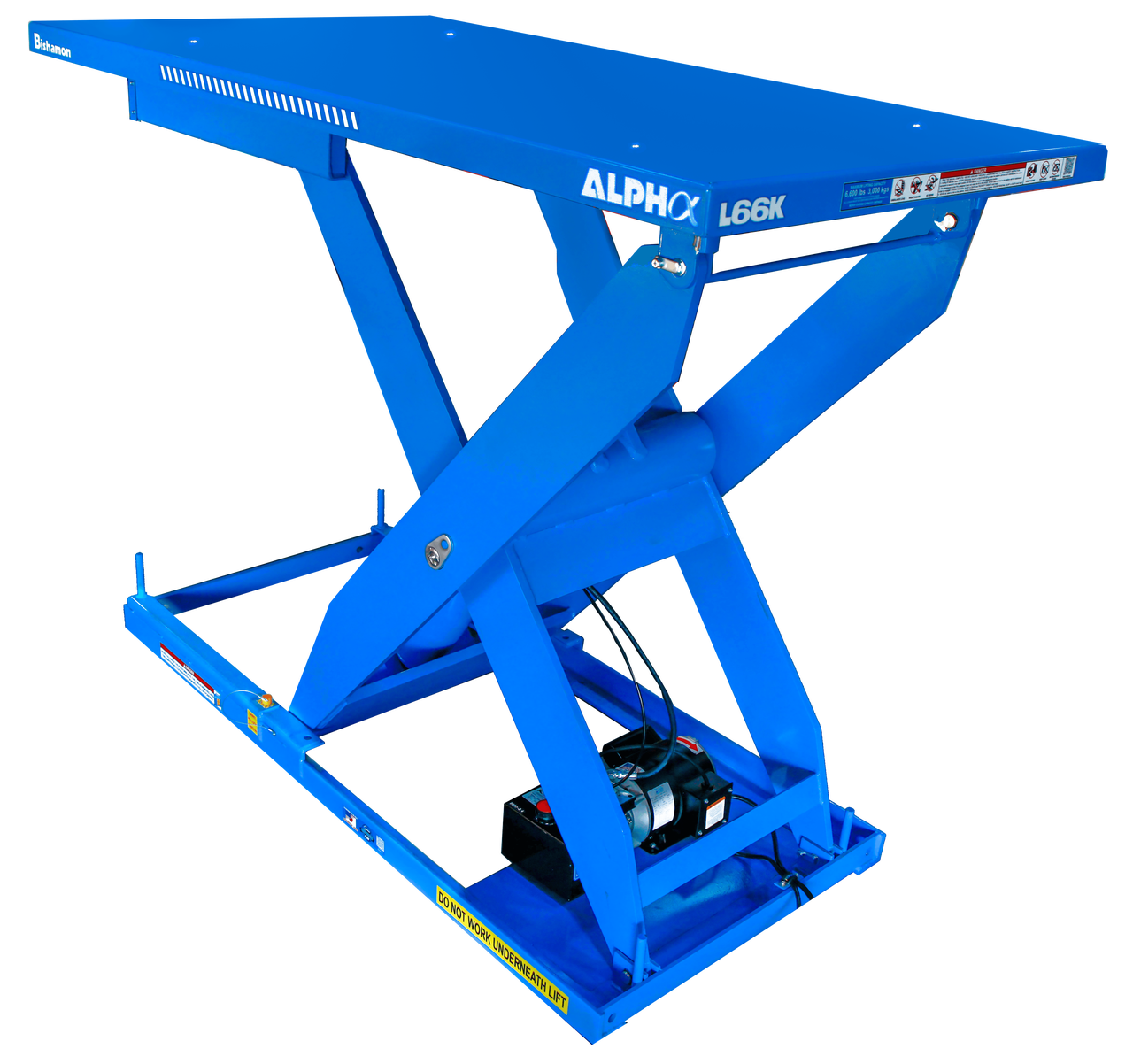

ALPHA Electric-Hydraulic Lift Tables - L66K-TT4848-230-3

The L66K-TT4848-230-3 Alpha Electric-Hydraulic Lift Table with Turntable is a high-performance, heavy-duty lifting solution engineered to enhance productivity, improve workplace ergonomics, and ensure safe material handling in demanding industrial environments. As part of the advanced Alpha Series, this model combines a 230V three-phase electric-hydraulic system with a large 48" x 48" rotating turntable platform, enabling operators to efficiently position and access loads from any angle with minimal effort.

With a robust 6,600 lb lifting capacity, this lift table is ideal for manufacturing operations, warehouses, assembly lines, and distribution centers where efficiency and safety are critical. The integrated turntable provides smooth 360-degree rotation, eliminating the need to manually reposition heavy loads. This significantly reduces operator fatigue, increases workflow efficiency, and minimizes the risk of workplace injuries caused by repetitive lifting and awkward positioning.

The electric-hydraulic scissor lift mechanism ensures smooth, controlled lifting and lowering for precise load placement. Its reinforced scissor structure delivers exceptional stability under load, while integrated flow-limiting valves prevent sudden drops and ensure controlled descent, protecting both personnel and materials.

Built for durability, the L66K-TT4848-230-3 features a heavy-duty steel frame and reinforced scissor arms designed for continuous industrial use. Premium high-load ball bearings and continuous axle rollers provide smooth, reliable performance and support up to 35,000 cycles per year, making it ideal for high-demand environments.

A compact, integrated hydraulic power unit and reservoir maximizes performance while minimizing space requirements. The plug-and-play control system offers intuitive operation and quick installation, allowing seamless integration into existing workflows.

Maintenance is simplified with self-lubricating, maintenance-free bushings, reducing downtime and eliminating routine lubrication needs. A built-in maintenance safety pin ensures safe servicing and inspections. The lift table meets ANSI MH29.1:2020 standards, and all electrical components are UL and CSA certified, ensuring top-tier safety and compliance.

Backed by a 5-year parts and 2-year labor warranty (U.S. & Canada), the L66K-TT4848-230-3 Alpha Lift Table with Turntable delivers long-term reliability and performance for demanding applications.

Specifications

  • Model / SKU: L66K-TT4848-230-3
  • Series: Alpha Electric-Hydraulic Lift Tables
  • Lifting Capacity: 6,600 lbs
  • Power Supply: 230V, 3-phase electric power
  • Lift Mechanism: Electric-hydraulic scissor lift system
  • Platform Size: 48" x 48" turntable platform
  • Turntable Function: 360 ° rotation for full load accessibility
  • Operation: Powered lifting with manual or assisted rotation
  • Bearings: High-load ball bearings for smooth, consistent operation
  • Rollers: Continuous axle rollers for durability and stability
  • Safety Features: Flow-limiting valve; maintenance safety pin
  • Power Unit: Compact, integrated hydraulic power unit and reservoir
  • Controls: Plug-and-play, user-friendly interface
  • Construction: Heavy-duty steel frame with reinforced scissor design
  • Bushings: Self-lubricating, maintenance-free
  • Cycle Rating: Up to 35,000 cycles per year
  • Compliance: ANSI MH29.1:2020; UL/CSA certified electrical components
  • Applications: Manufacturing, warehousing, assembly, packaging, and maintenance operations
  • Warranty: 5-year parts / 2-year labor (U.S. & Canada)

The Alpha L66K-TT4848-230-3 Lift Table with Turntable offers the ideal combination of high-capacity lifting, precision control, and ergonomic efficiency, making it a reliable solution for modern industrial material handling needs.

Warranty Information
This Warranty Statement applies only to Bishamon Industries Corporation ("Bishamon") products purchased from Bishamon or an authorized dealer and used within the U.S.A. and Canada, and constitutes an agreement allocating the risk of product failure between Bishamon and the purchaser, as reflected in the product's price. Bishamon warrants its products to be free from defects in material and workmanship for one (1) year from the date of delivery, covering both parts and labor, applying only to the original, non-transferable purchaser and only to original Bishamon-manufactured equipment; this warranty excludes defects caused by unsuitable installation environments, use for purposes other than intended, disasters such as fire, flood, wind, or lightning, unauthorized attachments or modifications, shipment damage, or any other abuse, misuse, accident, alteration, or unauthorized repair. Bishamon must receive written notice of any defect within the one-year period, after which it will, at its election, replace or repair the product at its facilities or through an authorized repair representative (unauthorized repair work is not covered), with replacement parts covered for the balance of the original warranty period and replaced parts becoming Bishamon's property; if shipment is required for warranty service, Bishamon will arrange pick-up and shipping and provide packing instructions, though it is not responsible for negligent or inappropriate packing by the user. For custom-built products made to user specifications, Bishamon additionally warrants conformance to those specifications, provided any nonconformity claims are made in writing within ten (10) days of delivery. To the extent allowed by law, these remedies are the user's sole and exclusive remedies, with no other express or implied warranties - including merchantability or fitness for a particular purpose - applying, though the user may have other rights varying by state or country; Bishamon will not be liable for special, incidental, or consequential damages of any kind (including lost profits, lost savings, loss of use, cost of capital, substitute equipment or services, downtime, third-party claims, or property damage) under any legal theory, and makes no warranty regarding compliance with federal, state, or local safety or product standard codes, with any such noncompliance not considered a warranty defect. This Warranty Statement represents the complete and exclusive agreement between the parties, superseding all prior communications including statements by salespersons, may only be modified in writing signed by a Bishamon officer, and is governed by California law, with any disputes to be brought exclusively in courts in San Bernardino County, California; any action for breach of warranty must be commenced within fifteen (15) months of the product's delivery.
