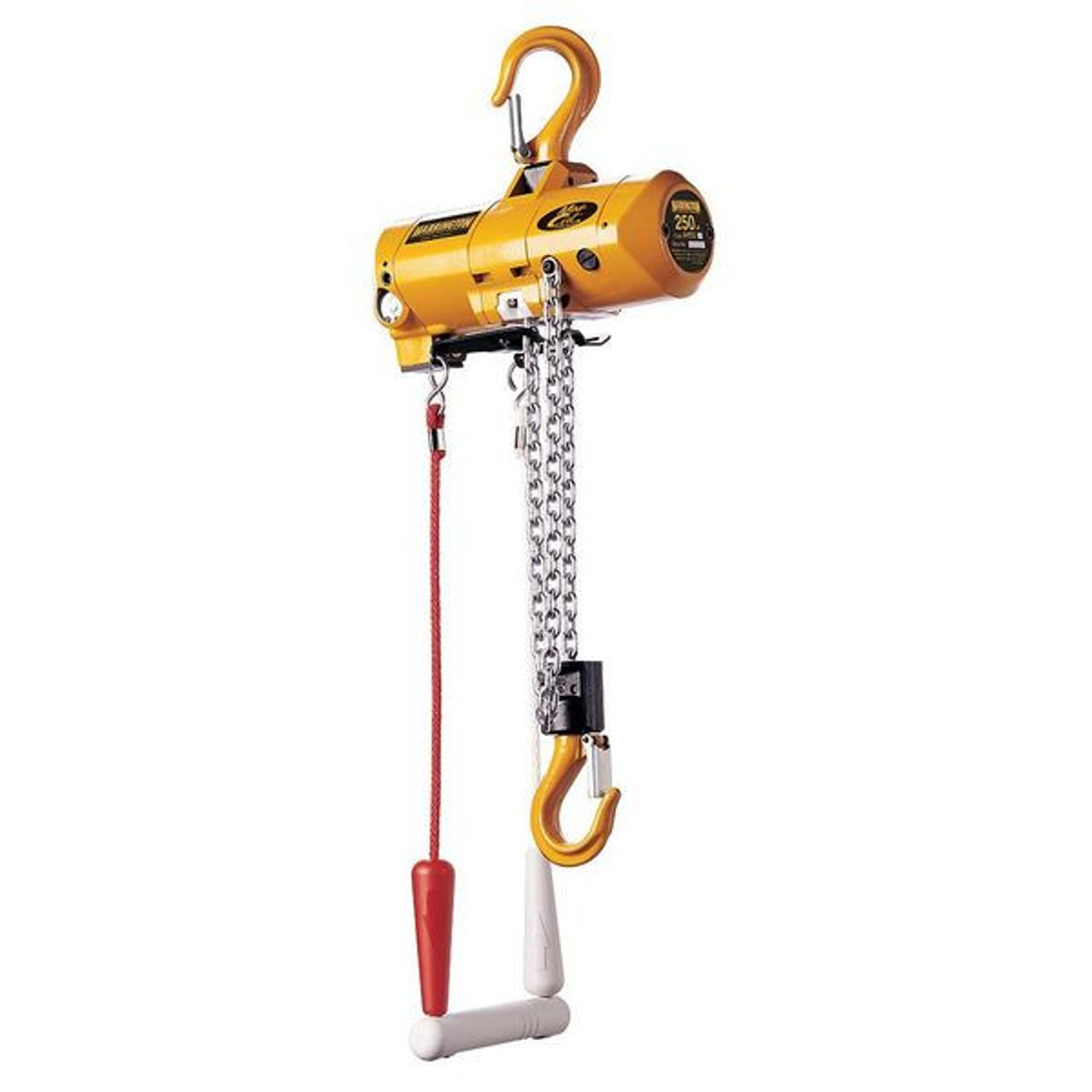

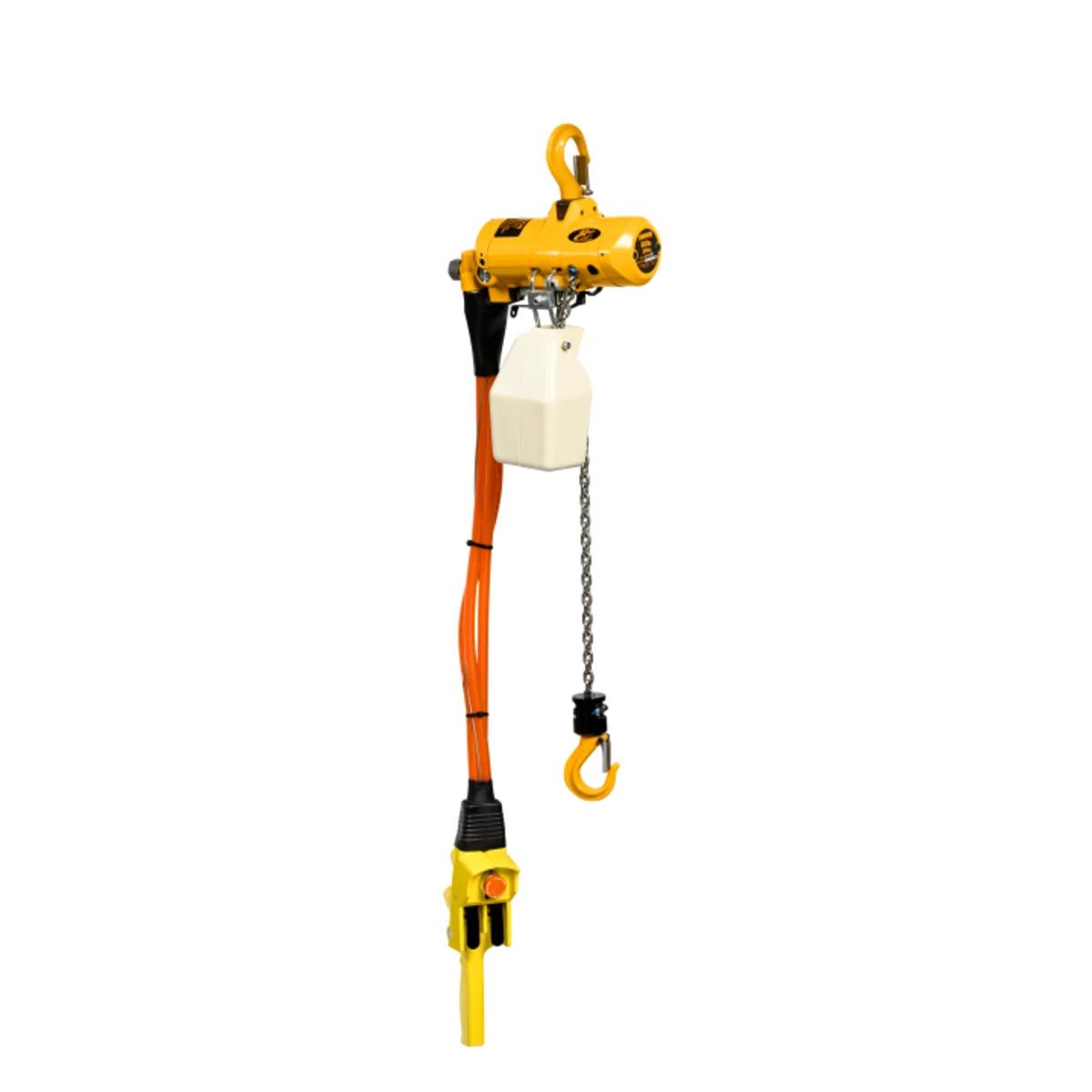

AH Mini Cat Air Hoist 10' Lift-Capacitie 500 lb. AH500P Air Powered Hoist HARRINGTON

Product Overview

The AH500P-10 HARRINGTON AH Mini Cat Air Hoist 10' Lift is revolutionizing the lifting equipment industry with its exceptional features and capabilities. With a weight capacity that ranges from 500 lb., this air-powered hoist is designed to make your work easier and more efficient.The compact and rugged design of the AH500P-10 HARRINGTON AH Mini Cat Air Hoist 10' Lift allows for easy maneuverability in a variety of applications. Whether you're working on-site, at a workstation, or on an assembly line, this hoist is your reliable partner. Its small size also enables easy installation in tight spaces, making it a versatile tool for any workspace.One of the standout features of the AH500P-10 HARRINGTON AH Mini Cat Air Hoist 10' Lift is its air-powered operation. This means you can rely on compressed air instead of electricity or battery power, saving you money on energy costs. Additionally, the air-powered operation provides a quieter and cleaner working environment for you and your team.Safety is of utmost importance, and the AH500P-10 HARRINGTON AH Mini Cat Air Hoist 10' Lift is designed with this in mind. Equipped with a reliable braking system, this hoist ensures secure load holding and prevents accidents. You can trust this hoist to meet the highest safety standards and keep you and your team safe during operation.Investing in the AH500P-10 HARRINGTON AH Mini Cat Air Hoist 10' Lift means investing in your workflow. Experience the convenience, power, and reliability of this hoist today and witness the difference it can make in your productivity. Say goodbye to manual labor and hello to effortless lifting with the AH500P-10 HARRINGTON AH Mini Cat Air Hoist 10' Lift.

Product Specifications

.

Part Number:

AH500P-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Air Chain Hoist, 500 lb. Cap., 10 ft. Lift=Hoist Mount=Hook Mounted-No Trolley

Lift Speed:

29 fpm

Housing Width:

4 in

Manufacturers Warranty Length:

1 yr

Housing Length:

9 11/16 in

For Minimum Beam Flange Width:

Not Applicable

For Minimum Beam Flange Height:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Height:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

3 1/2 in

Body Depth:

11 5/16 in

For Minimum Beam Height:

Not Applicable

Body Length:

9 11/16 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

10 ft

Lifting Hook Opening Width:

29/32 in

Minimum Retracted Length:

12 in

Load Capacity:

500 lb

Minimum Between Hooks:

12 in

Standards:

ANSI/ASME B30.17

Item:

Air Chain Hoist

Reeving:

1

Trolley Configuration:

Hook Mounted-No Trolley

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Not Included

Overload Protection Included:

Yes

Brake Type:

Disc

Chain Grade:

Grade 80

Included Components:

Chain Container

Fixed Lift Speed:

29 fpm

Chain Finish:

Nickel Plated

Controls:

=Mount Type=Hook Mounted-No Trolley

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Headroom:

12 in

Includes Brake:

Brake Included

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

500 lb

Body Finish:

Painted

Number of Load Chains:

1

Body Material:

Cast Aluminum

Programmable:

Non-Programmable
