Custom Field
Part Number AH250M-6.5
Color Yellow
Hoist Lift 6 1/2 ft

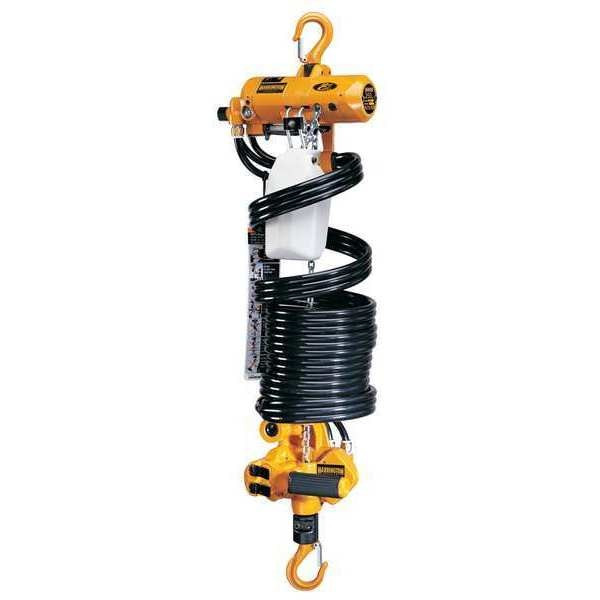

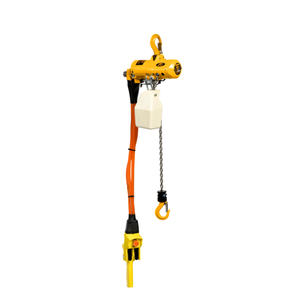

Product Air Chain Hoist, 250 lb. Cap., 6.5 ft. Lft=Hoist Mount=Hook Mounted-No Trolley
Lift Speed 41 fpm
Housing Width 4 in
Manufacturers Warranty Length 1 yr
Housing Length 11 5/16 in
For Minimum Beam Flange Width Not Applicable
For Minimum Beam Flange Height Not Applicable
For Maximum Beam Flange Width Not Applicable
For Maximum Beam Flange Height Not Applicable
For Maximum Beam Height Not Applicable
MFR Warranty Length 1 yr
Body Width 7 3/16 in
Body Depth 11 5/16 in
For Minimum Beam Height Not Applicable
Body Length 11 5/16 in
Minimum Radius Curve Not Applicable
Maximum Lifting Length 6 1/2 ft
Lifting Hook Opening Width 29/32 in
Minimum Retracted Length 33 in
Load Capacity 250 lb
Minimum Between Hooks 33 in
Standards ANSI/ASME B30.17
Item Air Chain Hoist
Reeving 1
Trolley Configuration Hook Mounted-No Trolley
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Not Included
Overload Protection Included Yes
Brake Type Self-Adjusting
Chain Grade Grade 80
Included Components Chain Container
Fixed Lift Speed 47 fpm
Chain Finish Nickel Plated
Controls Pendant=Mount Type=Hook Mounted-No Trolley
Maximum Pulling Capacity Not Applicable
Number of Reeves 1
Headroom 33 in
Includes Brake Brake Included
Lifting Hook Type Swivel Hook with Safety Latch
Maximum Lifting Capacity 250 lb
Body Finish Painted
Number of Load Chains 1
Body Material Cast Aluminum
Programmable Non-Programmable
