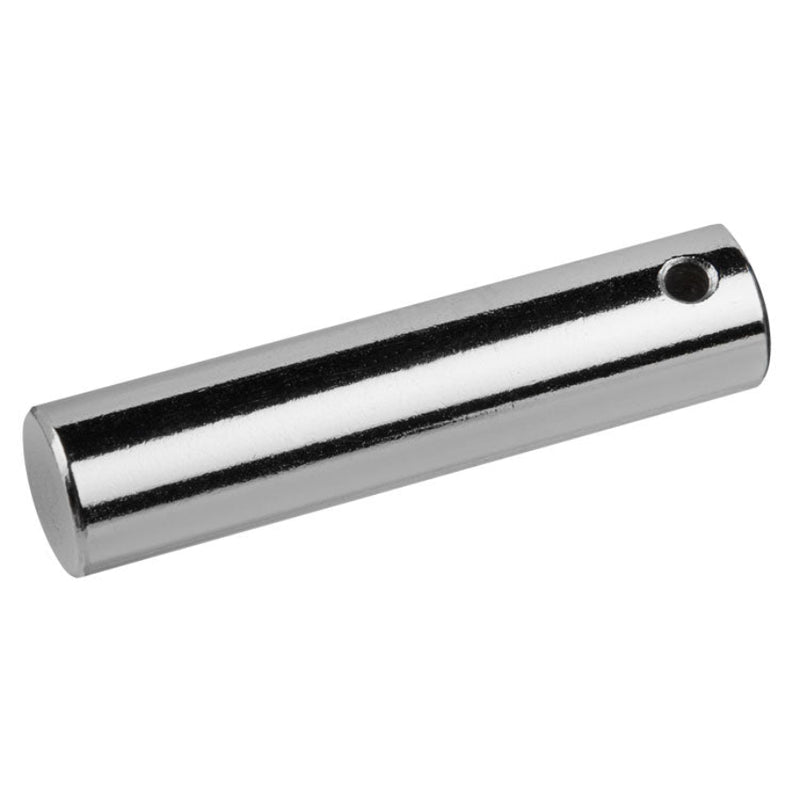

Web End Shaft “ SKU: 618 The Load-Bearing Pin That Locks Your Web Strap to the Lower Hook Assembly In a web strap ratchet winch hoist, the web end shaft is one of the most mechanically critical components in the entire lower hook system. It's the precision pin that passes through the web end yoke and secures the looped free end of the web strap ” locking the strap in place and transferring every pound of load from the strap to the hook below. The Web End Shaft (SKU: 618) is the genuine OEM replacement shaft for the broadest range of Lug-All small frame and Lightweight web strap hoists. This web end shaft is compatible with Lug-All hoist models 25-A, 25-B, 25-i, 2-A, 2-B, 35-A, 500-A, 500-i, 500-A-FH, 1000-A, and 1500-A ” the most comprehensive web end shaft compatibility in the Lug-All small frame parts catalog, covering ¼-ton Lightweight hoists all the way through 1½-ton small frame models, in standard, hot stick, eye bolt, and fiberglass handle configurations. The EHP Group During web strap replacement, the web end shaft is inserted through the web strap loop and into the web end assembly, then locked in place with a new roll pin that must sit flush with the surface of the assembly. The shaft must pass cleanly and fully through both the strap loop and the yoke bore ” any bend, corrosion, scoring, or dimensional deviation that prevents full seating compromises the pin-lock joint and must not be overlooked. A web end shaft that doesn't seat properly cannot be safely secured with the roll pin, and the web end assembly cannot be trusted to hold rated load. Lug-All Per EHP's documentation on the related web end assembly (Part 891), the roll pin (Part #: 143) and the web end shaft (Part #: 618) are listed as separately purchased required components ” confirming that whenever the web end assembly is serviced or a strap replacement is performed, the shaft and roll pin should both be inspected and replaced as a pair for maximum safety. Ace Industries The web end shaft is one of those parts that's easy to overlook and costly to neglect. It is directly in the load path on every lift and pull. Using authentic Lug-All replacement parts means sustaining the original design integrity of your unit ” the cast-aluminum structure, robust pawl assemblies, and reliable hardware that make Lug-All hoists a trusted choice in demanding industrial, construction, and utility settings. Lug-All

Product Specifications SpecificationDetailSKU / Part Number618Part NameWeb End ShaftCompatible ModelsLug-All #25-A, #25-B, #25-i, #2-A, #2-B, #35-A, #500-A, #500-i, #500-A-FH, #1000-A, #1500-AHoist TypesSmall Frame & Lightweight Web Strap Ratchet Winch HoistsCapacity Range500 lbs “ 3,000 lbs (varies by model)Required Companion PartRoll Pin #143 (sold separately)Component CategoryWeb End Assembly / Load Path HardwareCountry of OriginUSA

Installation Note Always install a new roll pin (SKU: 143) when replacing the web end shaft ” never reuse the old pin. The roll pin must sit flush with the surface of the web end assembly after installation. Inspect the web end yoke (SKU: 617) at the same time and replace if worn or damaged. Order SKU 618 today and maintain a secure, safe web end connection on your Lug-All hoist.
