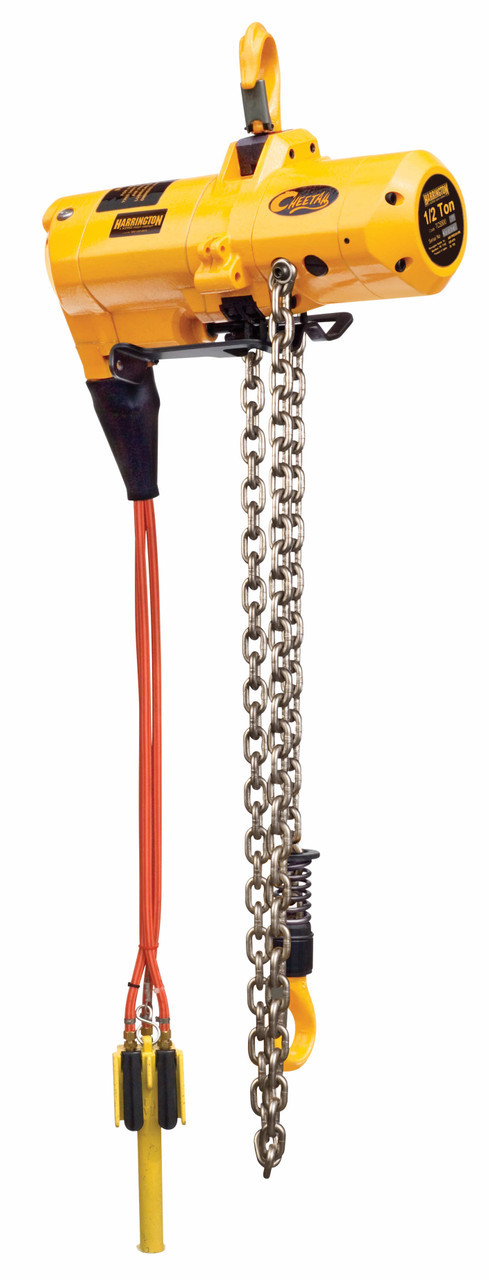

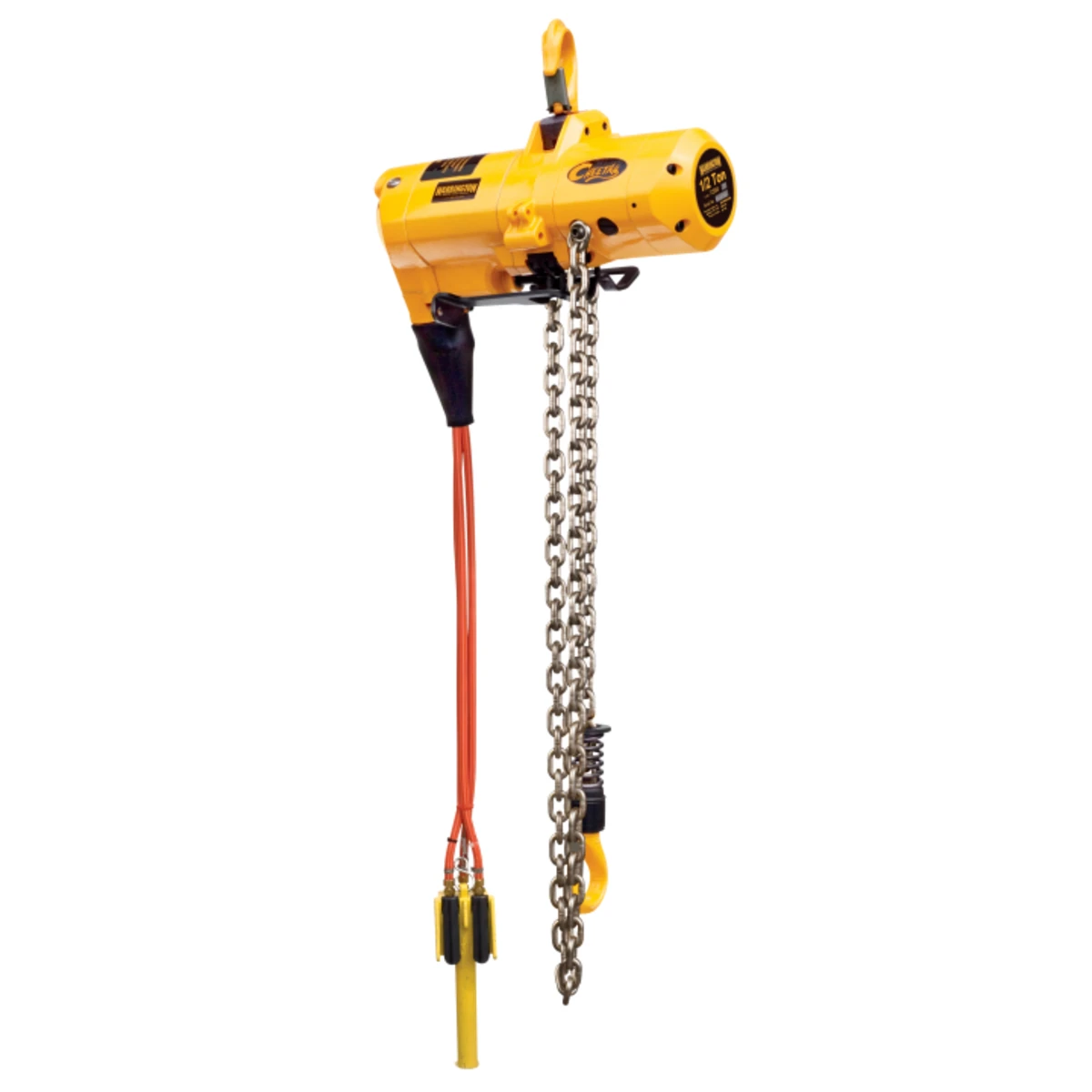

TCS Air Hoist 10' Lift-Capacity 1/2 Ton TCS500C Air Hoist HARRINGTON

Product Overview

The TCS500C-10 HARRINGTON TCS Air Hoist is a powerful and efficient lifting solution that is designed to meet all your heavy-duty lifting needs. With an impressive 1/2 Ton capacity and adjustable speeds, this hoist delivers lightning-fast and precise lifting power.With a lift height of 10', the TCS500C-10 HARRINGTON TCS Air Hoist provides incredible versatility for a wide range of lifting tasks. It can effortlessly lift heavy machinery, equipment, or materials to your desired height, making it the ideal choice for any lifting requirement.Durability and reliability are at the forefront of this hoist's design. Built with robust construction and high-quality materials, it can withstand the most demanding industrial environments. You can trust in its ability to handle heavy loads consistently and with ease.Experience the convenience and ease of use that the TCS500C-10 HARRINGTON TCS Air Hoist offers. Its adjustable speeds allow you to customize the lifting process to match your needs, ensuring maximum precision and efficiency. No more wasted time and effort with sluggish lifting mechanisms ‚ this hoist promises fast and smooth operation.Whether you are working in a manufacturing plant, warehouse, or construction site, the TCS500C-10 HARRINGTON TCS Air Hoist is the ultimate lifting solution. It delivers exceptional performance, reliability, and durability to tackle all your heavy-duty lifting requirements. Say goodbye to backbreaking labor and hello to the efficiency and power of this exceptional hoist.Invest in the TCS500C-10 HARRINGTON TCS Air Hoist and unleash the true potential of your lifting tasks. Experience fast, efficient, and dependable performance like never before. Don't settle for anything less than the best when it comes to your lifting needs. Trust in the TCS500C-10 HARRINGTON TCS Air Hoist to get the job done right.

Product Specifications

.

Part Number:

TCS500C-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Air Chain Hoist, 1000 lb. Cap., 10 ft. Lft=Hoist Mount=Hook Mounted-No Trolley

Lift Speed:

60 fpm

Housing Width:

8 11/16 in

Manufacturers Warranty Length:

1 yr

Housing Length:

14 3/8 in

For Minimum Beam Flange Width:

Not Applicable

For Minimum Beam Flange Height:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Height:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

8 11/16 in

Body Depth:

14 13/32 in

For Minimum Beam Height:

Not Applicable

Body Length:

14 13/32 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

10 ft

Lifting Hook Opening Width:

1 in

Minimum Retracted Length:

16 5/16 in

Load Capacity:

1,000 lb

Minimum Between Hooks:

16 5/16 in

Standards:

ANSI/ASME B30.17

Item:

Air Chain Hoist

Reeving:

1

Trolley Configuration:

Hook Mounted-No Trolley

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Not Included

Overload Protection Included:

Yes

Brake Type:

Disc

Chain Grade:

Grade 80

Included Components:

Chain Container, External Speed Adjustment Screws

Fixed Lift Speed:

60 fpm

Chain Finish:

Nickel Plated

Controls:

Pendant=Mount Type=Hook Mounted-No Trolley

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Headroom:

16 3/10 in

Includes Brake:

Brake Included

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

1,000 lb

Body Finish:

Painted

Number of Load Chains:

1

Body Material:

Cast Aluminum

Programmable:

Non-Programmable
