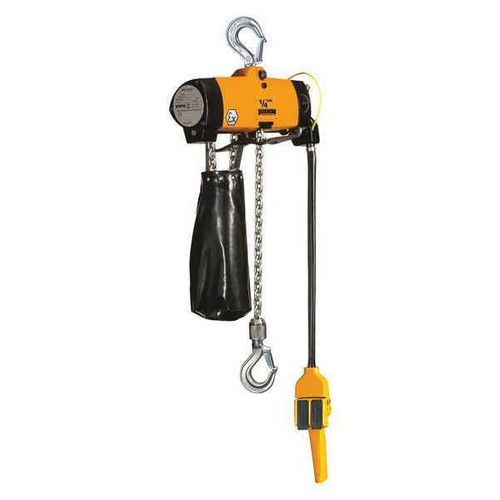

Harrington TCL Lube Free Series Air Hoist - 1/4 Ton - Pendant Control - 10 ft Lift

Write a Review
$7,134.61
$5,306.37
(You save $1,828.24 )
SKU: TCL250P-10
Condition: New
Availability: Subject to Availability
Weight: 46.00 LBS
Shipping: Calculated at Checkout
Part Number: TCL250P-10
Color: Yellow
Hoist Lift: 10 ft
product: Air Chain Hoist, Pendant, 500 lb., 10 ft., Hoist Mount: Hook Mounted-No Trolley
Lift Speed: 61 fpm
Housing Width: 7 45/64 in
Manufacturers Warranty Length: 1 yr
Housing Length: 16 in
For Minimum Beam Flange Width: Not Applicable
For Minimum Beam Flange Height: Not Applicable
For Maximum Beam Flange Width: Not Applicable
For Maximum Beam Flange Height: Not Applicable
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 1 yr
Body Width: 6 19/32 in
Body Depth: 14 13/32 in
For Minimum Beam Height: Not Applicable
Body Length: 16 in
Minimum Radius Curve: Not Applicable
Maximum Lifting Length: 10 ft
Lifting Hook Opening Width: 1 in
Minimum Retracted Length: 16 5/16 in
Load Capacity: 0 - 999 lbs
Minimum Between Hooks: 14 13/16 in
Standards: ASME B30.16, ASME HST-5, EU ATEX
Item: Air Chain Hoist
Reeving: 1
Trolley Configuration: Hook Mounted-No Trolley
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Not Included
Brake Type: Disc
Chain Grade: Grade 80
Included Components: Chain Container
Fixed Lift Speed: 61 fpm
Chain Finish: Nickel Plated
Controls: Manipulator, Mount Type: Hook Mounted-No Trolley
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Headroom: 16 3/10 in
Includes Brake: Brake Included
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 500 lb
Body Finish: Powder Coated
Number of Load Chains: 1
Body Material: Cast Aluminum
Programmable: Non-Programmable
Capacity: 0 - 999 lbs
Lift: 10 ft
Suspension / Mounting: Hook
Control: Manipulator
Adding to cart… The item has been added
Harrington TCL Lube Free Series Air Hoist - 1/4 Ton - Pendant Control - 10 ft Lift

Harrington TCL Lube Free Series Air Hoist - 1/4 Ton - Pendant Control - 10 ft Lift

$7,134.61
$5,306.37
(You save $1,828.24 )

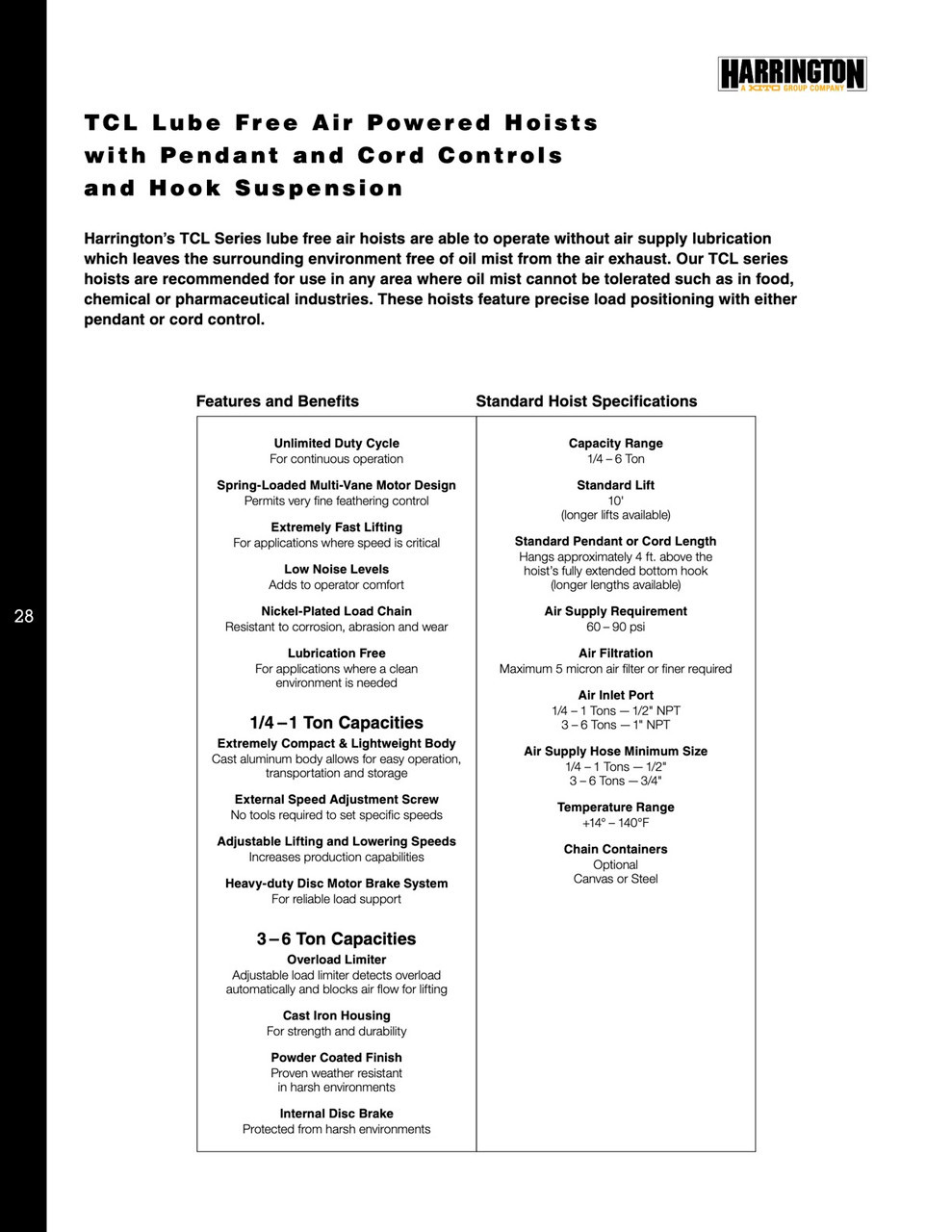

Transform your lifting operations with the TCL250P-10 HARRINGTON TCL Lube Free Air Hoist 10' Lift, capable of handling a maximum capacity of 1/4 Ton. This innovative air hoist is engineered for efficiency and reliability, designed specifically to operate without the need for air supply lubrication. By eliminating oil mist, the TCL250P not only maintains a cleaner work environment but also enhances safety, making it an essential tool for any industrial or commercial setting.

The robust construction of the TCL250P air hoist is complemented by advanced technology, ensuring smooth and precise lifting performance. Whether you're lifting heavy machinery or transporting materials, this hoist delivers optimum performance every time. Its design reduces maintenance requirements significantly, saving you both time and resources—an essential factor in any busy workplace.

  • Capable lifting capacity ranging from 1/4 Ton to 6 Tons
  • Lube-free operation for cleaner air and environment
  • Advanced lifting technology for precise control and positioning
  • Durable construction for long-lasting performance even in harsh industrial settings
  • Minimal maintenance needs, enhancing cost-effectiveness and time-saving
  • Perfect for a variety of applications, including heavy machinery and material transportation

Investing in the TCL250P-10 HARRINGTON TCL Lube Free Air Hoist 10' Lift means prioritizing efficiency, safety, and sustainability in your workplace. With its innovative technology and reliable lifting capabilities, this air hoist stands out as the ideal solution for modern lifting operations. Elevate your capabilities while ensuring a safer working environment by choosing this advanced hoist. Make the smart investment today and experience the difference in productivity and safety.

All products sold by Harrington Hoists, Inc. (HHI) are warranted to be free from defects in material and workmanship from the date of shipment, with coverage periods varying by product type - 1 year for electric and air powered hoists (excluding (N)ER2 and EQ/SEQ hoists), powered trolleys, powered Tiger Track jibs and gantries, crane components, below-the-hook devices, and spare/replacement parts; 2 years for manual hoists and trolleys and beam clamps; 3 years for (N)ER2 hoists, EQ/SEQ hoists, (T)EM/(T)SEM hoists, and RY hoists; 5 years for manual Tiger Track jibs and gantries and hoist motor brakes for EQ/SEQ, (T)EM/(T)SEM, and RY; and 10 years for the (N)ER2 brake and TNER hoist motor brake - provided the buyer notifies HHI in writing within sixty (60) days of discovering any alleged defect and the product has been used according to manufacturer recommendations without abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. If HHI's inspection confirms a defect in material or workmanship within the applicable warranty period, HHI will, at its discretion, repair or replace the part or product free of charge (not including installation), with delivery made F.O.B. HHI's place of business for U.S. customers or FCA HHI's U.S. location for international customers under Incoterms 2010; no warranty claim will be honored without valid proof of purchase, the customer must obtain a Return Goods Authorization before shipping the product freight-prepaid along with an explanation of the complaint, repaired products remain covered for the rest of the original warranty period, replacement parts installed after the original warranty period carry only a one-year replacement warranty (not including installation) from installation, and if no defect is found or the defect falls outside the warranty's scope, the customer is responsible for return shipping costs. HHI disclaims all other express or implied warranties, including merchantability or fitness for a particular purpose, and will not be liable for death, personal injury, property damage, or incidental, contingent, special, or consequential damages, losses, or expenses arising from the use or misuse of its products, regardless of whether such damage results from any act or failure to act by HHI, whether negligent, willful, or otherwise.
