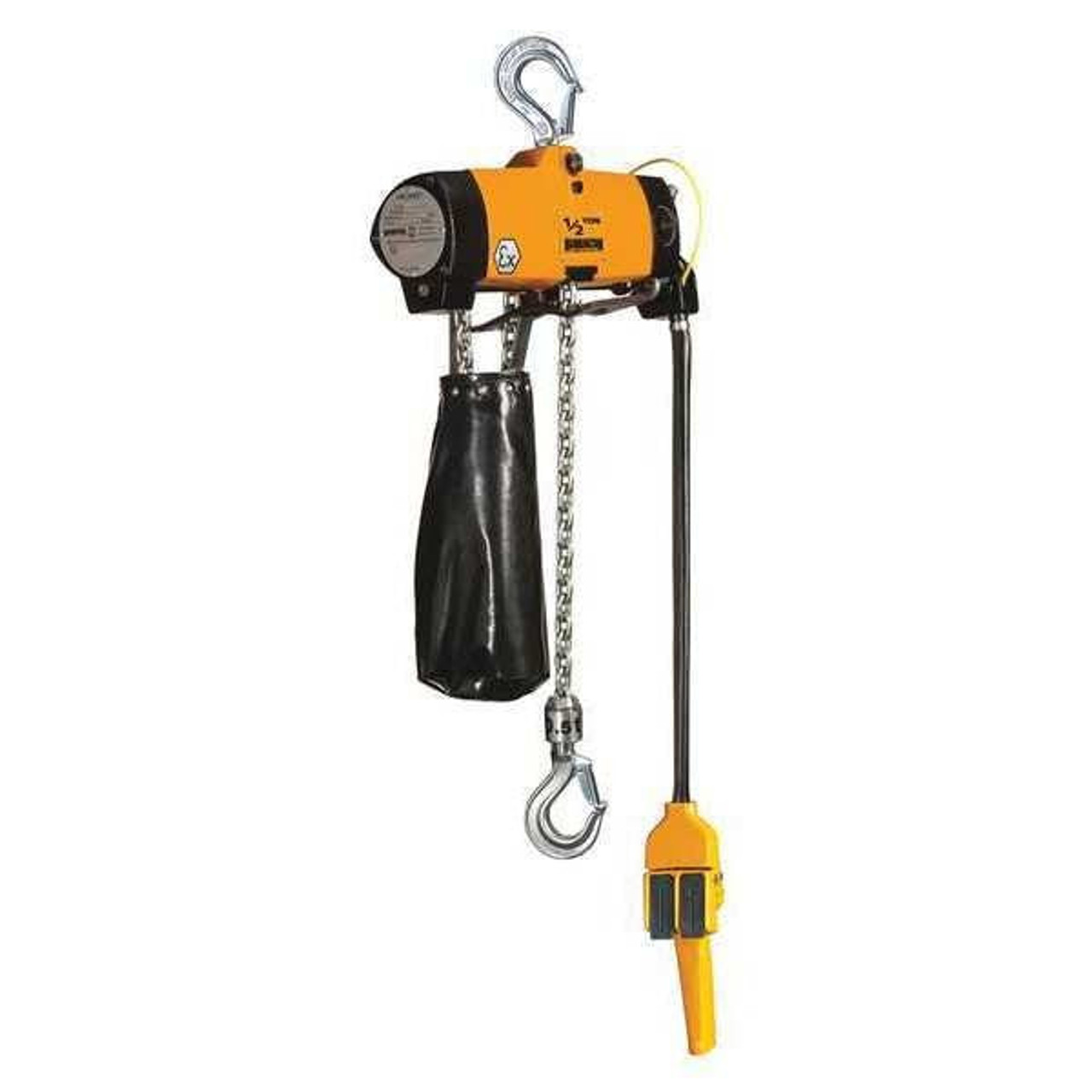

Harrington TCL Lube Free Series Air Hoist - 1/2 Ton - Pendant Control - 10 ft Lift

Write a Review
$7,134.61
$5,306.37
(You save $1,828.24 )
SKU: TCL500P-10
Condition: New
Availability: Subject to Availability
Weight: 46.00 LBS
Shipping: Calculated at Checkout
Part Number: TCL500P-10
Color: Yellow
Hoist Lift: 10 ft
product: Air Chain Hoist, Pendant, 1000 lb., 10 ft., Hoist Mount: Hook Mounted-No Trolley
Lift Speed: 10 ft
Housing Width: 7 45/64 in
Manufacturers Warranty Length: 1 yr
Housing Length: 16 in
For Minimum Beam Flange Width: Not Applicable
For Minimum Beam Flange Height: Not Applicable
For Maximum Beam Flange Width: Not Applicable
For Maximum Beam Flange Height: Not Applicable
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 1 yr
Body Width: 6 19/32 in
Body Depth: 14 13/32 in
For Minimum Beam Height: Not Applicable
Body Length: 16 in
Minimum Radius Curve: Not Applicable
Maximum Lifting Length: 10 ft
Lifting Hook Opening Width: 1 in
Minimum Retracted Length: 16 5/16 in
Load Capacity: 1,000 - 2,499 lbs
Minimum Between Hooks: 14 13/16 in
Standards: ASME B30.16, ASME HST-5, EU ATEX
Item: Air Chain Hoist
Reeving: 1
Trolley Configuration: Hook Mounted-No Trolley
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Not Included
Brake Type: Disc
Chain Grade: Grade 80
Included Components: Chain Container
Fixed Lift Speed: 41 fpm
Chain Finish: Nickel Plated
Controls: Pendant, Mount Type: Hook Mounted-No Trolley
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Headroom: 16 3/10 in
Includes Brake: Brake Included
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 1,000 lb
Body Finish: Powder Coated
Number of Load Chains: 1
Body Material: Cast Aluminum
Programmable: Non-Programmable
Capacity: 1,000 - 2,499 lbs
Suspension / Mounting: Hook
Control: Pendant
Lift: 10 ft
Adding to cart… The item has been added
Harrington TCL Lube Free Series Air Hoist - 1/2 Ton - Pendant Control - 10 ft Lift

Harrington TCL Lube Free Series Air Hoist - 1/2 Ton - Pendant Control - 10 ft Lift

$7,134.61
$5,306.37
(You save $1,828.24 )

Experience hassle-free and oil-free air hoisting with the TCL500P-10 HARRINGTON TCL Lube Free Air Hoist. This premium hoist is the ultimate solution for those seeking a clean and efficient lifting experience. The TCL500P-10 is specifically designed to operate without the need for air supply lubrication, eliminating the risk of oil mist and ensuring a pristine working environment.

Say goodbye to messy oil leaks and the hassle of lubrication maintenance, and welcome a new level of convenience and cleanliness to your workspace. With a capacity of 1/2 Tons, this air hoist stands out as an incredibly powerful and reliable lifting tool that addresses both heavy machinery handling and bulky material transportation with ease. The impressive 10-foot lift height provided by this hoist allows for effortless handling of heavy loads, reducing strain and maximizing safety in your operational workflow.

  • Oil-free operation: Enhanced cleanliness and efficiency without the need for lubrication.
  • 1/2 tons lifting capacity: Designed for heavy-duty tasks and reliable performance.
  • 10-foot lift height: Perfect for managing large loads in various work environments.
  • Durable construction: Built to withstand heavy-duty use for long-lasting reliability.
  • Minimal maintenance: Save time and effort with a lube-free design that reduces upkeep.

The TCL500P-10 HARRINGTON TCL Lube Free Air Hoist is engineered to tackle even the most demanding lifting tasks effortlessly, whether you're on a busy construction site or at a manufacturing plant. With its innovative design, this hoist minimizes the need for maintenance, allowing you to redirect your focus to productivity. Built to endure the rigors of heavy-duty use, the TCL500P-10 assures long-lasting performance without compromising safety or efficiency.

Invest in the TCL500P-10 HARRINGTON TCL Lube Free Air Hoist today and revolutionize your lifting operations. Embrace the freedom of hassle-free, oil-free air hoisting and eliminate the risks associated with traditional air hoists. Trust in the TCL500P-10 to provide efficient, safe, and clean lifting solutions that enhance your work environment. Elevate your lifting experience and transform your workspace with the TCL500P-10 HARRINGTON TCL Lube Free Air Hoist.

All products sold by Harrington Hoists, Inc. (HHI) are warranted to be free from defects in material and workmanship from the date of shipment, with coverage periods varying by product type - 1 year for electric and air powered hoists (excluding (N)ER2 and EQ/SEQ hoists), powered trolleys, powered Tiger Track jibs and gantries, crane components, below-the-hook devices, and spare/replacement parts; 2 years for manual hoists and trolleys and beam clamps; 3 years for (N)ER2 hoists, EQ/SEQ hoists, (T)EM/(T)SEM hoists, and RY hoists; 5 years for manual Tiger Track jibs and gantries and hoist motor brakes for EQ/SEQ, (T)EM/(T)SEM, and RY; and 10 years for the (N)ER2 brake and TNER hoist motor brake - provided the buyer notifies HHI in writing within sixty (60) days of discovering any alleged defect and the product has been used according to manufacturer recommendations without abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. If HHI's inspection confirms a defect in material or workmanship within the applicable warranty period, HHI will, at its discretion, repair or replace the part or product free of charge (not including installation), with delivery made F.O.B. HHI's place of business for U.S. customers or FCA HHI's U.S. location for international customers under Incoterms 2010; no warranty claim will be honored without valid proof of purchase, the customer must obtain a Return Goods Authorization before shipping the product freight-prepaid along with an explanation of the complaint, repaired products remain covered for the rest of the original warranty period, replacement parts installed after the original warranty period carry only a one-year replacement warranty (not including installation) from installation, and if no defect is found or the defect falls outside the warranty's scope, the customer is responsible for return shipping costs. HHI disclaims all other express or implied warranties, including merchantability or fitness for a particular purpose, and will not be liable for death, personal injury, property damage, or incidental, contingent, special, or consequential damages, losses, or expenses arising from the use or misuse of its products, regardless of whether such damage results from any act or failure to act by HHI, whether negligent, willful, or otherwise.
