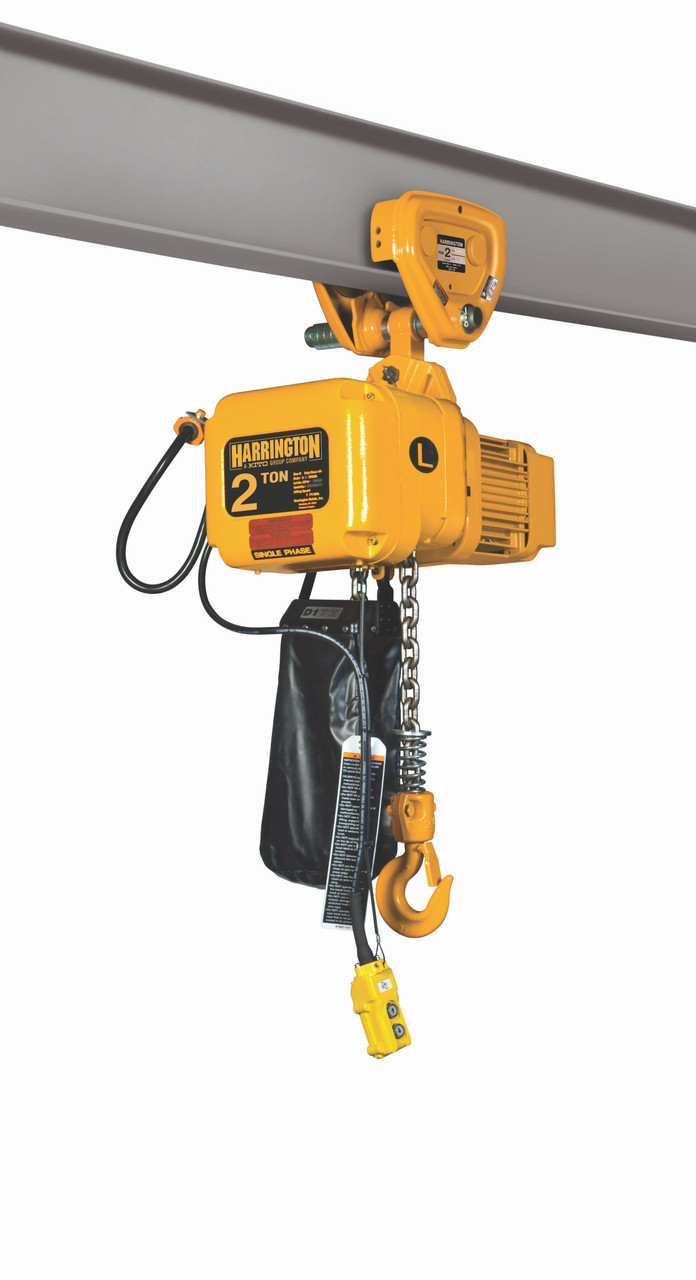

SNERP Electric Chain Hoist with Push Trolley 15' Lift-Capacity 3 Tons SNERP030C Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

The SNERP030C-15 HARRINGTON SNERP Electric Chain Hoist with Push Trolley is a reliable and efficient solution for all your heavy-duty lifting needs. This game-changing electric chain hoist is designed to deliver exceptional performance, making it the perfect choice for applications that require single-phase power.With a lift capacity ranging from 3 Tons, the SNERP030C-15 is versatile enough to meet the demands of various industries. Its sturdy construction ensures long-lasting durability, making it capable of withstanding even the toughest working conditions. This hoist is built to last, providing you with the reliability you need for your lifting operations.One of the standout features of the SNERP030C-15 is its easy-to-use push trolley. This allows for effortless movement, giving you the perfect combination of strength and maneuverability. With smooth and precise operation, this hoist guarantees maximum safety and productivity in your lifting operations.Operating the SNERP030C-15 is a breeze, ensuring consistent performance and peace of mind. Its advanced features are designed to make your work process easier and more efficient. Whether you're in the construction industry, manufacturing, or any other field that requires heavy lifting, this hoist is the ultimate tool for upgrading your operations.When you invest in the SNERP030C-15 Electric Chain Hoist with Push Trolley, you can expect enhanced productivity, improved safety, and increased efficiency. Don't settle for less when it comes to your lifting equipment. Choose the SNERP030C-15 and experience the difference it can make in your lifting operations. It's time to take your operations to new heights and exceed your own expectations.

Product Specifications

.

Part Number:

SNERP030C-15

Color:

Yellow

Hoist Lift:

15 ft

Product:

Electric Chain Hoist, 6,000 lb, 15 ft, Push Trolley=Hoist Mount=Push Trolley

Includes:

Chain Container,, Push Trolley

Lift Speed:

3.5 fpm

Housing Width:

16 1/2 in

Manufacturers Warranty Length:

1 yr

Housing Depth:

8 5/16 in

Housing Length:

26 7/8 in

For Minimum Beam Flange Width:

3 1/4 in

For Maximum Beam Flange Width:

6 1/32 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

16 1/2 in

Body Depth:

8 5/16 in

For Minimum Beam Height:

6 in

Body Length:

26 7/8 in

Minimum Radius Curve:

66 29/32 in

Maximum Lifting Length:

15 ft

Controller Cord Length:

11 ft

Trolley Wheel Diameter:

5 4/5 in

Lifting Hook Opening Width:

1 11/16 in

Minimum Retracted Length:

29 5/16 in

Load Capacity:

6,000 lb

Minimum Between Hooks:

28 7/8 in

Motor HP:

1.2 hp

Phase:

1

Standards:

ANSI/ASME B30.16, ASME HST-1M

Voltage:

115/230V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

2

Thermal Protection:

Option

Control Cord:

11 ft

Amps @ Low Volts:

23.9 A

Number of Speeds:

1

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

Extreme-Duty, Fan-Cooled Motor, Heavy Cast-Iron Chain Guide, Friction Clutch, Oil Bath-Lubricated, Heat-Treated Gearing, Self-Adjusting Maintenance-Free Brake

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

3.5 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Push Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

2

Motor Horsepower:

1 1/4 hp

Headroom:

28 13/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

6,000 lb

Current at Minimum Voltage:

23.9 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

0

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
