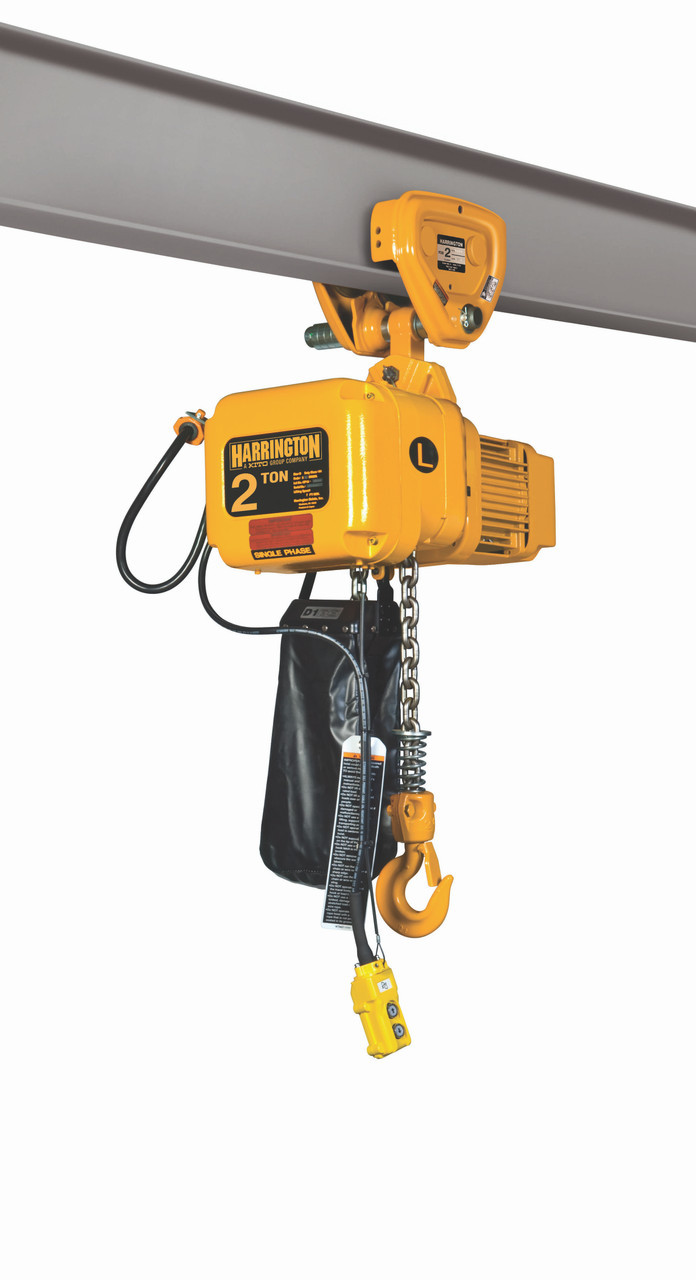

SNERP Electric Chain Hoist with Push Trolley 15' Lift-Capacity 2 Tons SNERP020L Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

The SNERP020L-15 HARRINGTON SNERP Electric Chain Hoist with Push Trolley is a reliable and efficient solution for your heavy lifting needs. Designed to withstand heavy-duty applications, this electric chain hoist delivers exceptional performance that meets and exceeds industry standards.With a lift capacity of 15 feet and load Capacity ranging from 2 Tons, the SNERP020L Electric Chain Hoist with Push Trolley is your ideal partner for efficient material handling. Its advanced features and superior craftsmanship ensure optimum safety, enhanced productivity, and reduced downtime.Crafted with precision, this electric chain hoist guarantees exceptional performance that you can rely on. It is built to handle extreme tasks efficiently, whether you need to lift heavy equipment, machinery, or other materials. No matter the job, the SNERP020L-15 HARRINGTON SNERP Electric Chain Hoist with Push Trolley provides the power and capacity required.The push trolley feature of this hoist offers effortless maneuverability, making it easy to transport heavy loads across your workspace. Its sturdy construction and exceptional trolley system ensure smooth and precise movements, allowing you to handle materials with ease.When it comes to heavy lifting, don't settle for anything less than the best. The SNERP020L-15 HARRINGTON SNERP Electric Chain Hoist with Push Trolley is built to withstand the toughest conditions, ensuring the safety of your workers and the integrity of your materials. You can have peace of mind knowing that this hoist will deliver exceptional performance in any industrial environment.Choose the SNERP020L-15 HARRINGTON SNERP Electric Chain Hoist with Push Trolley for premium performance, durability, and safety. Experience the difference that this hoist can make in your industrial operations and elevate your productivity to new heights.

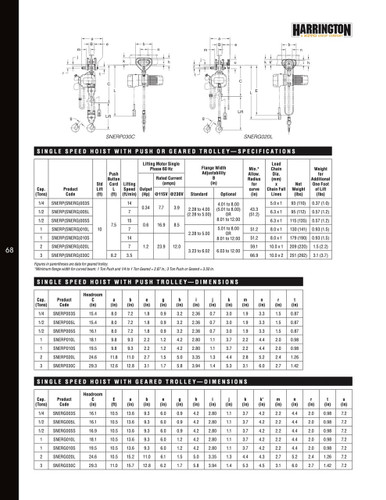

Product Specifications

.

Part Number:

SNERP020L-15

Color:

Yellow

Hoist Lift:

15 ft

Product:

Electric Chain Hoist, 4,000 lb, 15 ft, Push Trolley=Hoist Mount=Push Trolley

Includes:

Chain Container,, Push Trolley

Lift Speed:

7 fpm

Housing Width:

16 1/2 in

Manufacturers Warranty Length:

1 yr

Housing Depth:

8 5/16 in

Housing Length:

26 7/8 in

For Minimum Beam Flange Width:

3 1/4 in

For Maximum Beam Flange Width:

6 1/32 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

16 1/2 in

Body Depth:

8 5/16 in

For Minimum Beam Height:

6 in

Body Length:

26 7/8 in

Minimum Radius Curve:

59 3/32 in

Maximum Lifting Length:

15 ft

Controller Cord Length:

11 ft

Trolley Wheel Diameter:

5 in

Lifting Hook Opening Width:

1 1/2 in

Minimum Retracted Length:

24 19/32 in

Load Capacity:

4,000 lb

Minimum Between Hooks:

22 1/4 in

Motor HP:

1.2 hp

Phase:

1

Standards:

ANSI/ASME B30.16, ASME HST-1M

Voltage:

115/230V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Option

Control Cord:

11 ft

Amps @ Low Volts:

23.9 A

Number of Speeds:

1

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

Extreme-Duty, Fan-Cooled Motor, Heavy Cast-Iron Chain Guide, Friction Clutch, Oil Bath-Lubricated, Heat-Treated Gearing, Self-Adjusting Maintenance-Free Brake

Material:

Die Cast Aluminum

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

7 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Push Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1 1/4 hp

Headroom:

22 3/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

4,000 lb

Current at Minimum Voltage:

23.9 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

0

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
