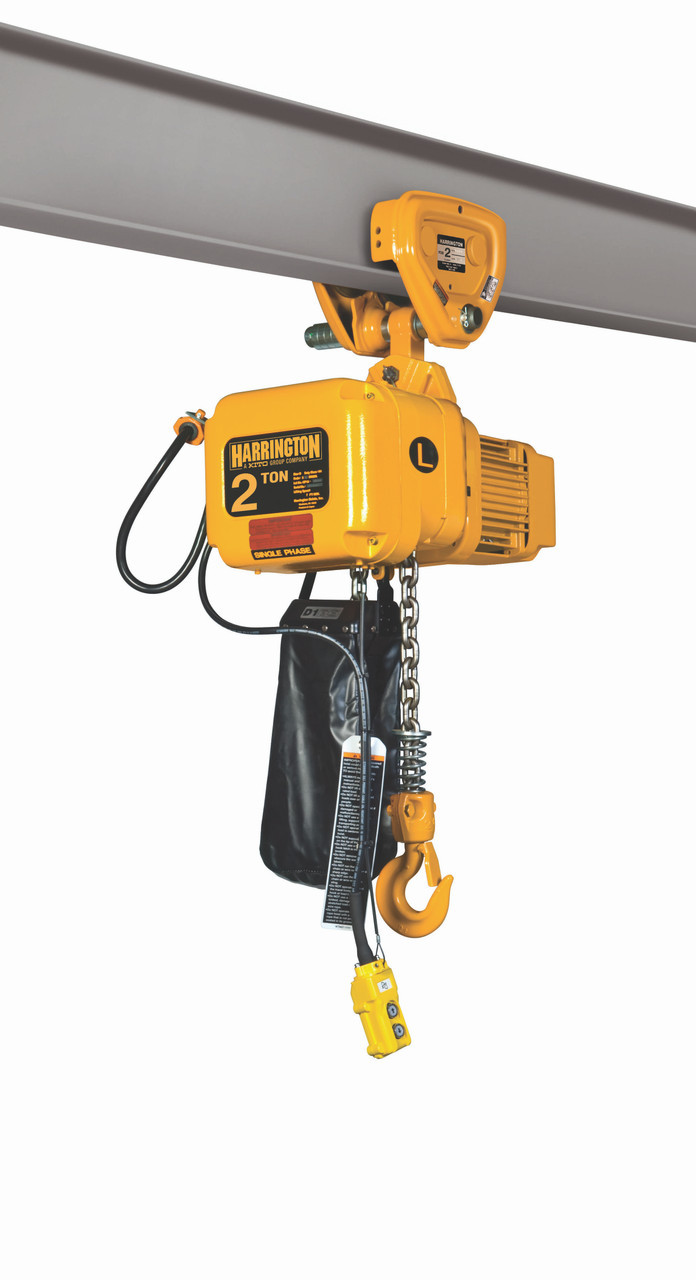

SNERP Electric Chain Hoist with Push Trolley 10' Lift-Capacity 2 Tons SNERP020L Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

The SNERP020L-10 HARRINGTON SNERP Electric Chain Hoist with Push Trolley is a robust and dependable tool designed to tackle even the toughest of tasks. With its 10' lift and Capacity ranging from 2 Tons, this electric chain hoist is ideal for heavy-duty applications.One of the standout features of the SNERP020L Electric Chain Hoist with Push Trolley is its single-phase electricity powered motor. This ensures consistent performance and efficiency, enabling you to complete tasks effortlessly and with precision.In addition to its power and durability, this hoist is incredibly user-friendly. The push trolley allows for smooth movement and accurate positioning, reducing the risk of accidents or damage to your materials. This makes it an indispensable tool for industrial settings where safety and efficiency are paramount.Not only does the SNERP020L-10 HARRINGTON SNERP Electric Chain Hoist with Push Trolley excel in functionality, but it also boasts exceptional build quality. Crafted from high-quality materials, this hoist is designed to withstand the rigors of heavy-duty use, ensuring its longevity and reliability for years to come.With its sleek design and compact size, this hoist is also highly portable, allowing you to easily transport it to different job sites or locations within your facility. This versatility makes it an invaluable asset for any industrial operation, whether it's a construction site, manufacturing plant, or warehouse.Investing in the SNERP020L-10 HARRINGTON SNERP Electric Chain Hoist with Push Trolley means investing in heightened productivity and efficiency. So, why wait? Purchase this superior hoist today and experience the difference it can make to your heavy-duty tasks.

Product Specifications

.

Part Number:

SNERP020L-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 4,000 lb, 10 ft, Push Trolley=Hoist Mount=Push Trolley

Includes:

Chain Container,, Push Trolley

Lift Speed:

7 fpm

Housing Width:

16 1/2 in

Manufacturers Warranty Length:

1 yr

Housing Depth:

8 5/16 in

Housing Length:

26 7/8 in

For Minimum Beam Flange Width:

3 1/4 in

For Maximum Beam Flange Width:

6 1/32 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

16 1/2 in

Body Depth:

8 5/16 in

For Minimum Beam Height:

6 in

Body Length:

26 7/8 in

Minimum Radius Curve:

59 3/32 in

Maximum Lifting Length:

10 ft

Controller Cord Length:

6 ft

Trolley Wheel Diameter:

5 in

Lifting Hook Opening Width:

1 1/2 in

Minimum Retracted Length:

24 19/32 in

Load Capacity:

4,000 lb

Minimum Between Hooks:

22 1/4 in

Motor HP:

1.2 hp

Phase:

1

Standards:

ANSI/ASME B30.16, ASME HST-1M

Voltage:

115/230V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Item:

Electric Chain Hoist

Reeving:

1

Thermal Protection:

Option

Control Cord:

6 ft

Amps @ Low Volts:

23.9 A

Number of Speeds:

1

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

Extreme-Duty, Fan-Cooled Motor, Heavy Cast-Iron Chain Guide, Friction Clutch, Oil Bath-Lubricated, Heat-Treated Gearing, Self-Adjusting Maintenance-Free Brake

Material:

Die Cast Aluminum

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

7 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Push Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1 1/4 hp

Headroom:

22 3/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

4,000 lb

Current at Minimum Voltage:

23.9 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

0

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
