Product Overview

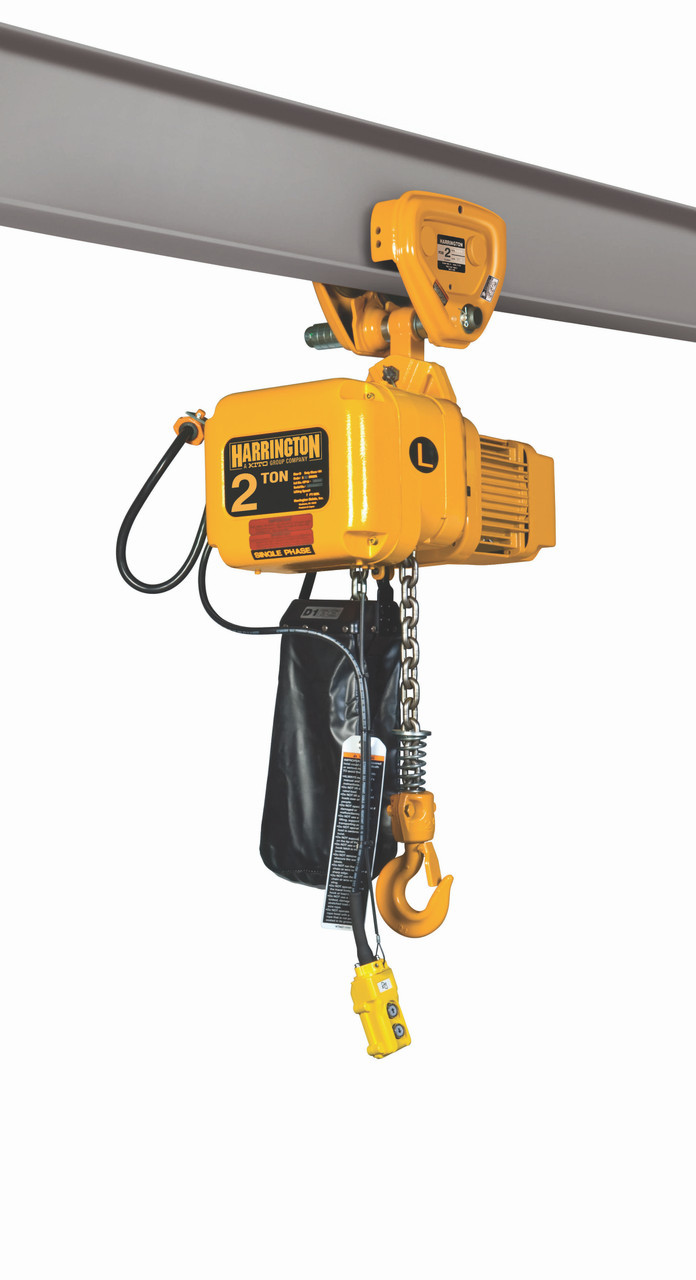

The SNERP005S-10 HARRINGTON SNERP Electric Chain Hoist with Push Trolley is the ultimate solution for all your heavy duty lifting needs. Designed to handle extreme duties, this electric chain hoist is perfect for applications in single phase power environments. With a lift capacity ranging from 1/2 Tons, it has the strength to handle even the heaviest loads effortlessly.This hoist features a 10-foot lift, providing ample height for all your lifting tasks. Whether you need to lift heavy machinery, equipment, or materials, the SNERP005S-10 is up to the challenge. Its push trolley allows for convenient and smooth movement, making it easy to transport your loads across your workspace.When it comes to reliability and durability, HARRINGTON is a name you can trust. With a solid reputation in the industry, HARRINGTON products are known for their exceptional quality and long-lasting performance. The SNERP005S-10 is no exception. Built to withstand the toughest conditions, it is designed to handle the most demanding tasks day in and day out.Featuring a robust construction, this electric chain hoist is made to last. Its heavy-duty components ensure optimal performance and durability, making it a valuable investment for businesses of all sizes. Whether you work in manufacturing, construction, or any other industry requiring heavy lifting, the SNERP005S-10 will exceed your expectations.With the SNERP005S-10 HARRINGTON SNERP Electric Chain Hoist with Push Trolley, you can take your operations to the next level. Increase productivity, reduce strain on your workforce, and streamline your lifting processes with this reliable and powerful hoist. Trust in the quality and performance of HARRINGTON products and upgrade your heavy duty applications today.Product Specifications
.Product Videos
Videos Hide Videos Show Videos
Custom Field
Part Number SNERP005S-10
Color Yellow
Hoist Lift 10 ft
Product Electric Chain Hoist, 1,000 lb, 10 ft, Push Trolley=Hoist Mount=Push Trolley
Includes Chain Container,, Push Trolley
Lift Speed 15 fpm
Housing Width 13 13/16 in
Manufacturers Warranty Length 1 yr
Housing Depth 7 1/2 in
Housing Length 23 1/4 in
For Minimum Beam Flange Width 2 1/4 in
For Maximum Beam Flange Width 5 in
For Maximum Beam Height Not Applicable
MFR Warranty Length 1 yr
Body Width 13 13/16 in
Body Depth 7 1/2 in
For Minimum Beam Height 3 3/16 in
Body Length 23 1/4 in
Minimum Radius Curve 43 5/16 in
Maximum Lifting Length 10 ft
Controller Cord Length 6 ft
Trolley Wheel Diameter 3 1/5 in
Lifting Hook Opening Width 29/32 in
Minimum Retracted Length 16 3/32 in
Load Capacity 1,000 lb
Minimum Between Hooks 15 3/8 in
Motor HP 0.6 hp
Phase 1
Standards ANSI/ASME B30.16, ASME HST-1M
Voltage 115/230V
Fits Brand Harrington Hoists Inc
Lubrication Oil Bath
Reeving 1
Thermal Protection Option
Control Cord 6 ft
Amps @ Low Volts 16.9 A
Number of Speeds 1
Trolley Configuration Push Trolley
Trolley Speed Not Applicable
Features Extreme-Duty, Fan-Cooled Motor, Heavy Cast-Iron Chain Guide, Friction Clutch, Oil Bath-Lubricated, Heat-Treated Gearing, Self-Adjusting Maintenance-Free Brake
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Included
Overload Protection Included Yes
Brake Type Pull Rotor
Chain Grade Grade 80
Maximum Lift Speed Not Applicable
Included Components Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Fixed Lift Speed 15 fpm
Clutch Type Friction Clutch
Minimum Lift Speed Not Applicable
Pendant IP Rating IP65
Chain Finish Nickel Plated
Controls Push Button Pendant=Mount Type=Push Trolley
Starts and Stops per Hour 360
Duty Classification H4
Maximum Pulling Capacity Not Applicable
Number of Reeves 1
Motor Horsepower 5/8 hp
Headroom 15 5/16 in
Includes Brake Brake Included
For Outdoor Use Yes
Hoist IP Rating IP55
Lifting Hook Type Swivel Hook with Safety Latch
Maximum Lifting Capacity 1,000 lb
Current at Minimum Voltage 16.9 A
Trolley Wheel Material Steel
Current at Maximum Voltage 8.5 A
Body Finish Enamel
Number of Load Chains 1
Body Material Aluminum
Trolley IP Rating Not Applicable
Programmable Non-Programmable
