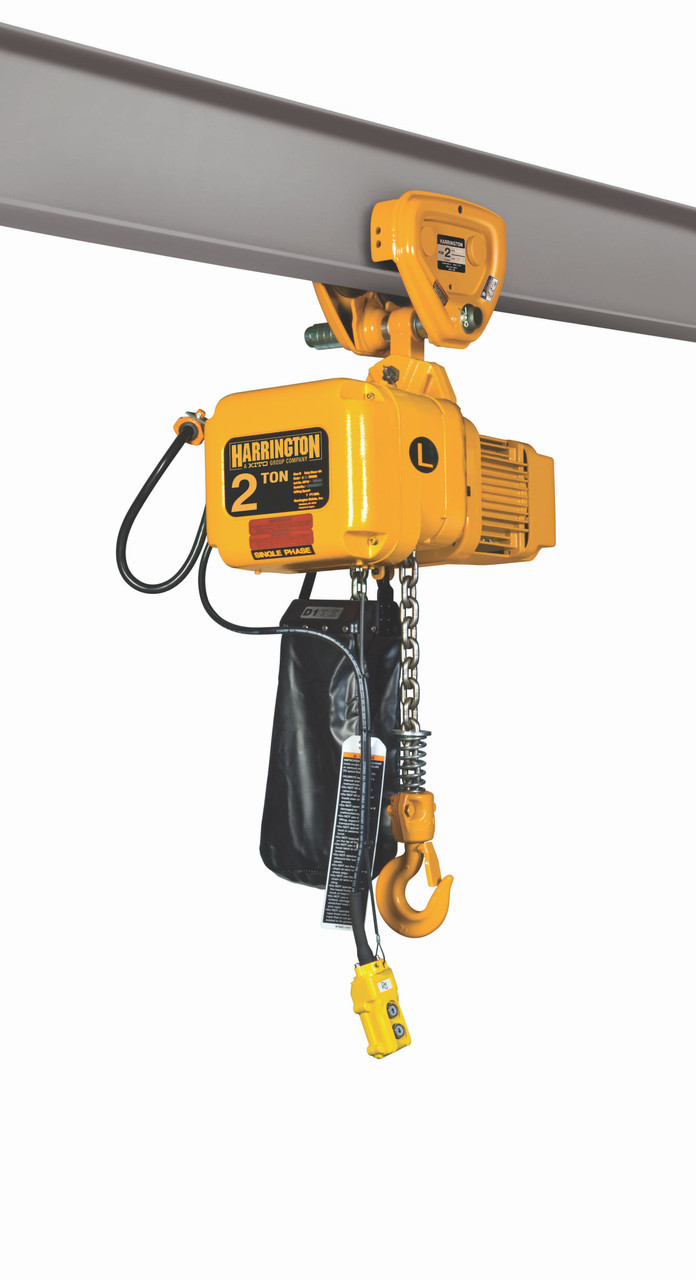

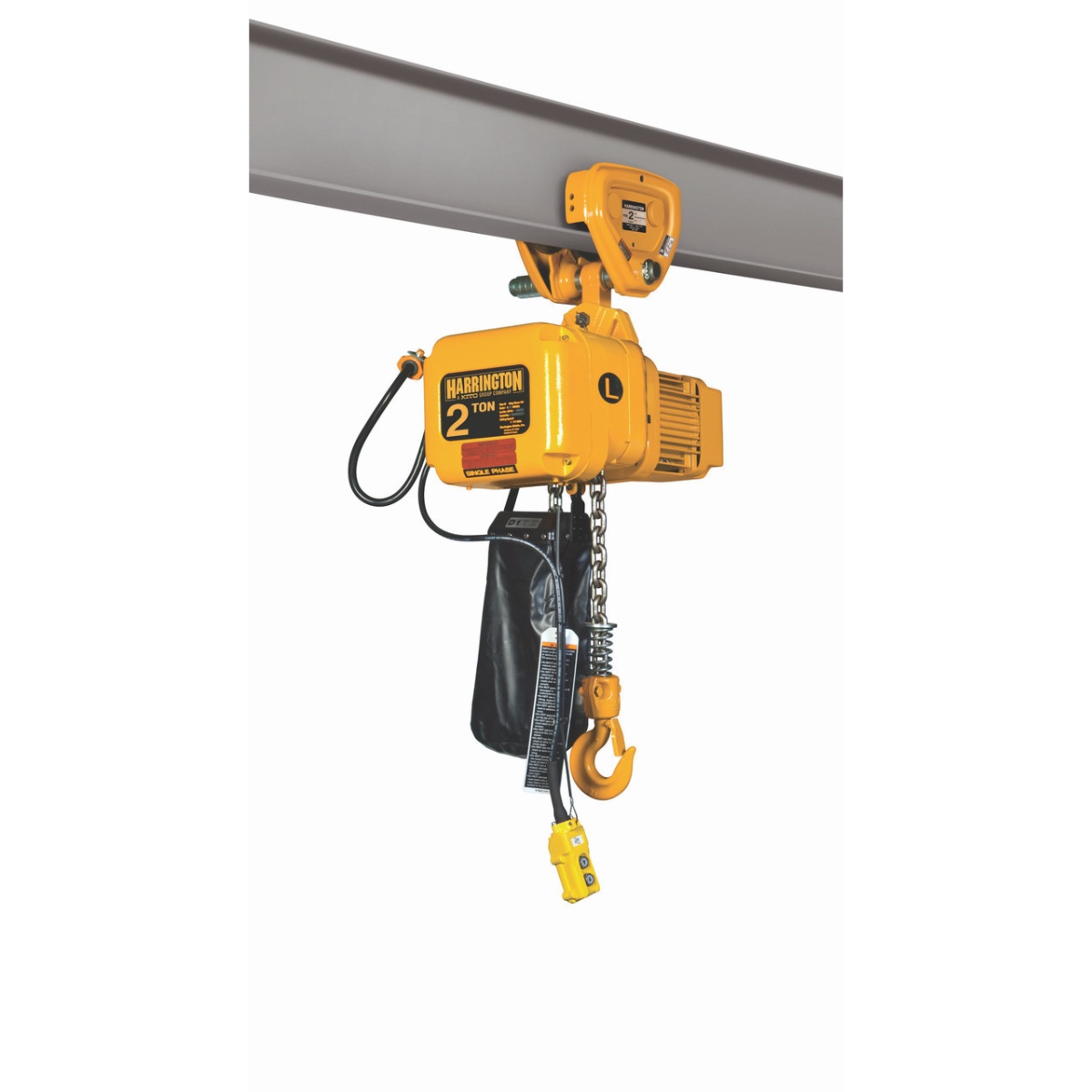

SNERP Electric Chain Hoist with Push Trolley 15' Lift-Capacity 1/4 Tons SNERP003S Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

The SNERP003S-15 HARRINGTON SNERP Electric Chain Hoist with Push Trolley redefines lifting efficiency and reliability. Engineered for extreme duty applications, this electric chain hoist delivers exceptional performance, setting a new standard in the industry. With a substantial lift capacity of 15 feet and a capability of handling up to 1/4 tons, the SNERP003S makes lifting heavy loads effortless and precise.

Transitioning to automated lifting solutions can drastically enhance productivity and reduce manual labor. The SNERP Electric Chain Hoist eliminates the stress of heavy lifting, allowing you to focus on getting the job done effectively. Its advanced technology ensures smooth operation, allowing for precise load control and movement. Perfect for industries such as construction and manufacturing, this hoist is designed to meet the rigorous demands of daily heavy lifting tasks.

• Impressive Lift Capacity: Capable of lifting loads up to 1/4 tons with ease.
• Heightened Lift Range: A maximum lift of 15 feet ensures versatility in various working environments.
• Push Trolley Included: Enhances maneuverability, making it simple to reposition the hoist as needed.
• Durable Construction: Built with high-quality materials to withstand the wear and tear of frequent use.
• Powerful Performance: Equipped with advanced technology for efficient operation under heavy loads.

Investing in the SNERP003S-15 HARRINGTON Electric Chain Hoist with Push Trolley means prioritizing safety and efficiency in your workplace. Its robust design and superior functionality ensure that you can trust this hoist for reliable performance time and again. Boost your productivity and streamline your operations with this exceptional lifting solution that stands out in the market. Don’t compromise on your lifting capabilities; choose the SNERP003S-15 HARRINGTON Electric Chain Hoist with Push Trolley and elevate your workspace today.

Product Specifications

.

Part Number:

SNERP003S-15

Color:

Yellow

Hoist Lift:

15 ft

Product:

Electric Chain Hoist, 500 lb, 15 ft, Push Trolley=Hoist Mount=Push Trolley

Includes:

Chain Container,, Push Trolley

Lift Speed:

14 fpm

Housing Width:

13 in

Manufacturers Warranty Length:

1 yr

Housing Depth:

6 5/8 in

Housing Length:

22 1/4 in

For Minimum Beam Flange Width:

2 1/4 in

For Maximum Beam Flange Width:

5 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

13 in

Body Depth:

6 5/8 in

For Minimum Beam Height:

3 3/16 in

Body Length:

22 1/4 in

Minimum Radius Curve:

43 5/16 in

Maximum Lifting Length:

15 ft

Controller Cord Length:

11 ft

Trolley Wheel Diameter:

3 1/5 in

Lifting Hook Opening Width:

29/32 in

Minimum Retracted Length:

15 13/32 in

Load Capacity:

500 lb

Minimum Between Hooks:

14 5/8 in

Motor HP:

0.34 hp

Phase:

1

Standards:

ANSI/ASME B30.16, ASME HST-1M

Voltage:

115/230V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Option

Control Cord:

11 ft

Amps @ Low Volts:

7.7 A

Number of Speeds:

1

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

Extreme-Duty, Fan-Cooled Motor, Heavy Cast-Iron Chain Guide, Friction Clutch, Oil Bath-Lubricated, Heat-Treated Gearing, Self-Adjusting Maintenance-Free Brake

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook

Fixed Lift Speed:

14 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Push Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

3/8 hp

Headroom:

14 19/32 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

500 lb

Current at Minimum Voltage:

7.7 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

3.9 A

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
