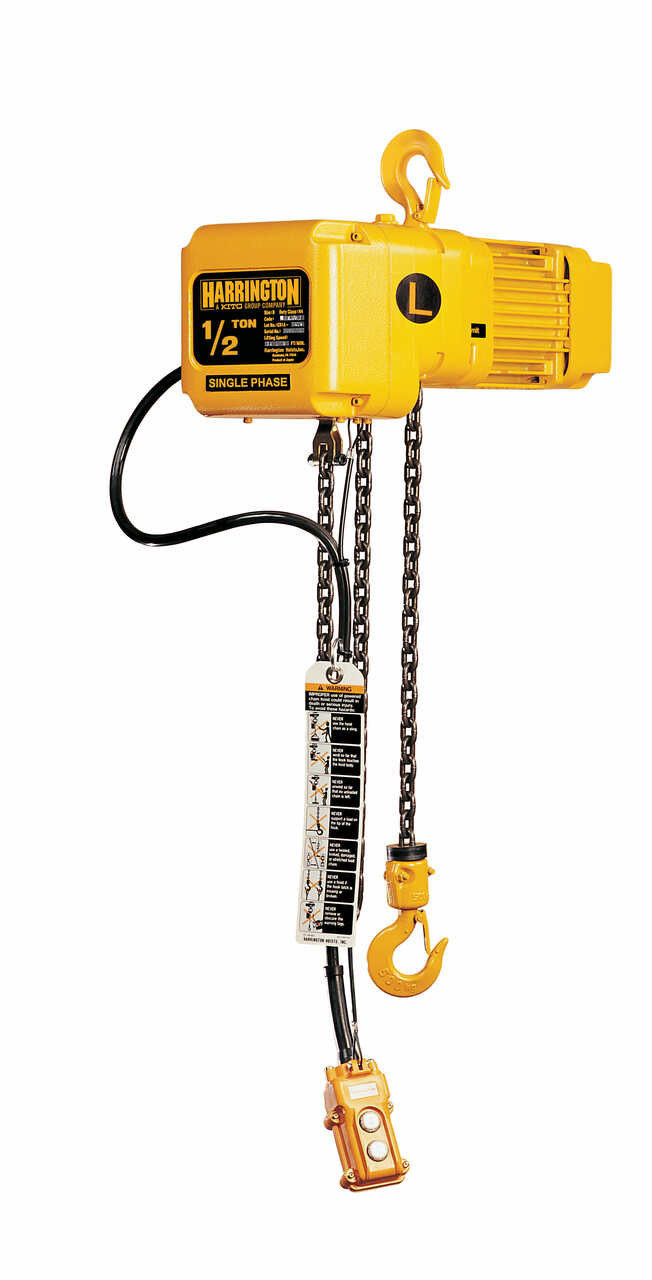

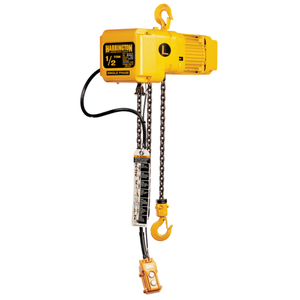

SNER Electric Chain Hoist 15' Lift-Capacity 1 Tons SNER010L Electric Chain Hoist HARRINGTON

Product Overview

The SNER010L-15 HARRINGTON SNER Electric Chain Hoist is the ultimate solution for heavy-duty lifting needs. Designed to deliver extreme duty performance, this electric chain hoist is built to withstand the toughest industrial environments. With a capacity range from 1 tons and a 15-foot lift height, it is perfect for a wide range of applications.Equipped with advanced features, this hoist ensures smooth and reliable operation. It operates efficiently with single-phase power, making it easy to use in various settings. Whether you need to lift heavy machinery or transport materials across your facility, this hoist delivers exceptional performance.Built for endurance, the SNER010L Electric Chain Hoist is designed to handle demanding tasks with ease. It offers reliable lifting and lowering operations, allowing you to maximize productivity. Say goodbye to manual lifting and hello to efficiency and productivity with this high-quality hoist.Investing in the SNER010L-15 HARRINGTON SNER Electric Chain Hoist means investing in power, durability, and efficiency. No matter the size or weight of your loads, this hoist will get the job done. With its solid construction and robust design, it is built to last and provide long-term value for your lifting applications.Don't settle for less when it comes to your lifting needs. Choose the SNER010L-15 HARRINGTON SNER Electric Chain Hoist and experience the performance you need for your heavy-duty applications. Trust in its reliable operation and enjoy the peace of mind that comes with using a top-notch hoist. Take your lifting capabilities to new heights with this exceptional electric chain hoist.

Product Specifications

.

Part Number:

SNER010L-15

Color:

Yellow

Hoist Lift:

15 ft

Product:

Electric Chain Hoist, 2,000 lb, 15 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container

Lift Speed:

7 fpm

Housing Width:

10 13/16 in

Manufacturers Warranty Length:

1 yr

Housing Depth:

7 1/2 in

Housing Length:

16 3/32 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

10 13/16 in

Body Depth:

7 1/2 in

For Minimum Beam Height:

Not Applicable

Body Length:

16 3/32 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

15 ft

Controller Cord Length:

11 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

1 3/16 in

Minimum Retracted Length:

16 3/32 in

Load Capacity:

2,000 lb

Minimum Between Hooks:

16 in

Motor HP:

0.6 hp

Phase:

1

Standards:

ASME B30.16, ASME HST-1, NFPA 70

Voltage:

115/230V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

No

Control Cord:

11 ft

Amps @ Low Volts:

16.9 A

Number of Speeds:

1

Trolley Configuration:

Hook Mounted

Trolley Speed:

Not Applicable

Features:

Extreme-Duty, Fan-Cooled Motor, Heavy Cast-Iron Chain Guide, Friction Clutch, Oil Bath-Lubricated, Heat-Treated Gearing, Self-Adjusting Maintenance-Free Brake

Material:

Die Cast Aluminum

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

7 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

5/8 hp

Headroom:

16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

2,000 lb

Current at Minimum Voltage:

16.9 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

8.5 A

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
