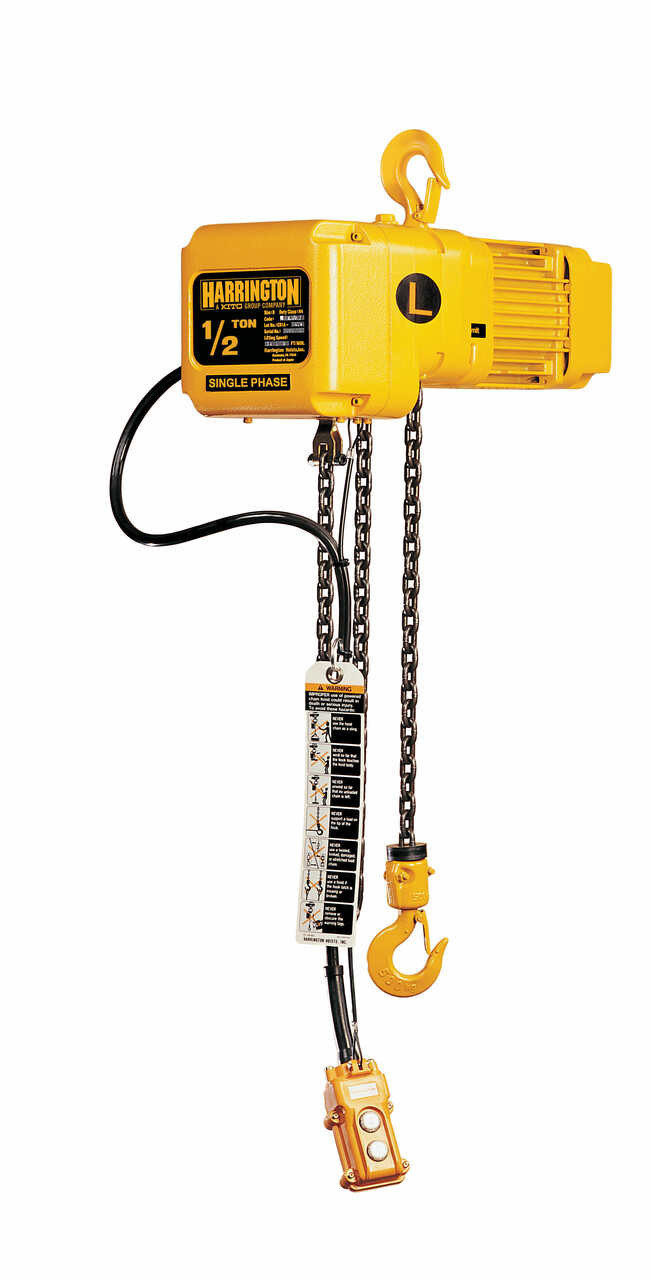

SNER Electric Chain Hoist 20' Lift-Capacity 1/2 Tons SNER005S Electric Chain Hoist HARRINGTON

Product Overview

The SNER005S-20 HARRINGTON SNER Electric Chain Hoist is a versatile and powerful tool that is designed to handle heavy-duty applications with ease. With its impressive lifting capacity ranging from 1/2 Tons this electric chain hoist can handle even the most demanding projects.One of the standout features of the SNER005S Electric Chain Hoist is its smooth and efficient operation. Whether you are lifting heavy machinery or moving materials, this hoist delivers exceptional performance that you can rely on. Plus, its single-phase power allows it to be used in a wide range of applications, making it a versatile solution for various projects.The 20-foot lift of the SNER005S Electric Chain Hoist provides enhanced flexibility and reach. This means that you can easily maneuver heavy loads and transport them effortlessly to their destination. Whether you are working in a warehouse, construction site, or any other industrial setting, this hoist offers the perfect lifting solution.When it comes to durability and reliability, Harrington is a brand that you can trust. The SNER005S-20 Electric Chain Hoist upholds this standard of excellence with its robust construction. This hoist is built to last, ensuring that it will withstand the test of time and provide long-lasting performance.The SNER005S-20 HARRINGTON SNER Electric Chain Hoist is the ultimate lifting companion for any heavy-duty application. Its outstanding performance, impressive lifting capacity, and reliable durability make it the ideal choice for professionals who require exceptional lifting power. Experience the difference with the SNER005S-20 and enjoy the ease and efficiency it offers for all your lifting needs.

Product Specifications

.

Part Number:

SNER005S-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 1,000 lb, 20 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container

Lift Speed:

15 fpm

Housing Width:

10 13/16 in

Manufacturers Warranty Length:

1 yr

Housing Depth:

7 1/2 in

Housing Length:

14 19/32 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

10 13/16 in

Body Depth:

7 1/2 in

For Minimum Beam Height:

Not Applicable

Body Length:

14 19/32 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

20 ft

Controller Cord Length:

16 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

29/32 in

Minimum Retracted Length:

14 19/32 in

Load Capacity:

1,000 lb

Minimum Between Hooks:

14 5/8 in

Motor HP:

0.6 hp

Phase:

1

Standards:

ASME B30.16, ASME HST-1, NFPA 70

Voltage:

115/230V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

No

Brake:

Pull Rotor Motor

Control Cord:

16 ft

Amps @ Low Volts:

16.9 A

Number of Speeds:

1

Trolley Configuration:

Hook Mounted

Trolley Speed:

Not Applicable

Features:

Extreme-Duty, Fan-Cooled Motor, Heavy Cast-Iron Chain Guide, Friction Clutch, Oil Bath-Lubricated, Heat-Treated Gearing, Self-Adjusting Maintenance-Free Brake

Material:

Die Cast Aluminum

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

15 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

5/8 hp

Headroom:

14 19/32 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

1,000 lb

Current at Minimum Voltage:

16.9 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

8.5 A

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
