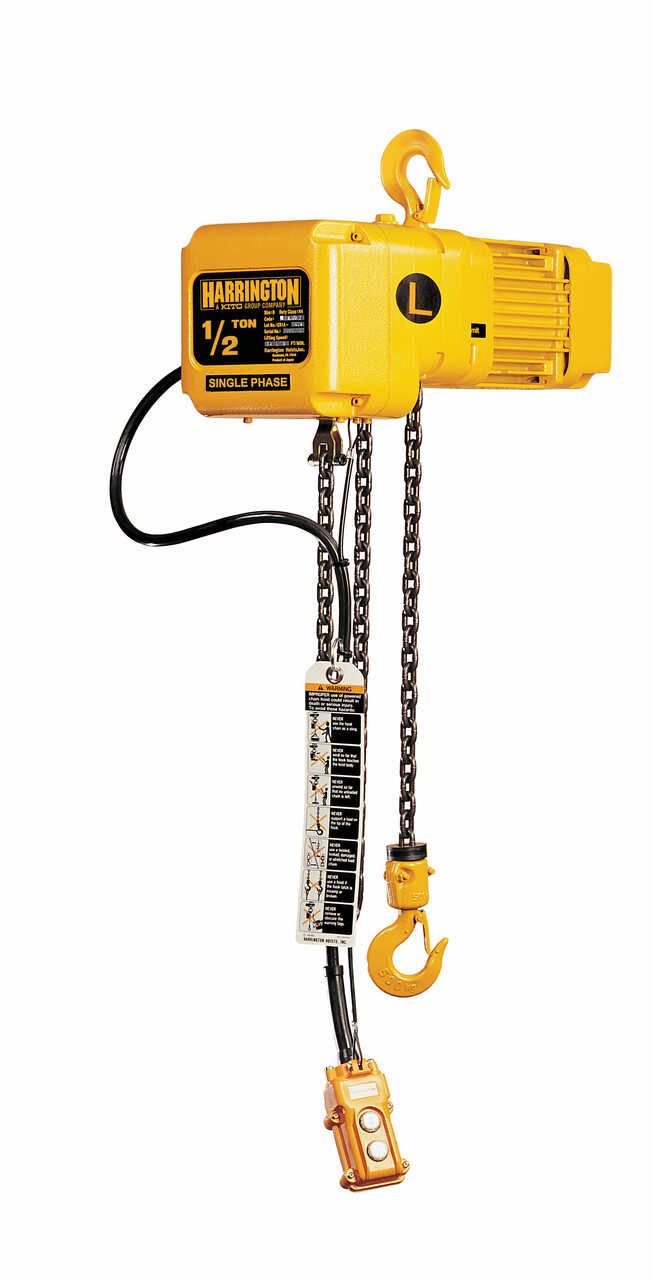

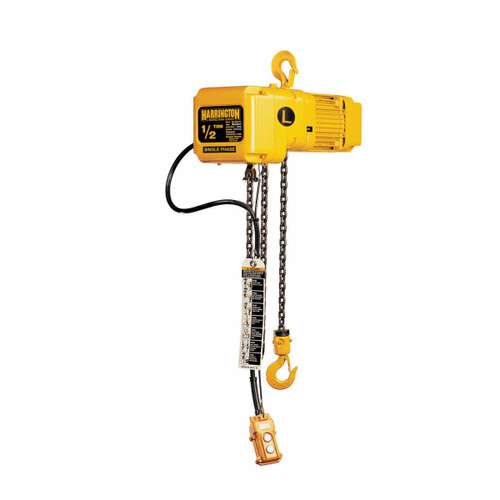

SNER Electric Chain Hoist 10' Lift-Capacity 1/2 Tons SNER005S Electric Chain Hoist HARRINGTON

Product Overview

The SNER Electric Chain Hoist 10' Lift-Capacity 1/2 Tons SNER005S HARRINGTON is your go-to solution for heavy lifting and lowering tasks in industrial environments. Constructed with precision engineering and advanced technology, this electric chain hoist combines efficiency with durability, making it the ultimate tool for tackling demanding applications.

Reliable and powerful, the SNER005S-10 operates on single-phase power, allowing for seamless integration into your existing setup. Whether you need to lift, lower, or position heavy materials swiftly and safely, this hoist is designed to enhance operational productivity and ensure that your lifting challenges are met without a hitch.

• 10' lift capacity for versatile applications
• Load capacity of 1/2 tons, perfect for various heavy-duty tasks
• Single-phase power source for efficient operation
• Compact and ergonomic design for handling in tight spaces
• Advanced technology for smooth operation and excellent control
• Dual braking system for added safety and security
• High-capacity overload clutch for enhanced protection during lifts
• Robust construction with high-quality materials for long-lasting performance
• Comprehensive warranty and excellent customer support included

Investing in the SNER005S-10 HARRINGTON Electric Chain Hoist not only boosts efficiency but also elevates safety standards in your workplace. The dual braking system safeguards your loads while the overload clutch prevents excessive weight from jeopardizing your operation. Designed for resilience, this hoist is built to withstand the rigors of demanding industrial settings, ensuring that it will remain a reliable asset for years to come.

In summary, the SNER005S-10 HARRINGTON SNER Electric Chain Hoist stands as an indispensable tool for professionals seeking enhanced productivity and safety. Take the next step in improving your heavy lifting operations by investing in the SNER005S-10 today, and experience unmatched reliability and performance in all your industrial applications.

Product Specifications

.

Part Number:

SNER005S-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 1,000 lb, 10 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container

Lift Speed:

15 fpm

Housing Width:

10 13/16 in

Manufacturers Warranty Length:

1 yr

Housing Depth:

7 1/2 in

Housing Length:

14 19/32 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

10 13/16 in

Body Depth:

7 1/2 in

For Minimum Beam Height:

Not Applicable

Body Length:

14 19/32 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

10 ft

Controller Cord Length:

6 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

29/32 in

Minimum Retracted Length:

14 19/32 in

Load Capacity:

1,000 lb

Minimum Between Hooks:

14 5/8 in

Motor HP:

0.6 hp

Phase:

1

Standards:

ASME B30.16, ASME HST-1, NFPA 70

Voltage:

115/230V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

No

Classification:

H4

Control Cord:

6 ft

Amps @ Low Volts:

16.9 A

Number of Speeds:

1

Trolley Configuration:

Hook Mounted

Trolley Speed:

Not Applicable

Features:

Extreme-Duty, Fan-Cooled Motor, Heavy Cast-Iron Chain Guide, Friction Clutch, Oil Bath-Lubricated, Heat-Treated Gearing, Self-Adjusting Maintenance-Free Brake

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

15 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

5/8 hp

Headroom:

14 19/32 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

1,000 lb

Current at Minimum Voltage:

16.9 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

8.5 A

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
