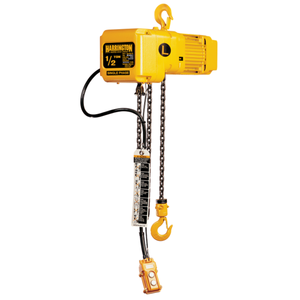

SNER Electric Chain Hoist 15' Lift-Capacity 1/2 Tons SNER005L Electric Chain Hoist HARRINGTON

Product Overview

The SNER005L-15 HARRINGTON SNER Electric Chain Hoist is a powerful and versatile solution for heavy-duty lifting. With a capacity range of 1/2 Tons, this hoist is perfect for those in need of extreme duty lifting. Say goodbye to struggling with heavy loads in elevated areas, as this hoist has a lift height of 15 feet, allowing for effortless reaching.Built to withstand the toughest conditions, the SNER005L-15 HARRINGTON SNER Electric Chain Hoist is constructed with durable materials and a robust design. You can trust this hoist to handle any challenge thrown its way and deliver exceptional performance day in and day out.Harrington is a name synonymous with reliability and durability in the industrial lifting equipment industry, and the SNER005L-15 HARRINGTON SNER Electric Chain Hoist upholds this reputation. With a long history of providing high-quality hoists, Harrington continues its commitment to excellence with this electric chain hoist.Upgrade your lifting operations today with the SNER005L-15 HARRINGTON SNER Electric Chain Hoist. Say goodbye to struggling with heavy loads and hello to effortless and efficient work. Don't settle for subpar hoists when you can have the best. Invest in the SNER005L-15 HARRINGTON SNER Electric Chain Hoist and experience the difference it can make in your lifting needs. Trust the tried and true, trust Harrington.

Product Specifications

.

Part Number:

SNER005L-15

Color:

Yellow

Hoist Lift:

15 ft

Product:

Electric Chain Hoist, 1,000 lb, 15 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley

Includes:

Chain Container

Lift Speed:

7 fpm

Housing Width:

9 15/16 in

Manufacturers Warranty Length:

1 yr

Housing Depth:

6 5/8 in

Housing Length:

14 in

For Minimum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

1 yr

Body Width:

9 15/16 in

Body Depth:

6 5/8 in

For Minimum Beam Height:

Not Applicable

Body Length:

14 in

Minimum Radius Curve:

Not Applicable

Maximum Lifting Length:

15 ft

Controller Cord Length:

11 ft

Trolley Wheel Diameter:

Not Applicable

Lifting Hook Opening Width:

29/32 in

Minimum Retracted Length:

14 in

Load Capacity:

1,000 lb

Minimum Between Hooks:

14 in

Motor HP:

0.34 hp

Phase:

1

Standards:

ASME B30.16, ASME HST-1, NFPA 70

Voltage:

115/230V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

No

Control Cord:

11 ft

Amps @ Low Volts:

7.7 A

Number of Speeds:

1

Trolley Configuration:

Hook Mounted

Trolley Speed:

Not Applicable

Features:

Extreme-Duty, Fan-Cooled Motor, Heavy Cast-Iron Chain Guide, Friction Clutch, Oil Bath-Lubricated, Heat-Treated Gearing, Self-Adjusting Maintenance-Free Brake

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

Not Applicable

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

7 fpm

Clutch Type:

Friction Clutch

Minimum Lift Speed:

Not Applicable

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Hook Mounted-No Trolley

Starts and Stops per Hour:

360

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

3/8 hp

Headroom:

14 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

1,000 lb

Current at Minimum Voltage:

7.7 A

Trolley Wheel Material:

Not Applicable

Current at Maximum Voltage:

3.9 A

Body Finish:

Enamel

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Non-Programmable
