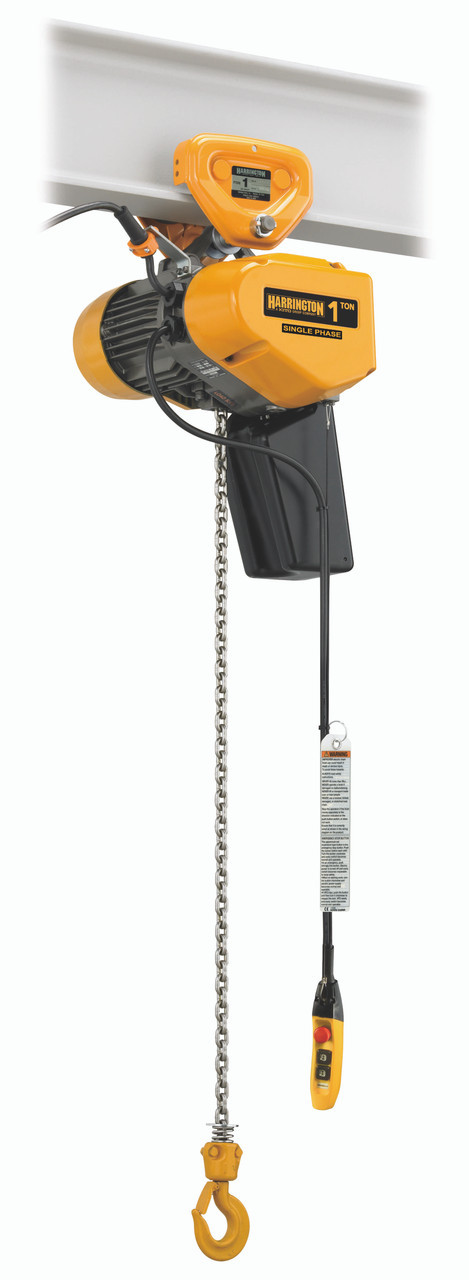

SEQP Electric Chain Hoist with Push Trolley 15' Lift-Capacity 1 Tons EQP010SD Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

The SEQP010SD-15 HARRINGTON SEQP Electric Chain Hoist with Push Trolley revolutionizes material handling with its superior power and efficiency. This electric chain hoist is designed for seamless transportation of heavy loads, significantly reducing manual labor and enhancing productivity. With a remarkable 15-foot lift capacity and a load capacity of up to 1 ton, it delivers precision lifting regardless of the weight or size of the load, making it an indispensable tool in any professional or industrial environment.

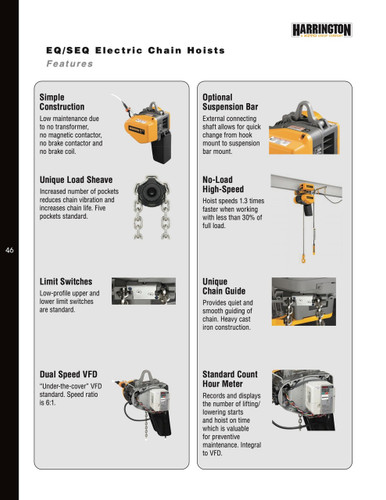

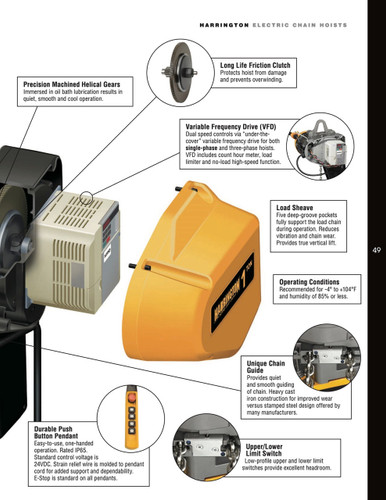

One of the standout features of the SEQP010SD-15 is its innovative dual-speed technology, utilizing VFD Control for unparalleled precision. This cutting-edge functionality allows operators to easily control the hoist's speed, maximizing both efficiency and safety during operation. Whether the task demands a slower speed for delicate handling or a faster pace for transporting heavy objects, this hoist adapts effortlessly to accommodate varying needs.

• 15-foot lift capacity for versatile applications
• 1-ton load capacity for heavy-duty lifting
• Dual-speed VFD control for precise operation
• Compact and ergonomic design for mobility in tight spaces
• High-quality construction for enhanced durability
• Rigorous testing ensures reliability under heavy use
• Ideal for construction sites, manufacturing facilities, and warehouses

Designed with durability in mind, the SEQP010SD-15 is constructed from premium materials, ensuring it can withstand the rigors of frequent and demanding use. Its robust design offers peace of mind, as this hoist has been rigorously tested to meet the challenges of day-to-day operations. The combination of strength and reliability establishes the SEQP010SD-15 as a trustworthy partner for all your material handling needs.

Investing in the SEQP010SD-15 HARRINGTON SEQP Electric Chain Hoist with Push Trolley is a game-changer for any operation. Say farewell to the grueling physical labor associated with heavy lifting and embrace the efficiency and convenience this electric hoist brings. Experience the reliability and power of one of the most exceptional material handling solutions on the market today and enhance your operations with ease and confidence.

Product Specifications

.

Part Number:

SEQP010SD-15

Color:

Yellow

Hoist Lift:

15 ft

Product:

Electric Chain Hoist, 2,000 lb, 15 ft, Push Trolley, Yellow=Hoist Mount=Push Trolley

Includes:

Chain Container

Lift Speed:

17/3.9 fpm

Housing Width:

15 29/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 39/64 in

Housing Length:

19 19/64 in

For Minimum Beam Flange Width:

2 1/4 in

For Maximum Beam Flange Width:

5 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

15 29/32 in

Body Depth:

9 5/8 in

For Minimum Beam Height:

3 9/16 in

Body Length:

19 5/16 in

Minimum Radius Curve:

51 1/4 in

Maximum Lifting Length:

15 ft

Controller Cord Length:

11 ft

Trolley Wheel Diameter:

3 1/4 in

Lifting Hook Opening Width:

1 3/16 in

Minimum Retracted Length:

19 5/16 in

Load Capacity:

2,000 lb

Minimum Between Hooks:

19 5/16 in

Motor HP:

1.3 hp

Phase:

1

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

115V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

11 ft

Amps @ Low Volts:

19 A

Number of Speeds:

2

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

No-Load High Speed, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

17 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

3.9 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Push Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1 1/4 hp

Headroom:

19 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

2,000 lb

Current at Minimum Voltage:

19.5 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

0

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
