SEQP Electric Chain Hoist with Push Trolley 20' Lift-Capacity 1/2 Tons EQP005SD Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

The SEQP005SD-20 HARRINGTON SEQP Electric Chain Hoist with Push Trolley is engineered to provide an unparalleled lifting solution for industrial applications. With an impressive 20' lift capacity and the ability to handle up to 1/2 tons, this electric chain hoist is your go-to equipment for a multitude of heavy lifting tasks. From warehouses to construction sites, experience the ease and efficiency of moving heavy loads with confidence.

Equipped with advanced dual-speed VFD control, the SEQP005SD-20 allows for precise and controlled lifting and lowering of various loads. This innovative feature is vital for adjusting speed according to the demands of any task, ensuring accuracy during operations. Whether you require swift load movements or delicate handling, this hoist delivers optimal performance tailored to your needs.

• Heavy-Lift Capacity: Capable of lifting up to 1/2 tons, perfect for varying industrial applications.
• 20' Lift Height: Generous vertical reach to accommodate tall structures and high-load requirements.
• Dual-Speed VFD Control: Provides precise control over speed, enhancing operational flexibility.
• Robust Push Trolley: Designed for heavy-duty use, ensuring smooth advancement along the rail for effortless load management.
• Durability and Reliability: Manufactured by HARRINGTON, a well-respected name in lifting solutions, ensuring high quality and performance.
• Efficient Load Movement: Reduces manual effort, enabling simple and safe relocation of heavy items within your facility.
• Cost-Effective Solution: Investing in this equipment enhances productivity and operational efficiency, improving your bottom line.

Choosing the SEQP005SD-20 HARRINGTON SEQP Electric Chain Hoist with Push Trolley means prioritizing safety and effectiveness in your lifting operations. Its robust construction promises longevity without compromising performance, making it an indispensable asset for businesses committed to excellence. Elevate your industrial lifting capabilities today; the SEQP005SD-20 is the tool you need to transform your workflow and boost productivity seamlessly.

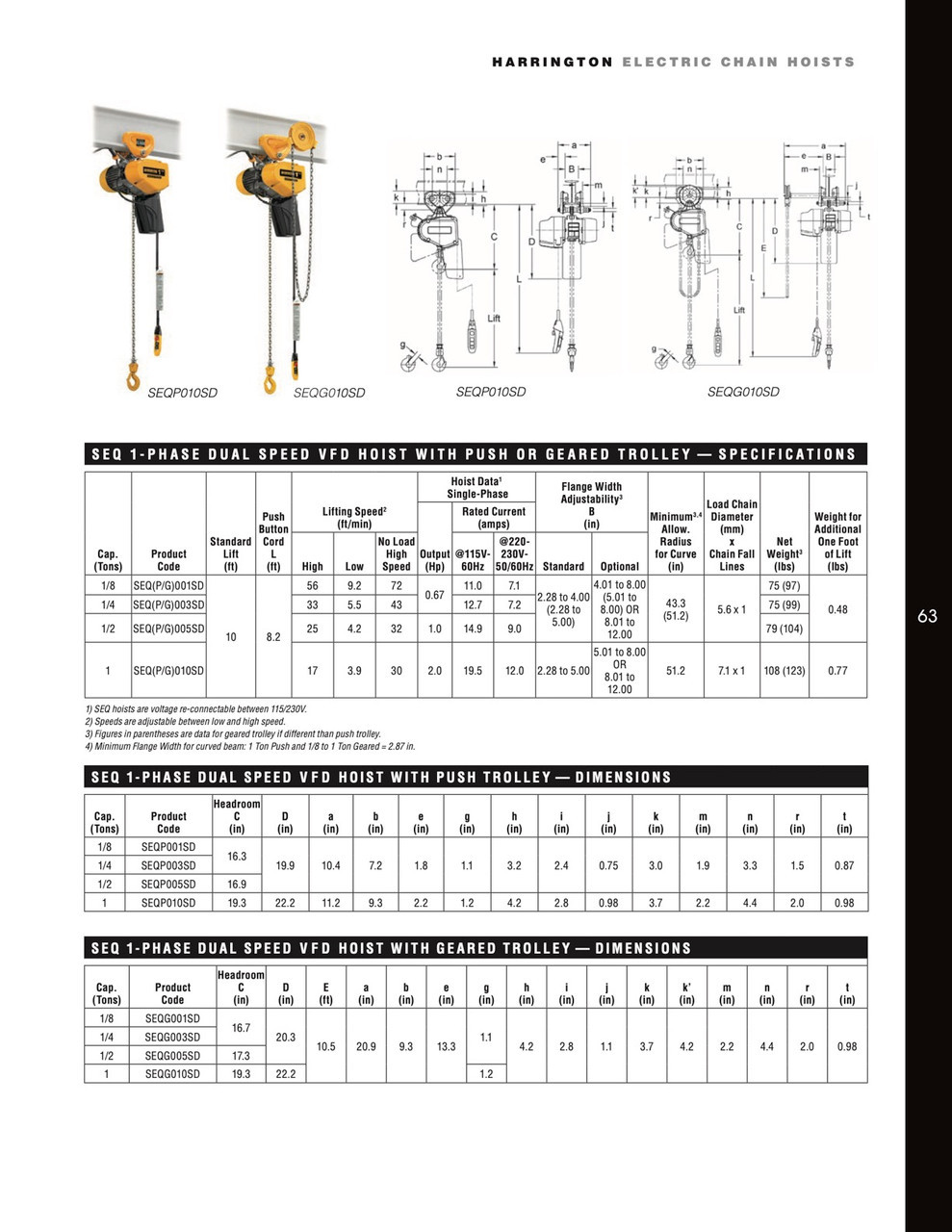

Product Specifications

.

Part Number:

SEQP005SD-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 1,000 lb, 20 ft, Push Trolley, Yellow=Hoist Mount=Push Trolley

Includes:

Chain Container

Lift Speed:

25/4.2 fpm

Housing Width:

14 13/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 7/64 in

Housing Length:

16 29/32 in

For Minimum Beam Flange Width:

2 1/2 in

For Maximum Beam Flange Width:

4 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

14 13/32 in

Body Depth:

9 1/8 in

For Minimum Beam Height:

3 in

Body Length:

16 29/32 in

Minimum Radius Curve:

43 1/4 in

Maximum Lifting Length:

20 ft

Controller Cord Length:

16 ft

Trolley Wheel Diameter:

3 1/4 in

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

16 29/32 in

Load Capacity:

1,000 lb

Minimum Between Hooks:

16 7/8 in

Motor HP:

1 hp

Phase:

1

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

115V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

16 ft

Amps @ Low Volts:

14.8 A

Number of Speeds:

2

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

No-Load High Speed, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

25 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

4.2 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Programmable by Internal Controls=Mount Type=Push Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1 hp

Headroom:

16 13/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

1,000 lb

Current at Minimum Voltage:

14.9 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

0.375

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
