SEQP Electric Chain Hoist with Push Trolley 10' Lift-Capacity 1/2 Tons EQP005SD Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

The SEQP005SD-10 HARRINGTON SEQP Electric Chain Hoist with Push Trolley is a must-have tool for any industry that requires heavy load lifting and transportation. This electric chain hoist is designed to handle even the toughest of jobs effortlessly with its 10' lift capacity and weight Capacity ranging from 1/2 Tons.Equipped with dual speed (VFD control) technology, this hoist provides precise control and smooth operation. Whether you need to lift heavy equipment in a warehouse, move materials in a workshop, or transport loads at a construction site, this hoist will get the job done efficiently and safely.The PT push trolley included with this hoist allows for quick and easy movement of materials. It glides seamlessly along the beam, providing an economical solution for load transportation. By combining the hoist and trolley, you can optimize your work efficiency and streamline your operations.Durability and reliability are paramount in heavy load transportation, and the SEQP005SD-10 HARRINGTON SEQP Electric Chain Hoist with Push Trolley meets these requirements. Crafted with high-quality materials and engineered for long-lasting performance, this hoist is built to withstand the rigors of demanding work environments. It is a tool you can rely on to consistently deliver outstanding results.Safety is also a top priority with this hoist. It features a range of safety features, including a motor thermal protection device and a load limiter, to ensure safe operation and prevent accidents. By investing in this hoist, you are investing in the well-being and protection of your team.When it comes to load transportation, efficiency and productivity are crucial. The SEQP005SD-10 HARRINGTON SEQP Electric Chain Hoist with Push Trolley is designed to help you achieve just that. With its powerful performance, precise control, and reliable operation, this hoist is the top choice for professionals who demand safe and efficient load transportation. Invest in the SEQP005SD-10 HARRINGTON SEQP Electric Chain Hoist with Push Trolley and experience the difference it can make in your operations.

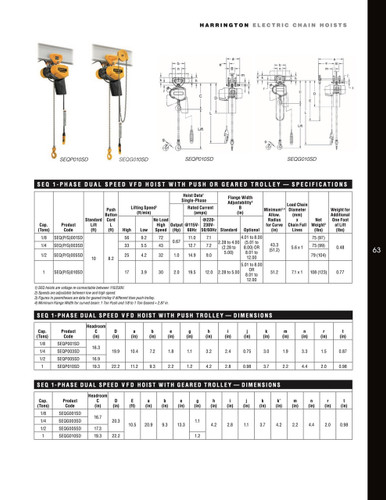

Product Specifications

.

Part Number:

SEQP005SD-10

Color:

Yellow

Hoist Lift:

10 ft

Product:

Electric Chain Hoist, 1,000 lb, 10 ft, Push Trolley, Yellow=Hoist Mount=Push Trolley

Includes:

Chain Container

Lift Speed:

25/4.2 fpm

Housing Width:

14 13/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 7/64 in

Housing Length:

16 29/32 in

For Minimum Beam Flange Width:

2 1/2 in

For Maximum Beam Flange Width:

4 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

14 13/32 in

Body Depth:

9 1/8 in

For Minimum Beam Height:

3 in

Body Length:

16 29/32 in

Minimum Radius Curve:

43 1/4 in

Maximum Lifting Length:

10 ft

Controller Cord Length:

6 ft

Trolley Wheel Diameter:

3 1/4 in

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

16 29/32 in

Load Capacity:

1,000 lb

Minimum Between Hooks:

16 7/8 in

Motor HP:

1 hp

Phase:

1

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

115V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

6 ft

Amps @ Low Volts:

14.8 A

Number of Speeds:

2

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

No-Load High Speed, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

25 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

4.2 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Push Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1 hp

Headroom:

16 13/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

1,000 lb

Current at Minimum Voltage:

14.9 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

0.375

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
