Product Overview

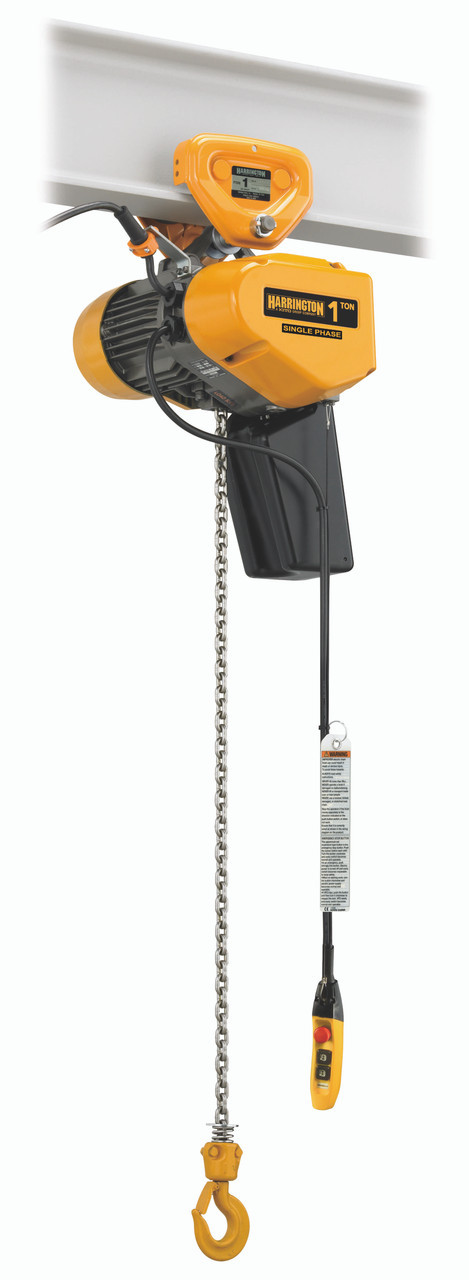

The SEQP003SD-20 HARRINGTON SEQP Electric Chain Hoist with Push Trolley is a must-have for any business or operation that requires heavy load transportation. With its 20' lift capacity, this hoist is capable of handling loads ranging from 1/4 Tons, making it suitable for a variety of tasks. What sets this hoist apart from others is its dual speed VFD control, allowing for easy adjustment of the speed to match your specific needs. Whether you need a slow and precise movement or a fast and efficient transport, this hoist can deliver it all.The push trolley feature of this hoist is designed to provide smooth and seamless movement. With its efficient design, you can effortlessly transport your loads without any hassle. No more struggling with heavy loads or worrying about accidents. This hoist ensures a safe and efficient lifting solution.Durability and reliability are two key factors in any lifting equipment, and the SEQP003SD-20 HARRINGTON SEQP Electric Chain Hoist with Push Trolley delivers on both fronts. Built with high-quality materials, this hoist is made to withstand heavy usage and last for years to come. You can trust this hoist to consistently perform at its best and handle your lifting and transportation needs with ease.Say goodbye to the days of manual heavy lifting and hello to the convenience and efficiency of the SEQP003SD-20 HARRINGTON SEQP Electric Chain Hoist with Push Trolley. This hoist is perfect for industrial settings, construction sites, warehouses, and any other environment where heavy loads need to be moved. Invest in the SEQP003SD-20 HARRINGTON SEQP Electric Chain Hoist with Push Trolley today and experience the benefits of a reliable and efficient lifting solution. Don't let heavy loads slow you down-let this hoist do the heavy lifting for you.Product Specifications
.Product Videos
Videos Hide Videos Show Videos
Custom Field
Part Number SEQP003SD-20
Color Yellow
Hoist Lift 20 ft
Product Electric Chain Hoist, 500 lb., 20 ft, Push Trolley, Yellow=Hoist Mount=Push Trolley
Includes Chain Container
Lift Speed 33/5.5 fpm
Housing Width 14 13/32 in
Manufacturers Warranty Length 3 yr
Housing Depth 9 7/64 in
Housing Length 16 19/64 in
For Minimum Beam Flange Width 2 1/2 in
For Maximum Beam Flange Width 4 in
For Maximum Beam Height Not Applicable
MFR Warranty Length 3 yr
Body Width 14 13/32 in
Body Depth 9 1/8 in
For Minimum Beam Height 3 in
Body Length 16 5/16 in
Minimum Radius Curve 43 1/4 in
Maximum Lifting Length 20 ft
Controller Cord Length 16 ft
Trolley Wheel Diameter 3 1/4 in
Lifting Hook Opening Width 1 3/32 in
Minimum Retracted Length 16 5/16 in
Load Capacity 500 lb.
Minimum Between Hooks 16 5/16 in
Motor HP 0.67 hp
Phase 1
Standards ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A
Voltage 115V
Fits Brand Harrington Hoists Inc
Lubrication Oil Bath
Reeving 1
Thermal Protection Yes
Control Cord 16 ft
Amps @ Low Volts 12.3 A
Number of Speeds 2
Trolley Configuration Push Trolley
Trolley Speed Not Applicable
Features No-Load High Speed, Unique Chain Guide, Variable Frequency Drive (VFD)
Lifting Hook Material Carbon Steel
Includes Clutch Clutch Included
Overload Protection Included Yes
Brake Type Pull Rotor
Chain Grade Grade 80
Maximum Lift Speed 33 fpm
Included Components Chain Container, Pendant, Safety Latch Hook
Fixed Lift Speed Not Applicable
Clutch Type Friction
Minimum Lift Speed 5.5 fpm
Pendant IP Rating IP65
Chain Finish Nickel Plated
Controls Push Button Pendant=Mount Type=Push Trolley
Starts and Stops per Hour 120, 240
Duty Classification H4
Maximum Pulling Capacity Not Applicable
Number of Reeves 1
Motor Horsepower 5/8 hp
Headroom 16 5/16 in
Includes Brake Brake Included
For Outdoor Use Yes
Hoist IP Rating IP55
Lifting Hook Type Swivel Hook with Safety Latch
Maximum Lifting Capacity 500 lb
Current at Minimum Voltage 12.7 A
Trolley Wheel Material Steel
Current at Maximum Voltage 7.2 A
Body Finish Epoxy Painted
Number of Load Chains 1
Body Material Aluminum
Trolley IP Rating Not Applicable
Programmable Programmable by Internal Controls
