SEQP Electric Chain Hoist with Push Trolley 20' Lift-Capacity 1/8 Tons EQP001SD Electric Chain Hoist with Push Trolley HARRINGTON

Product Overview

Upgrade your lifting capabilities with the SEQP001SD-20 HARRINGTON SEQP Electric Chain Hoist with Push Trolley. This reliable and efficient hoist is designed to effortlessly transport heavy loads with its 1/8 Tons Capacity and 20' lift.The SEQP001SD electric chain hoist features a dual-speed VFD control, ensuring precision and control during operation. This advanced control allows you to easily adjust the lifting speed to match the specific requirements of your task, improving safety and productivity.The hoist also comes with a push trolley, which makes it even easier to move your loads. The trolley is equipped with smooth-rolling wheels and a reliable brake system, ensuring smooth and controlled movement. This combination of the electric chain hoist and push trolley provides an easy and economical solution for moving your loads with ease.Whether you're in a warehouse, workshop, or construction site, this electric chain hoist is a must-have for enhanced productivity and safety. Its compact design and sturdy construction make it suitable for various lifting applications.Additionally, the SEQP001SD-20 HARRINGTON SEQP Electric Chain Hoist with Push Trolley is built to last. It is made from high-quality materials and undergoes rigorous testing to ensure maximum durability and reliability. You can rely on this hoist to withstand heavy use and perform consistently over time.Invest in the SEQP001SD-20 HARRINGTON SEQP Electric Chain Hoist with Push Trolley today and experience a new level of efficiency in your lifting tasks. With its powerful lifting capabilities, precise control, and easy maneuverability, this hoist will greatly improve your workflow and make your lifting operations safer and more efficient.

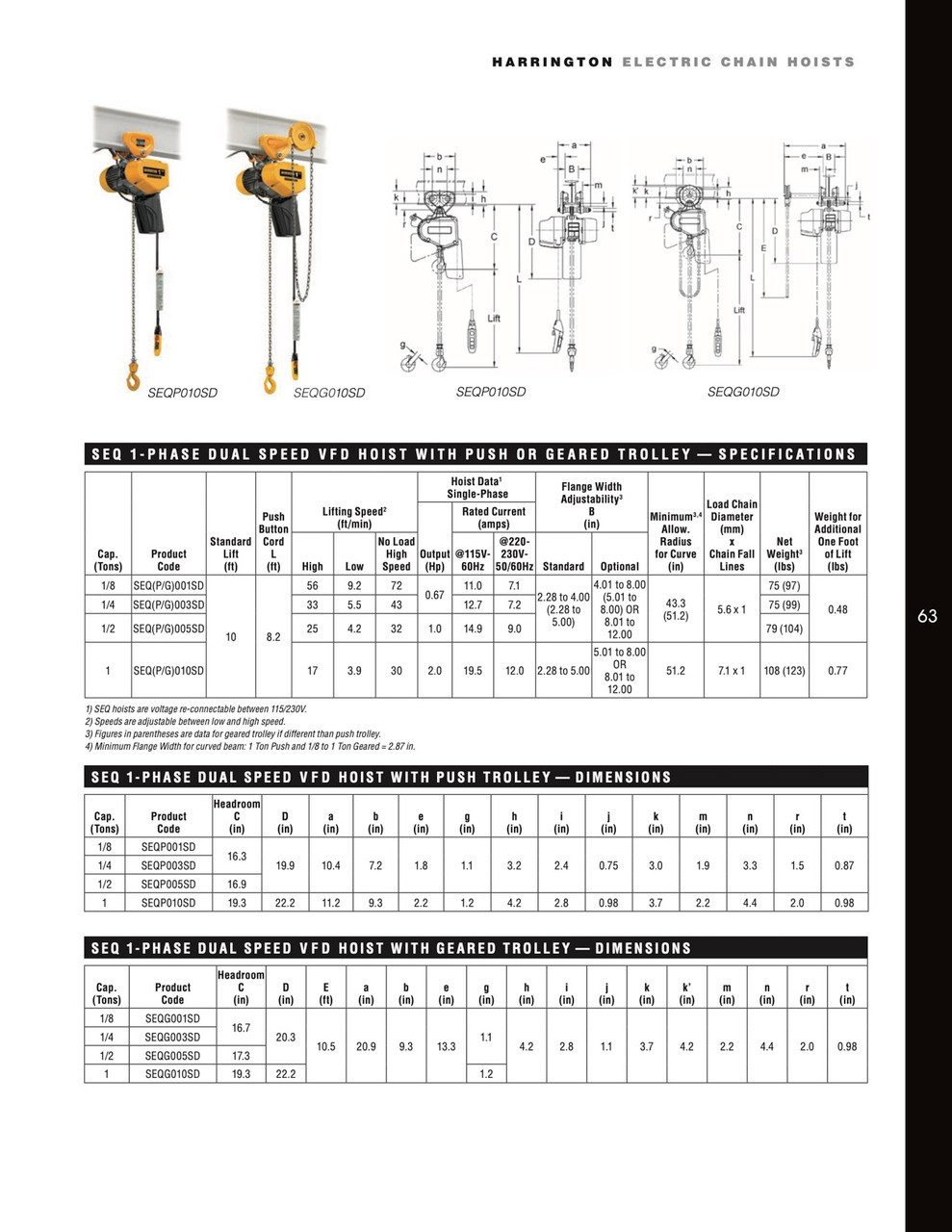

Product Specifications

.

Part Number:

SEQP001SD-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 250 lb, 20 ft, Push Trolley, Yellow=Hoist Mount=Push Trolley

Includes:

Chain Container

Lift Speed:

56/9.3 fpm

Housing Width:

14 13/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 7/64 in

Housing Length:

16 19/64 in

For Minimum Beam Flange Width:

2 1/2 in

For Maximum Beam Flange Width:

4 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

14 13/32 in

Body Depth:

9 1/8 in

For Minimum Beam Height:

3 in

Body Length:

16 5/16 in

Minimum Radius Curve:

43 1/4 in

Maximum Lifting Length:

20 ft

Controller Cord Length:

16 ft

Trolley Wheel Diameter:

3 3/4 in

Lifting Hook Opening Width:

1 3/32 in

Minimum Retracted Length:

16 5/16 in

Load Capacity:

250 lb

Minimum Between Hooks:

16 5/16 in

Motor HP:

0.67 hp

Phase:

1

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

115V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control Cord:

16 ft

Amps @ Low Volts:

10.8 A

Number of Speeds:

2

Trolley Configuration:

Push Trolley

Trolley Speed:

Not Applicable

Features:

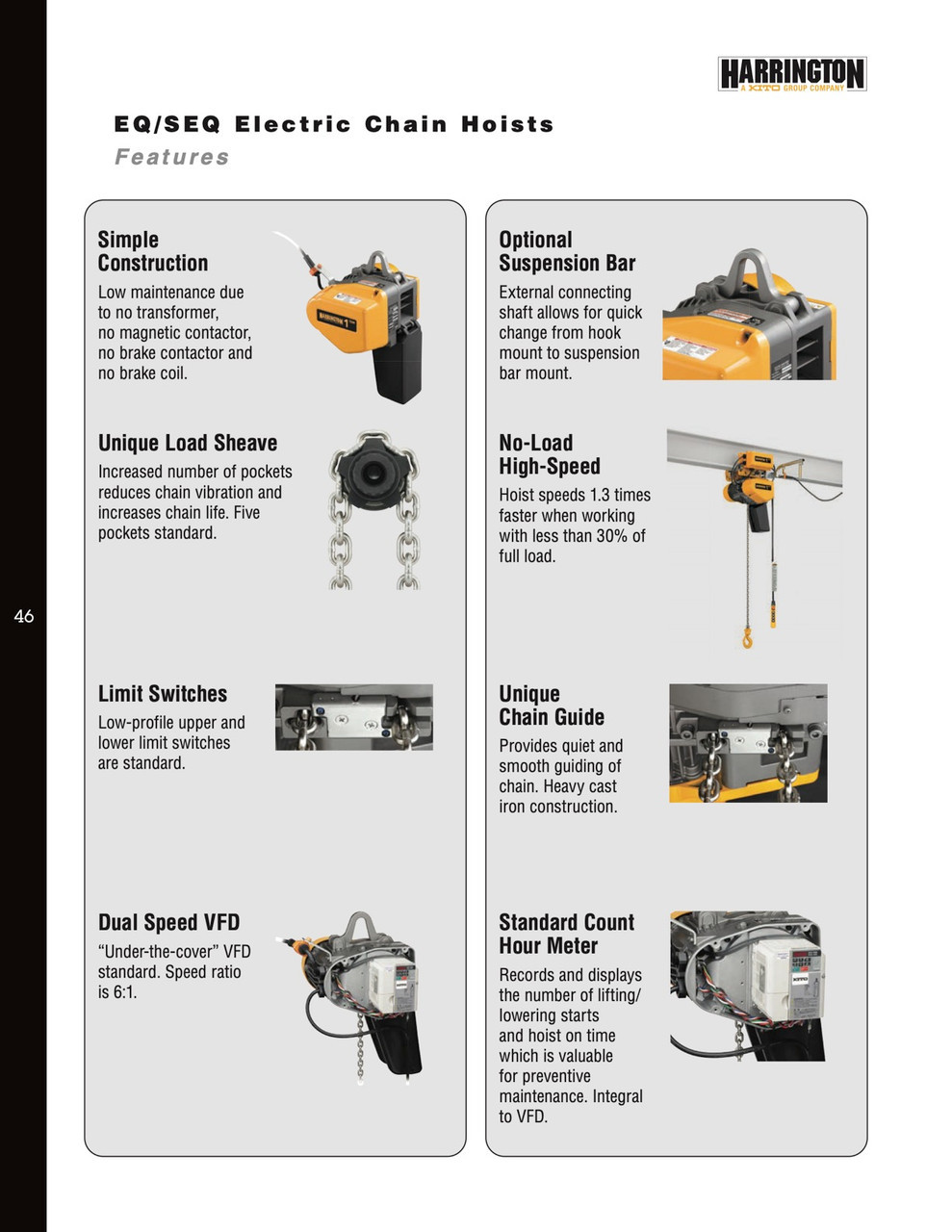

No-Load High Speed, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

56 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

9.3 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Programmable by Internal Controls=Mount Type=Push Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

5/8 hp

Headroom:

16 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

250 lb

Current at Minimum Voltage:

0.458333333333333

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

7.1 A

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
