Product Overview

The SEQG010SD-20 HARRINGTON Electric Chain Hoist with Geared Trolley is engineered to redefine lifting excellence across various industries. Offering a robust lift capacity of 1 ton, this electric chain hoist is an essential tool for warehouses, construction sites, and manufacturing facilities. Designed with user-friendliness in mind, it seamlessly integrates a dual-speed VFD control, ensuring precise handling of heavy loads. This feature allows operators to adjust lifting speeds according to their requirements, enhancing both safety and efficiency while improving overall workflow.

This model is equipped with an integrated geared trolley, designed for smooth and effortless movement along the track. The trolley ensures a stable and controlled lifting experience, mitigating the risk of sudden jolts or uneven motion that can lead to accidents or potential damage to the load. Its versatile capabilities make it an ideal solution for lifting heavy machinery, equipment, and various materials.

Constructed from high-quality materials, the SEQG010SD-20 hoist promises durability and longevity, capable of withstanding demanding conditions without compromising performance. Whether in busy warehouse settings or rigorous construction environments, you can trust this hoist to deliver consistent results, lifting the heaviest of loads with confidence.

The SEQG010SD-20 HARRINGTON Electric Chain Hoist is not just a tool, but an investment in productivity and efficiency. By integrating seamless operation, precise control, and exceptional durability into one powerful unit, it elevates your lifting tasks to unprecedented heights. Experience the difference that this top-tier hoist brings to your workflow, enhancing operational capabilities and ensuring that heavy lifting is no longer an obstacle, but a straightforward task. Upgrade your lifting solutions and embrace superior performance with the SEQG010SD-20 today.

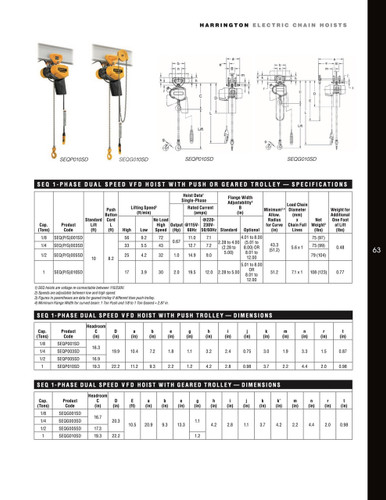

Product Specifications

.

Part Number:

SEQG010SD-20

Color:

Yellow

Hoist Lift:

20 ft

Product:

Electric Chain Hoist, 2,000 lb, 20 ft, Geared Trolley, Yellow=Hoist Mount=Geared Trolley

Includes:

Chain Container

Lift Speed:

17/3.9 fpm

Housing Width:

15 29/32 in

Manufacturers Warranty Length:

3 yr

Housing Depth:

9 39/64 in

Housing Length:

19 19/64 in

For Minimum Beam Flange Width:

2 1/4 in

For Maximum Beam Flange Width:

5 in

For Maximum Beam Height:

Not Applicable

MFR Warranty Length:

3 yr

Body Width:

15 29/32 in

Body Depth:

9 5/8 in

For Minimum Beam Height:

3 9/16 in

Body Length:

19 5/16 in

Minimum Radius Curve:

51 1/4 in

Maximum Lifting Length:

20 ft

Controller Cord Length:

16 ft

Trolley Wheel Diameter:

4 1/4 in

Lifting Hook Opening Width:

1 3/16 in

Minimum Retracted Length:

19 5/16 in

Load Capacity:

2,000 lb

Minimum Between Hooks:

19 5/16 in

Motor HP:

1.3 hp

Phase:

1

Standards:

ASME HST-4, C22.2 No.33/14-13/66, CSA, UL 508A

Voltage:

115V

Fits Brand:

Harrington Hoists Inc

Lubrication:

Oil Bath

Reeving:

1

Thermal Protection:

Yes

Control:

16 ft

Control Cord:

16 ft

Finish:

Epoxy Painted

Amps @ Low Volts:

19 A

Number of Speeds:

2

Trolley Configuration:

Geared Trolley

Trolley Speed:

Not Applicable

Features:

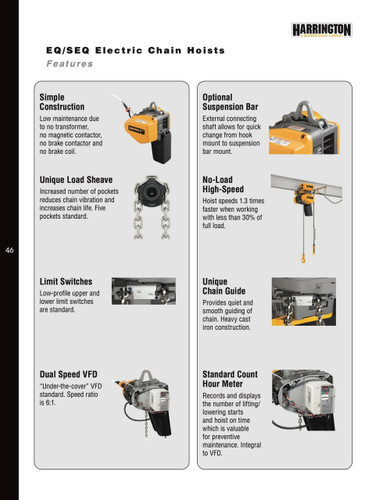

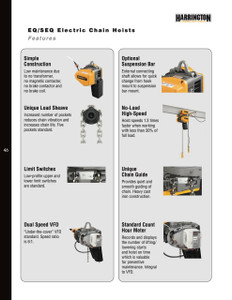

No-Load High Speed, Self-Adjusting Maintenance-Free Brake, Unique Chain Guide, Variable Frequency Drive (VFD)

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Brake Type:

Pull Rotor

Chain Grade:

Grade 80

Maximum Lift Speed:

17 fpm

Included Components:

Chain Container, Pendant, Safety Latch Hook

Fixed Lift Speed:

Not Applicable

Clutch Type:

Friction

Minimum Lift Speed:

3.9 fpm

Pendant IP Rating:

IP65

Chain Finish:

Nickel Plated

Controls:

Push Button Pendant=Mount Type=Geared Trolley

Starts and Stops per Hour:

120, 240

Duty Classification:

H4

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Motor Horsepower:

1 1/4 hp

Headroom:

19 5/16 in

Includes Brake:

Brake Included

For Outdoor Use:

Yes

Hoist IP Rating:

IP55

Lifting Hook Type:

Swivel Hook with Safety Latch

Maximum Lifting Capacity:

2,000 lb

Current at Minimum Voltage:

19.5 A

Trolley Wheel Material:

Steel

Current at Maximum Voltage:

0

Body Finish:

Epoxy Painted

Number of Load Chains:

1

Body Material:

Aluminum

Trolley IP Rating:

Not Applicable

Programmable:

Programmable by Internal Controls
